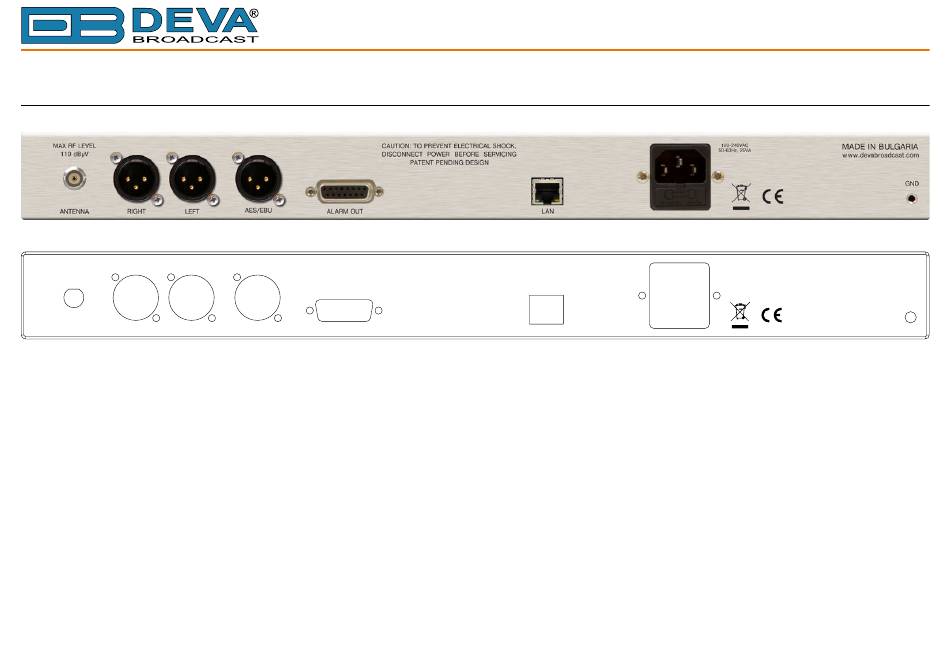

REAR PANEL

MAX RF LEVEL
110 dB V µ
7 6
8
ANTENNA RIGHT LEFT
1. Mains connector, 110-240VAC, IEC-320 C14 type;
2. Fuse holder;
3. Ethernet T-BASE10/100 RJ45;
4. GPO – Opto-isolated, Female D-Sub 15 pins.
5. Audio AES/EBU Output - XLR;
6. Audio Left Output - XLR;
7. Audio Right Output - XLR;
8. RF Input 1 (Antenna) - BNC;
CAUTION: TO PREVENT ELECTRICAL SHOCK,
DISCONNECT POWER BEFORE SERVICING
PATENT PENDING DESIGN
5
4
AES/EBU
AL ARM OUT
3
L AN
- 14 -
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria
Tel: +359 56 820027, Fax: +359 56 836700
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com
100-240VAC
50-63Hz, 25VA
1
2
MADE IN BULGARIA
w w w.devabroadcast.com
GND
