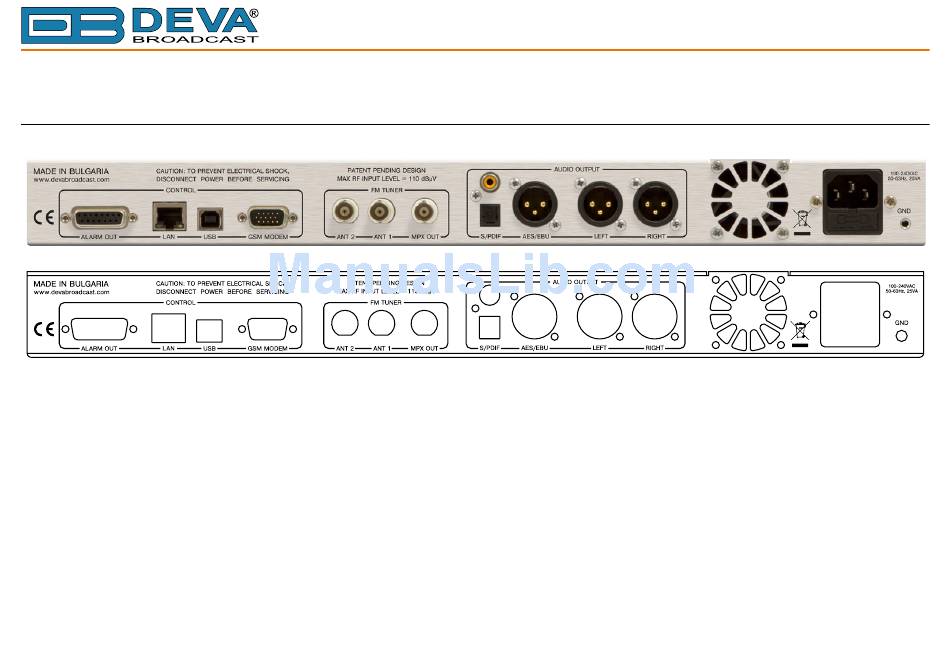

REAR PANEL

1. Mains connector, 110-240VAC, IEC-320 C14 type;

2. Fuseholder – 1A;

3. Audio Left Output - XLR;

4. Audio Right Output - XLR;

5. Audio AES/EBU Output - XLR;

6. Audio SPDIF Output - RCA;

7. Audio Optical Output - TOSLINK

8. MPX Output - BNC;

9. RF Input 1 (Antenna 1) - BNC;

10. RF Input 2 (Antenna 2) - BNC;

11. Ethernet T-BASE10/100 RJ45;

12. USB – type B;

13. GSM Modem – Male D-Sub 15 pins High Density;

14. GPO – Optoisolated, Female D-Sub 15 pins;

- 17 -
