ETHM-1 Plus

ETHERNET COMMUNICATION MODULE

The ETHM-1 Plus module enables the INTEGRA Plus, INTEGRA and VERSA alarm control

panels to communicate via the Ethernet network.

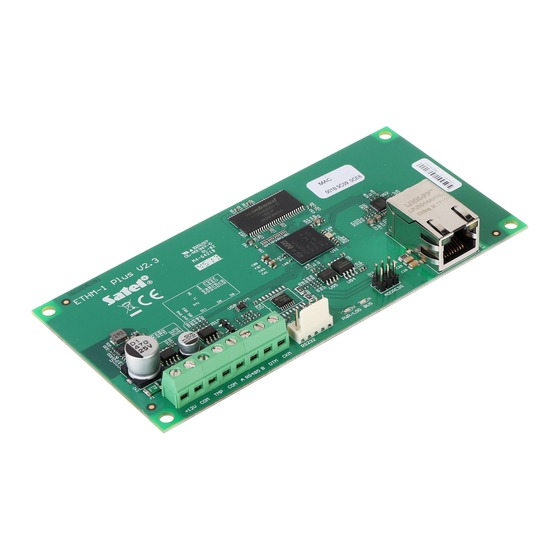

1. Electronics Board

terminals:

- +12 V DC power input.

+12V

- common ground.

COM

- tamper input (NC) – if not used, it should be shorted to common ground.

TMP

A RS485 B - terminals provided for future applications (RS-485).

- data (communication bus).

DTM

- clock (communication bus).

CKM

RS-232 port.

PWR/LOG LED:

OK – power OK,

Quick installation guide

Full manual is available on www.satel.eu

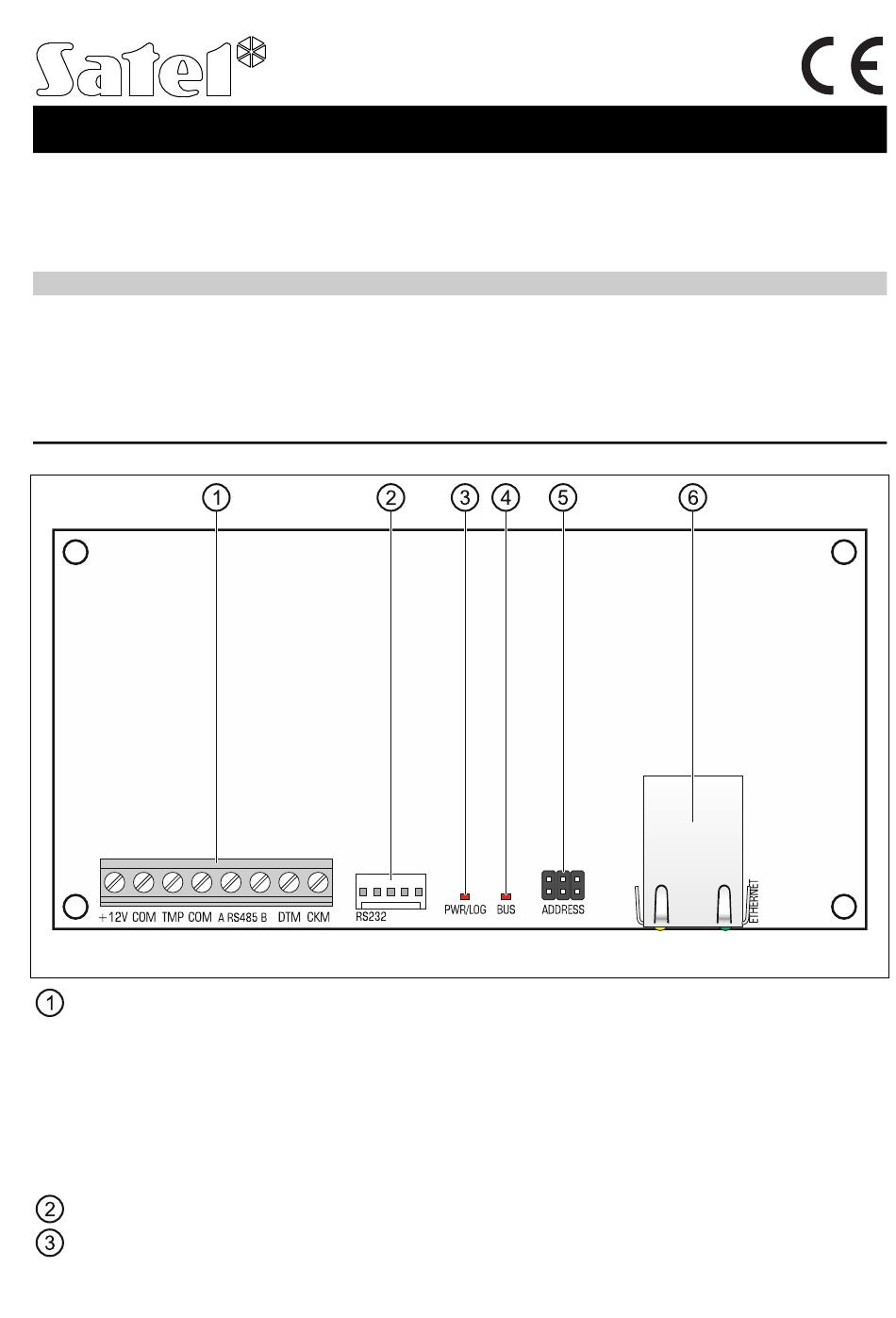

Fig. 1. Module electronics board.

ethm1_plus_sii_en 06/16

Table of Contents

Do you have a question about the ETHM-1 Plus and is the answer not in the manual?

Page 1 ETHERNET COMMUNICATION MODULE ethm1_plus_sii_en 06/16 Quick installation guide Full manual is available on www.satel.eu The ETHM-1 Plus module enables the INTEGRA Plus, INTEGRA and VERSA alarm control panels to communicate via the Ethernet network. 1. Electronics Board Fig. 1. Module electronics board.
Page 2 SATEL blinking – control panel being programmed or operated by means of the module. BUS LED – blinking LED indicates that data exchange with the control panel is in progress. pins for setting the module address (see “Setting address”). RJ-45 connector for Ethernet network. It is provided with two LEDs: green –...
Page 3 INTEGRA with connector socket of RJ / INTEGRA Plus type: RJ/PIN5 (Fig. 4) VERSA: PIN5/RJ-TTL The above mentioned cables are available in SATEL's product offering. Fig. 3. Wiring diagram of the cable connecting RS-232 ports of ETHM-1 Plus module and INTEGRA control panel with PIN5 connector socket.
Page 4 SATEL Fig. 4. Wiring diagram of the cable connecting RS-232 ports of ETHM-1 Plus module and INTEGRA / INTEGRA Plus control panel with RJ type connector socket. The declaration of conformity may be consulted at www.satel.eu/ce SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel.
