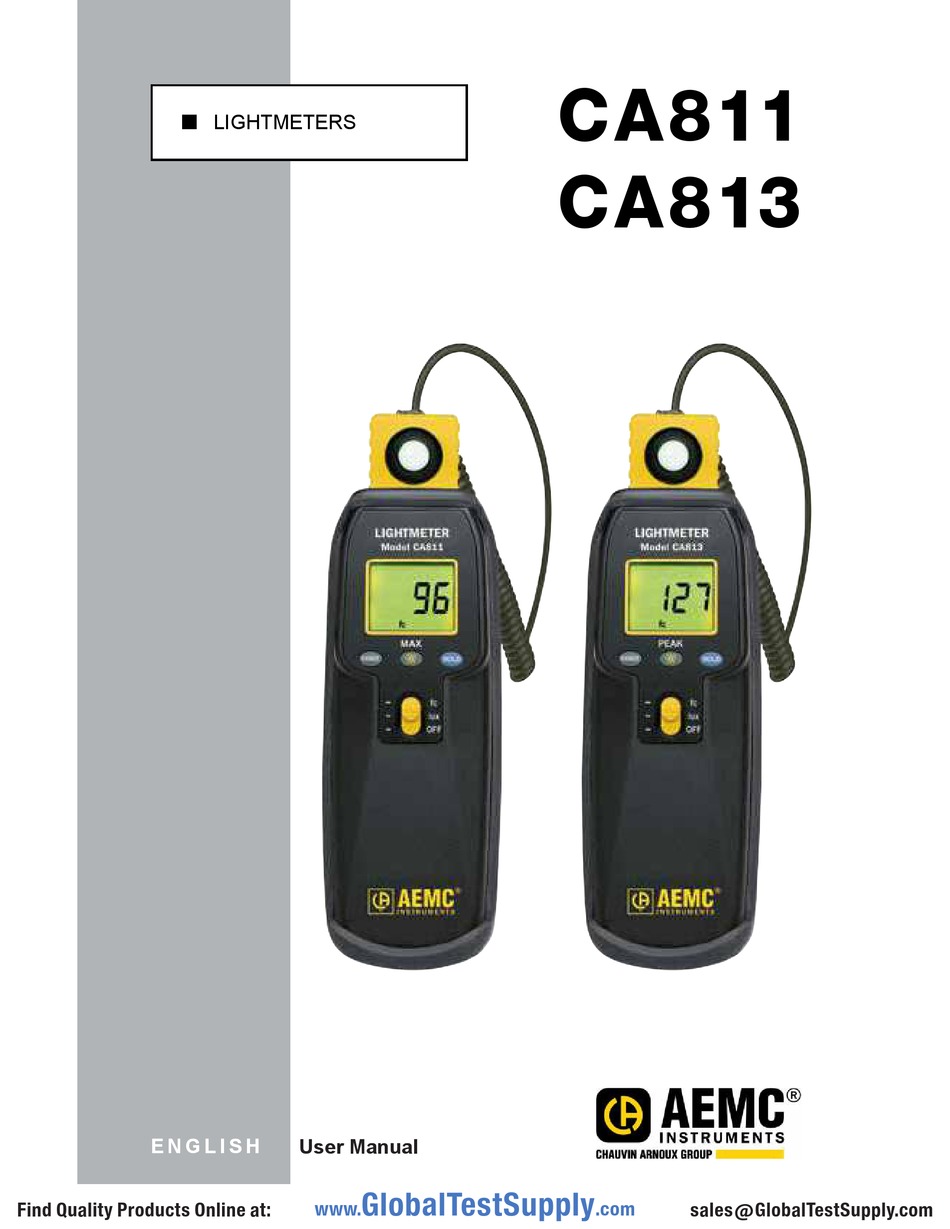

- Page 1 CA811 LIGHTMETERS CA813 E N G L I S H User Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2121.20 / 2121.21 Model #: CA811 / CA813 Please fill in the appropriate date as indicated: Date Received: _________________________________ _______________________ Date Calibration Due: Chauvin Arnoux ®...
-
Page 3: Table Of Contents
2.1 Description ................4 2.2 Button Functions ...............5 2.2.1 Center (Yellow) Function Switch ........5 2.2.2 RANGE Button ..............5 2.2.3 HOLD Button ..............5 2.2.4 Back-light Button ............5 2.2.5 MAX Button (Model CA811) .........5 2.2.6 PEAK Button (Model CA813) ........5 3. SPECIFICATIONS................6 3.1 Environmental Specifications ............6 3.2 General Specifications ..............7 3.3 Safety Specifications ..............7 4. OPERATION ..................9 4.1 Recommendations Before Operating ........9... -
Page 4: Introduction
Risk of electric shock. The voltage at the parts marked with this symbol may be dangerous. This symbol refers to a type A current sensor. This symbol signifies that application around and removal from HAZARDOUS LIVE conductors is permitted. In conformity with WEEE 2002/96/EC Lightmeter Models CA811 and CA813 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 5: Definition Of Measurement Categories
Notify your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately with the carrier and notify your distributor at once, giving a detailed description of any damage. Save the damaged packing container to substantiate your claim. Ordering Information Lightmeter Model CA811........... Cat. #2121.20 Includes 9V alkaline battery, rugged, shockproof, protective holster and user manual. Lightmeter Model CA813 ..........Cat. #2121.21 Includes 9V alkaline battery, rugged, shockproof, protective holster and user manual. -
Page 6: Product Features

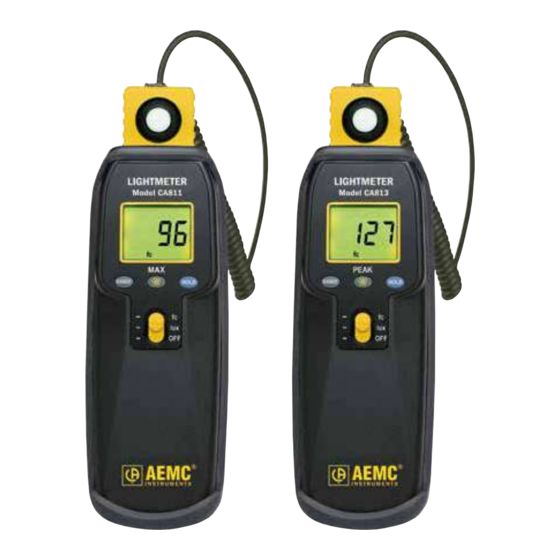

The Lightmeter Models CA811 and CA813 are designed for simple one- hand operation. They provide selectable lux or footcandle units for display and feature a 3½ digit backlit LCD digital display and a HOLD function. The Model CA811 offers a MAX function, while the Model CA813 offers a PEAK function and a broader light response. 1. Photodiode sensor 2. 3½ digit display 3. RANGE selector 4. MAX (CA811) or PEAK (CA813) 5. Removable light sensor 6. HOLD button 7. Power/mode selector Lightmeter Models CA811 and CA813 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 7: Button Functions
2.2.3 HOLD Button The HOLD button “freezes” the reading on the display. Press the HOLD button to activate the HOLD function. In the HOLD mode, the HOLD annunciator is displayed in the upper part of the LCD display and the last reading is displayed until the HOLD button is released. 2.2.4 Back-light Button Press the button to turn the Back-light ON. Press again to turn OFF. 2.2.5 MAX Button (Model CA811) Press the button for 2 seconds to enter or exit the MAX mode. When enabled, MAX is displayed in the upper right hand corner of the display. The Lightmeter then records and displays the maximum absolute value. It is only updated when a new MAX is reached. 2.2.6 PEAK Button (Model CA813) Press the button for 2 seconds to enter or exit the PEAK mode. When enabled, PEAK is displayed in the upper left hand corner of the display. In the PEAK mode, the Lightmeter records and displays the maximum absolute value over a 50ms period and is updated when a new PEAK is reached. -
Page 8: Specifications
E=(I cos q) /d Environmental Specifications Range (CA811): 20 lux, 200 lux, 2000 lux, 20k lux 20 fc, 200 fc, 2000 fc, 20k fc Range (CA813): 20 lux, 200 lux, 2000 lux, 20k lux, 200k lux 20 fc, 200 fc, 2000 fc, 20k fc Resolution: 0.01 lux, 0.01 fc... -
Page 9: General Specifications
Altitude: 2000m max Dimensions: 6.81 x 2.38 x 1.5" (173 x 60.5 x 38mm) Weight: Approx 7.9 oz (224g) including battery Electromagnetic compatibility: Emissions and immunity in an industrial setting compliant with EN 61326-1 Safety Specifications EN 61010-1 (1995-A2), Protection Class III Overvoltage Category (CAT III, 24V), Pollution Degree 2 Indoor Use *All specifications are subject to change without notice Lightmeter Models CA811 and CA813 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 10 0.0082 5.59 0.5030 343.0 0.0041 2.78 0.7100 484.0 0.0021 1.43 0.8620 588.0 0.0010 0.716 0.9540 650.0 0.0005 0.355 0.9950 679.0 0.0003 0.170 1.0000 683.0 0.0001 0.820 0.9950 679.0 0.0001 0.041 Lightmeter Models CA811 and CA813 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 11: Operation
Avoid reflections or shadows from your body onto the sensor, when light is emitted from many directions. • For best accuracy, repeat measurements several times to ensure that the light source is stable. • Avoid flexing the cable excessively at either end. Operating Instructions 1. Slide the function switch to the desired lux or fc (foot-candle) setting. 2. Select the appropriate range or, if in doubt, select the highest setting (klux or kfc). 3. Remove the sensor head cover. 4. Hold the sensor head steady and make sure that the light completely fills the cosine correction white dome. 5. Move away from the sensor head to avoid shadowing it. The sensor head has a 5 ft (1.5m) extension cable to allow separation between the case and the unobstructed measurement location. 6. Press the RANGE button until an optimum reading range is obtained. 7. Read the illuminant value directly from the display. 8. When finished, slide the function switch to OFF and cover the sensor head (extends the sensor life). Lightmeter Models CA811 and CA813 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 12: Maintenance
The Replace with a standard 9V battery (NEDA 1604, 6LR61). To replace the battery: • Turn the Lightmeter OFF. • Remove the rubber holster. • Remove the screw from the back of the meter and lift off the bat- tery cover. • Replace the battery, then put the rear cover and holster back on. Cleaning • Use a soft cloth lightly dampened with soapy water. • Rinse with a damp cloth and then dry with a dry cloth. • Do not use any abrasives or solvents. • Do not let any liquid enter the case or sensor area. Lightmeter Models CA811 and CA813 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 13: Repair And Calibration
Technical and Sales Assistance If you are experiencing any technical problems, or require any assistance with the proper operation or application of your instrument, please call, fax or e-mail our technical support team: Instruments Chauvin Arnoux ® , Inc. d.b.a. AEMC ® Contact: Phone: (800) 945-2362 (Ext. 351) (603) 749-6434 (Ext. 351) Fax: (603 742-2346 E-mail: techsupport@aemc.com Lightmeter Models CA811 and CA813 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 14: Limited Warranty
Limited Warranty The Models CA811 and CA813 are warranted to the owner for a period of two years from the date of original purchase against defects in manufacture. This limited warranty is given by AEMC ® Instruments, not by the distributor from whom it was purchased. This warranty is void if the unit has been tampered with, abused or if the defect is related to service not performed by ®...
