The OPITEC range of projects is not intended as play toys for young
children.They are teaching aids for young people learning the skills of
Craft, Design and Technolo- gy.These projects should only be underta-
ken and tested with the guidance of a fully qualified adult. The fini-
shed projects are not suitable to give to children under 3 years old.
Some parts can be swallowed. Dan- ger of suffocation!
Parts List
Plywood sheet
Pine strip
Pine strip
Pine dowel
Brass tube
Set screw
Stop nut
Screws
Set screw
Modelling foam
1
Table top nutcracker
Please Note
Quantity
106.809
Necessary tools and equipment:
Pencil
Wood glue
Sandpaperr
Size (mm)
1
15x100x200
1
20x30x100
1
250x30x20
1
ø6x50
1
5diax15
1
M4x70
1
M4
1
ø3x25
2
ø4x16
1
95x90x2
Try square
Ruler
ø4
ø20
ø5
ø35
ø6
Forstner bit
Drills
Fine saw
saw guide
Rasp
Crosshead
screwdriver
Designation
Plywood sheet
Pine strip
Pine strip
Pine dowel
Brass tube
Set screw
Stop nut
Screws
Set screw
Modelling foam
Machine vice
Countersink
bit
Spanner
Metal hacksaw
Part No.
1
2
3
4
5
6
7
8
9
10
Advertisement
Related Manuals for Opitec 106.809
Summary of Contents for Opitec 106.809

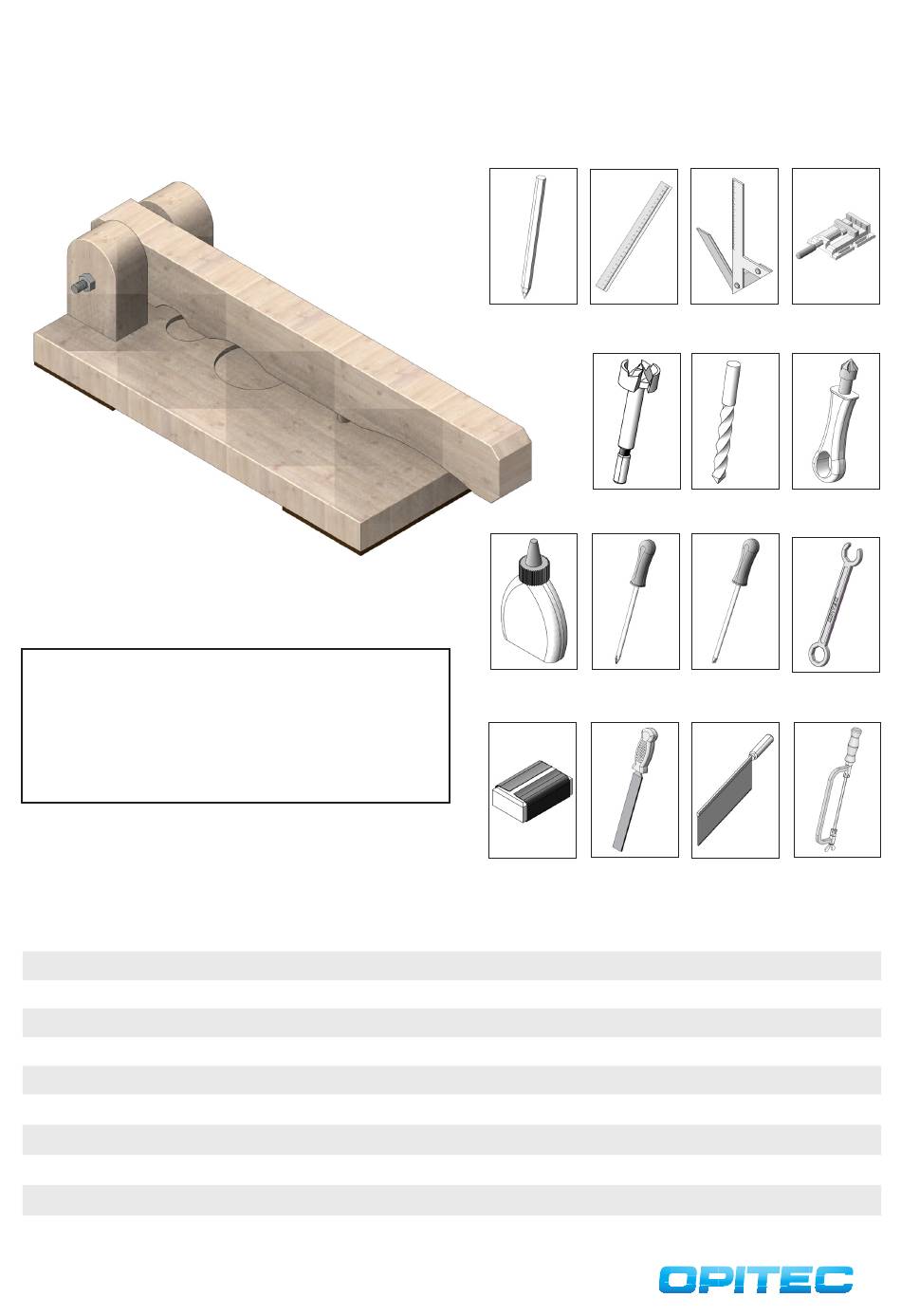

- Page 1 ø35 ø6 Forstner bit Drills Countersink Please Note The OPITEC range of projects is not intended as play toys for young Wood glue Fine saw saw guide Spanner children.They are teaching aids for young people learning the skills of Craft, Design and Technolo- gy.These projects should only be underta- ken and tested with the guidance of a fully qualified adult.
- Page 2 Instructions 106.809 Table top nutcracker ø2 ø6 ø20 ø35 Mark out the base (1) 15x100x200mm as shown in the plans. Drill the holes 20 and 35mm diameter, 2mm deep only - do not drill all the way trough! Drill the 2x2mm holes and countersink them undermeath - sand the base to finish.
- Page 3 Instructions 106.809 Table top nutcracker Insert the screws (9) in the 2mm holes. Press the brass tube (5) in the bearing blocks. Connect the lever and bearing blocks (6) and stop nut (7) so that the Connect the lever and bearing blocks (6) and stop nut (7) so that the lever is easy to use.
- Page 4 Instructions 106.809 Table top nutcracker...
- Page 5 Instructions 106.809 Table top nutcracker Base(1) M 1:1...
- Page 6 Bauanleitung 106.809 Tischnussknackert...
- Page 7 Bauanleitung 106.809 Tischnussknackert Lever (3) M 1:1...
