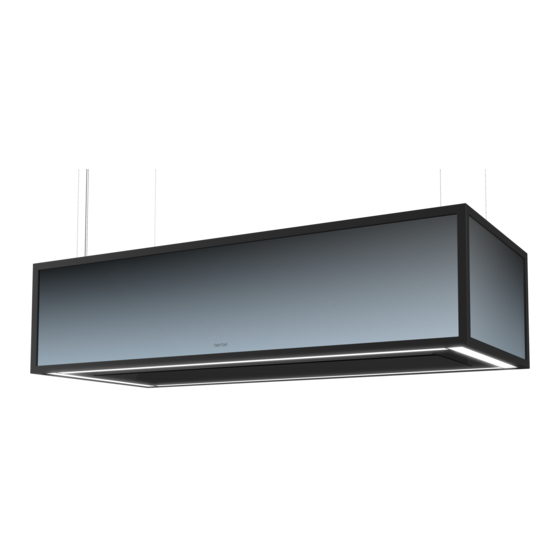

- Page 1 Island hood Skyline Frame Operating and installation instructions for the models ƒ BIH 100 SKF ƒ BIH 120 SKF ƒ BIH 140 SKF ƒ BIH 160 SKF 6006244_0...
- Page 2 Document information Symbol clarification - text ☞ Handling requirement Operating and installation instructions for: y BIH 100 SKF E01 island hood y Listing y BIH 120 SKF E01 island hood y BIH 140 SKF E01 island hood D Reference to another point in this document y BIH 160 SKF E01 island hood Reference to other documents that should be observed Descriptions are identical for all models.
-
Page 3: Table Of Contents
Table of contents Safety information ......4 Proper intended use ..... 4 Authorised target groups . -
Page 4: Safety Information
Safety information Safety information General safety instructions D WARNING! Proper intended use Hazard through a disregard of the operating and installation instructions! The device serves to extract cooking vapours. This manual contains important information for the safe The device is intended exclusively for private domestic use. handling of the device. -
Page 5: Product Information
Product information Product information The filter filling in the recirculated air filter neutralises any smelly odours present. The odour-free, cleaned room air is fed back into the room. The humidity in the room can be reduced with the fresh air feed. Functional principle In recirculated air mode, it is necessary to use the run-on function so that the device can remove the remaining... -
Page 6: Product Overview
Product information Product overview A Ceiling mounting plate B Screwed end C Mounting sleeve D Support cable E Cover for ceiling mounting plate F Wieland socket G Cable anchor for mains cable A Ceiling console comprising a ceiling mounting plate and H Mains cable with Wieland plug a cover Lock nut for ceiling mounting plate... -
Page 7: Scope Of Delivery
Product information Scope of delivery Technical data Information on the model (e.g. serial number, year of construction) is quoted on the ratings plate. D “2.4 Product overview” (page 6). Variants without side shelves 230 V / 230 V / Connection voltage 50 Hz 50 Hz Total power... - Page 8 Product information Variants with side shelves 230 V / 230 V / Connection voltage 50 Hz 50 Hz Total power max. 300 W max. 300 W Fan power consumption 170 W 170 W Lighting LED 20.2 W LED 20.7 W Hob lighting 705 lx 623 lx...
-
Page 9: Installation
Installation Installation Requirements for the installation location D WARNING! Safety information for installation Risk of death due to improper installation! Disregard of the ambient conditions can lead to hazardous D WARNING! situations, e.g. in the handling of electrical power or gas. ☞... -
Page 10: Installation Procedure
Installation Installation procedure 3.4.2 Unpack the device Short overview: D ATTENTION! 1. Preparation for installation 2. Unpack the device Hazard of glass breaking or other damage due to 3. Install the ceiling mounting plate incorrect handling! 4. Hang the device in place The device and its surfaces can be damaged when being 5. -
Page 11: Install The Ceiling Mounting Plate
Installation 3.4.3 Install the ceiling mounting plate ☞ Make sure that the legal safety clearances will be complied with: The device is designed to be hung on ceilings. y Recommendation 400 mm. y With electric hobs, at least 650 mm. When mounting to a solid ceiling: y With gas hobs, at least 650 mm. - Page 12 Installation The Wieland socket, cable anchor and earthing cable can be installed in the pre-drilled positions on either side of the ceiling mounting plate. D WARNING! Risk of death due to electric shock! Touching live parts can cause an electric shock, burns or death.
-
Page 13: Hang The Device In Place
Installation D ATTENTION! 3.4.4 Hang the device in place Danger of property damage due to improper hanging on D WARNING! the cables! The cable cannot be wound up correctly due to obstructions Danger of injuries through improper handling! or irregularities on the cable guide. Hanging the device requires a great deal of physical exertion ☞... - Page 14 Installation D WARNING! Risk of injury due to the device falling down! Loosen the mounting sleeves to align the device. If the fastening sleeves are loosened too far, the support cable can be torn out of the screwed end and the device may fall down.
- Page 15 Installation ☞ Switch the electricity supply on. When using the recirculated air filter permalyt BUR BIH (optional): When the device is connected to the power supply for the first time, this is confirmed by an acoustic signal. y 30x beep (for 1 second respectively): The device is not correctly connected.
-
Page 16: Set The End Positions
Installation 3.4.5 Set the end positions The remote control is used to set the end positions. Observe the instruction manual for the remote control. D ATTENTION! Danger of damage due to falling parts! The cover can fall down when it is being removed and damage the hob, the kitchen furnishings or other objects. -
Page 17: Assemble Shelves
Installation 3.4.6 Assemble shelves 3.4.8 Check and carry out commissioning Only for variants with side shelves D ATTENTION! Risk of disruptions due to moisture in the device! If the device is moved from a cold environment into a hot one, condensation may form inside. ☞... -
Page 18: Operation
Operation Operation Cooking oils and fats have different smoke points. The smoke point is the temperature at which smoke clearly develops over the hot oil or fat. The smoke can settle on furniture, the fronts of kitchen units and the ceiling. Safety information for operation ☞... -
Page 19: Cleaning
Cleaning Cleaning Cleaning procedures The device draws in dirt particles (e.g. grease and oil particles) with the air from the room. The dirt particles are separated off Safety information for cleaning and collected in the upper section, the lower section and in the Capillar Trap. - Page 20 Cleaning D CAUTION! Danger of injuries due to device edges! When removing and replacing the lower section or the cross flow, fingers may become trapped and crushed. ☞ Move the device parts slowly and carefully. D ATTENTION! Danger of damage due to falling parts! The lower section and the Capillar Trap can fall down when being removed and damage the hob, the kitchen furnishings or other objects.
-
Page 21: Maintenance
Maintenance Maintenance 6.2.2 Replacing the filter filling (only for BUF BIH recirculated air filter) Odours are trapped in the filter filling in the recirculated air Safety information for maintenance filter. The odour-free, cleaned room air is fed back into the room. D WARNING! Recirculated air filters are maintenance-free for up to two Hazard through a disregard of the maintenance... -
Page 22: Fault Rectification
Maintenance Fault rectification Possible faults are described below: Description of the fault. y Possible cause. ☞ Remedy. Fan and lighting do not work. y No power supply. ☞ Check that the all-pole mains switch is connected. ☞ Switch the mains switch on. y The breaker may have been tripped or is defective. - Page 23 Maintenance Moisture in the device. y Dripping or splashing water has penetrated the device. y Liquid (e.g. from vases, bottles on the device) has penetrated the device. ☞ Immediately shut off the power supply, by removing the fuse. ☞ Make sure that the power supply cannot be unintentionally reconnected.
-
Page 24: Dismounting
Dismounting Dismounting ☞ Have two persons hold the body. ☞ Have a third person unscrew the lock nuts (counter nuts) ☞ Move the device into a position where the distance to the for the support cable on the fastening sleeves. ceiling console is no more than 1150 mm. -
Page 25: Disposal
Disposal Disposal Dispose of filter filling ☞ Dispose of the charcoal in accordance with the local applicable Waste Disposal Act (EU waste code 061302). Dispose of packaging Dispose of the device D ATTENTION! Risk of environmental damage due to improper disposal D ATTENTION! of the packaging! Risk of environmental damage due to improper disposal... -
Page 26: Annex
Annex Annex Authorised to compile the technical documentation: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine EU Declaration of Conformity Tel. +49 (0) 5971 / 80 80 9 - 0 in accordance with the provisions of the following The manufacturer bears sole responsibility for the issuance EU Directives: of this declaration of conformity. -
Page 27: Contact
Annex Contact If you have any questions or suggestions, please select from the following options: Post: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine Tel: +49 (0) 5971 80 80 9 - 0 Mon to Thu 08:00 – 17:30 hrs and Fri 08:00 – 16:30 hrs... - Page 28 6006244_0 30.05.2022...
