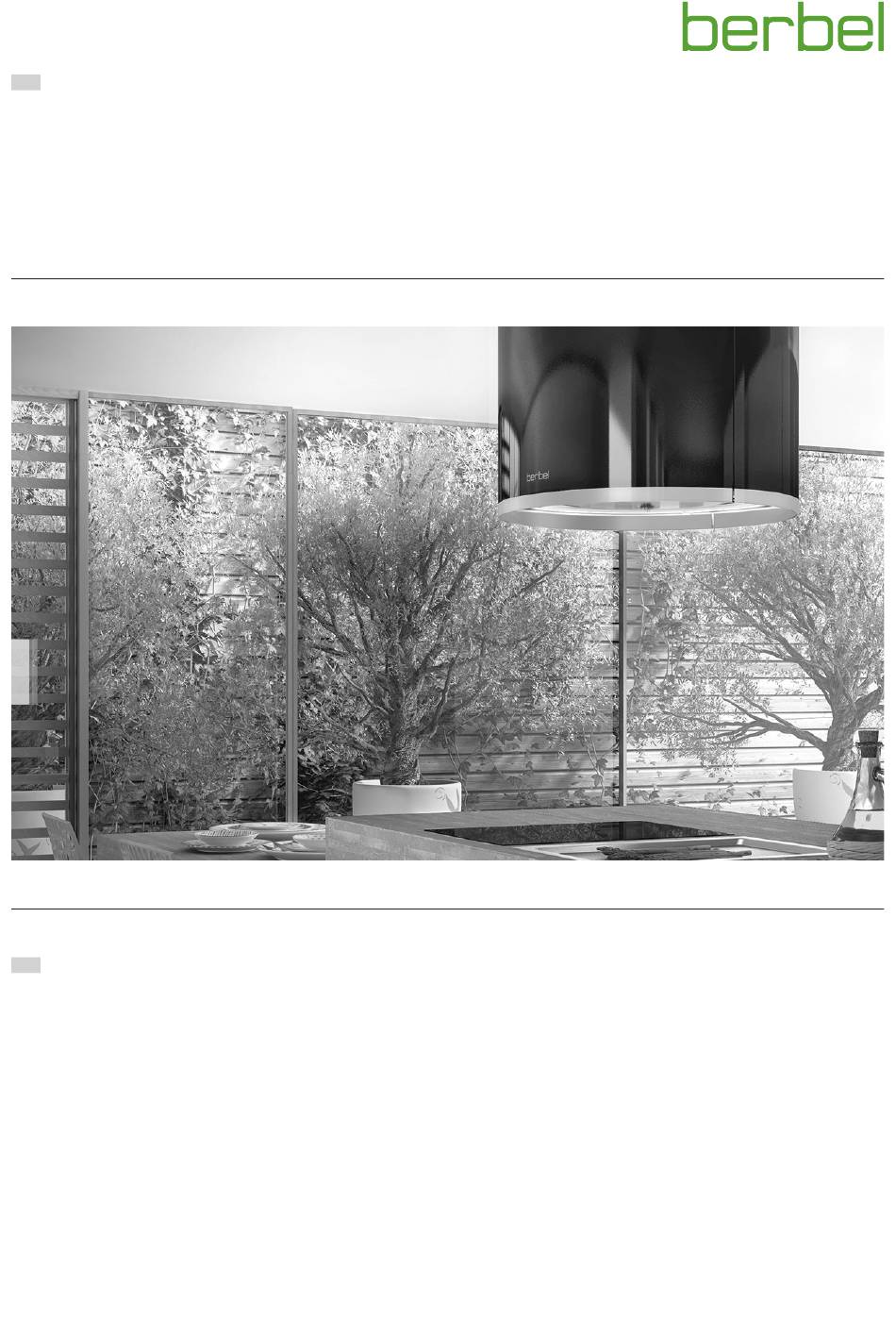

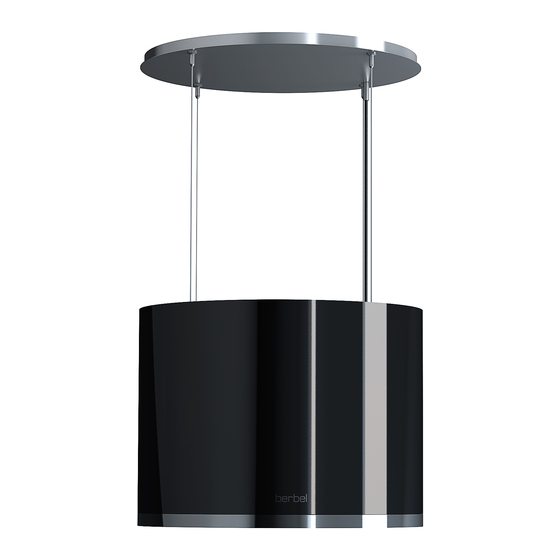

- Page 1 Island hood Skyline Round Operating and installation instructions for the models ƒ BIH 60 SKR 6005437_a...
- Page 2 Document information Symbol clarification - text ☞ Handling requirement Operating and installation instructions for: y BIH 60 SKR E02 island hood y Listing y Original instructions. D Reference to another point in this document y Part of the product. y Copyright protected. Reference to other documents that should be observed y Duplications, re-printing and distribution only with permission.
-
Page 3: Table Of Contents
Table of contents Safety information ......4 Proper intended use ..... 4 Authorised target groups . -
Page 4: Safety Information
Safety information Safety information General safety instructions D WARNING! Proper intended use Hazard through a disregard of the operating and installation instructions! The device serves to extract cooking vapours. This manual contains important information for the safe The device is intended exclusively for private domestic use. handling of the device. -
Page 5: Product Information
Product information Product information Recirculated air mode Functional principle The device is used in recirculated air mode. The filter filling in the recirculated air filter neutralises any unpleasant odours present. The odour-free, cleaned room air is fed back into the room. The humidity in the room can be reduced with the fresh air feed. -
Page 6: Product Overview
Product information Product overview A Ceiling mounting plate B Mains cable with Wieland plug C Wieland socket D Cable tie E Cover for ceiling mounting plate F Screwed end G Mounting sleeves H Support cable Lock nut for ceiling mounting plate A Ceiling console comprising a ceiling mounting plate and a cover B Hood body with lift function (optional) and faceplate with... -
Page 7: Scope Of Delivery
Product information Scope of delivery Technical data BIH 60 SKR E02 Connection voltage 230 V / 50 Hz Total power 272.1 W Fan power consumption 170 W Drive power consumption 80 W Lighting LED 19.5 W, Hob lighting 2724 lm Lighting LED 2.6 W, Effect lighting 264 lm Colour temperature, adjustable... -
Page 8: Installation
Installation Installation Requirements for the installation location D WARNING! Safety instructions for installation Risk of death due to improper installation! Disregard of the ambient conditions can lead to hazardous situations, e.g. in the handling of electrical power or gas. D WARNING! ☞... -
Page 9: Installation Procedure
Installation Installation procedure 3.4.2 Unpack the device Short overview: D ATTENTION! 1. Preparation for installation 2. Unpack the device Hazard of glass breaking or other damage due to 3. Install the ceiling mounting plate incorrect handling! 4. Hang the device in place The device and its surfaces can be damaged when being 5. -
Page 10: Install The Ceiling Mounting Plate
Installation D WARNING! 3.4.3 Install the ceiling mounting plate Risk of death due to explosions or electric shock! The device is designed to be hung on ceilings. Drilling through gas, water or electrical lines can lead to hazardous situations. When mounting to a solid ceiling: ☞... - Page 11 Installation The Wieland socket and the earthing cable are installed in the pre-drilled positions. D WARNING! Risk of death due to electric shock! Touching live parts can cause an electric shock, burns or death. ☞ Ensure that the power supply is switched off and remains ☞...
-
Page 12: Hang The Device In Place
Installation 3.4.4 Hang the device in place D WARNING! Danger of injuries through improper handling! Hanging the device requires a great deal of physical exertion due to its size and weight. If the device falls down, serious injuries are possible. ☞... - Page 13 Installation ☞ Feed the mains cable with the Wieland plug tightly from the device to the ceiling mounting plate. ☞ Secure the mains cable to the ceiling mounting plate with a cable tie. ☞ Align the hood body horizontally by adjusting the fastening sleeves.
-
Page 14: Set End Positions With Lift Function (Optional)
Installation 3.4.5 Set end positions with lift function (optional) ☞ Switch the electricity supply on. The remote control is used to set the end positions. The device is ready for operation. Observe the instruction manual for the remote control. A remote control is used to raise the hood body. -
Page 15: Set Colour Temperature
Installation 3.4.7 Check and carry out commissioning D ATTENTION! Risk of disruptions due to moisture in the device! If the device is moved from a cold environment into a hot one, condensation may form inside. ☞ Wait about 2-3 hours before bringing the device into service. -
Page 16: Operation
Operation Operation Cooking oils and fats have different smoke points. The smoke point is the temperature at which smoke clearly develops over the hot oil or fat. The smoke can settle on furniture, the fronts of kitchen units and the ceiling. Safety information for operation ☞... -
Page 17: Cleaning
Cleaning Cleaning Cleaning procedures The device draws in dirt particles (e.g. grease and oil particles) with the air from the room. The dirt particles are separated off Safety information for cleaning and collected in the upper section, the lower section and in the Capillar Trap. - Page 18 Cleaning D CAUTION! ☞ Clean the upper section with a soft, moist cloth. ☞ Clean the lower section with a soft, moist cloth or in a Danger of injuries due to device edges! dishwasher. When removing and replacing the lower section or the ☞...
-
Page 19: Maintenance
Maintenance Maintenance 6.2.2 Replacing filter filling Odours are trapped in the filter filling in the recirculated air filter. The odour-free, cleaned room air is fed back into the Safety instructions for maintenance room. Recirculated air filters are maintenance-free for up to two D WARNING! years. -
Page 20: Tighten The Hinges
Maintenance 6.2.3 Tighten the hinges D ATTENTION! Danger of damage due to falling parts! Tool may fall down during tightening and damage the hob, the kitchen furnishings or other objects. ☞ Hold the tool firmly. ☞ Protect the area below the device (e.g. using thick cardboard). -
Page 21: Fault Rectification
Maintenance Fault rectification Moisture in the device. y Dripping or splashing water has penetrated the device. Possible faults are described below: y Liquid (e.g. from vases, bottles on the device) has Description of the fault. penetrated the device. y Possible cause. ☞... -
Page 22: Dismounting
Dismounting Dismounting ☞ Have two persons hold the body. ☞ Have a third person unscrew the lock nuts (counter nuts) ☞ Move the device into a position where the distance to the for the support cable on the fastening sleeves. ceiling console is no more than 1150 mm. -
Page 23: Disposal
Disposal Disposal Dispose of filter filling ☞ Dispose of the charcoal in accordance with the local applicable Waste Disposal Act (EU waste code 061302). Dispose of packaging Dispose of the device D ATTENTION! Risk of environmental damage due to improper disposal D ATTENTION! of the packaging! Risk of environmental damage due to improper disposal... -
Page 24: Annex
Annex Annex Authorised to compile the technical documentation: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine EU Declaration of Conformity Tel. +49 (0) 5971 / 80 80 9 - 0 in accordance with the provisions of the following The manufacturer bears sole responsibility for the issuance EU Directives: of this declaration of conformity. -
Page 25: Contact
Annex Contact If you have any questions or suggestions, please select from the following options: Post: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine Tel: +49 (0) 5971 80 80 9 - 0 Mon to Thu 08:00 – 17:30 hrs and Fri 08:00 – 16:30 hrs... - Page 26 6005437_a – 30.05.2022...
- Page 27 6005437_a – 30.05.2022...
- Page 28 6005437_a 30.05.2022...
