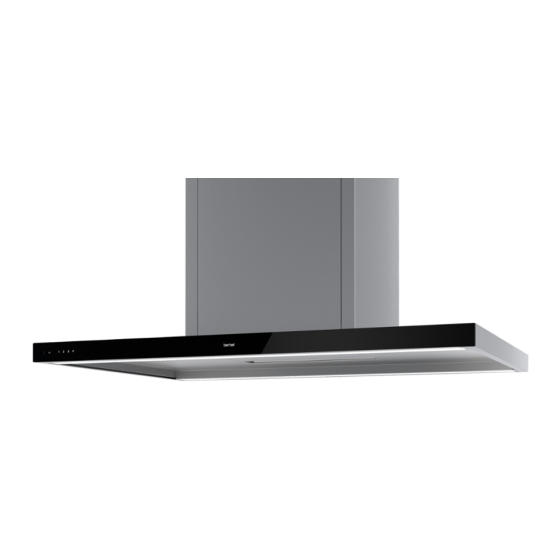

- Page 1 Island hood Glassline Operating and installation instructions for the models ƒ BIH 100 GL 6005735_0...
- Page 2 Document information Symbol clarification - text ☞ Handling requirement Operating and installation instructions for: y Glassline island hood BIH 100 GL E02 y Listing y Original instructions. D Reference to another point in this document y Part of the product. y Copyright protected.
-
Page 3: Table Of Contents
Table of contents Safety information ......4 Cleaning ........27 Proper intended use . -
Page 4: Safety Information
Safety information Safety information General safety instructions D WARNING! Proper intended use Hazard through a disregard of the operating and installation instructions! The device serves to extract cooking vapours. This manual contains important information for the safe The device is intended exclusively for private domestic use. handling of the device. -
Page 5: Product Information
Product information Product information Functional principle BackFlow technology (optional) y Condensate or droplet formation on the extractor hood (e.g. if steam touches the cold surface) is prevented by the ventilation of the hood underside. y Part of the vented air quantity is blown in at the sides over the hood underside and directed into the suction gap. -
Page 6: Hybrid Mode
Product information 2.2.3 Hybrid mode In hybrid mode, it is possible to select flexibly between recirculated air mode and extracted air mode. In extracted air mode, the cleaned room air is routed to the outside through the wall box which opens automatically. Extracted air mode is recommended in summer or with particularly intensive frying. -
Page 7: Scope Of Delivery
Product information Scope of delivery A Chimney stack B 2 side chimney panels C Rear panel with mounting bracket and round head screw M4 D Front panel with arrestor cable E BackFlow port F Drilling template G Wieland plug (plugged into chimney stack) H Hood body 2 cladding panels for the underside of the hood body Mounting aid for cladding panels... -
Page 8: Technical Data
Product information Technical data BIH 100 GL E02 Connection voltage 230 V / 50 Hz Total power 188 W Fan power consumption 170 W LED 17.2 W, Lighting 637 lx Colour temperature hob lighting, 2700 - 6500 K setting Width 1000 mm Depth 670 mm Height in recirculated air mode with 745 - 995 mm... -
Page 9: Installation
Installation Installation Requirements for the installation location D WARNING! Safety instructions for installation Risk of death due to improper installation! Disregard of the ambient conditions can lead to hazardous D WARNING! situations, e.g. in the handling of electrical power or gas. ☞... -
Page 10: Requirements For Individual Operating Modes
Installation Requirements for individual operating modes Requirements for the exhaust air ducting (only for extracted air mode or hybrid mode) Further accessories may be required depending on the operating mode. D WARNING! Fire hazard and asphyxiation hazard due to improper 3.3.1 Requirements for recirculated air mode installation! When using the exhaust air ducting with other devices y Recirculated air fan on the fan outlet. -
Page 11: Installation Procedure
Installation Installation procedure If accessories (e.g. wall box, window contact switch) are required for the installation: Short overview: Observe the instructions for the accessories. 1. Preparation for installation ☞ Ensure that the accessories are correctly installed and 2. Unpack the device ready for connection. -
Page 12: Determining The Hanging Position
Installation 3.5.3 Determining the hanging position View from the front The device is designed to be hung on ceilings. When mounting on a solid ceiling: ☞ Make sure that the ceiling has sufficient load bearing capacity. ☞ Use the fastening materials provided. With different installation situations: ☞... - Page 13 Installation D WARNING! Risk of death due to explosions or electric shock! Drilling through gas, water or electrical lines can lead to hazardous situations. ☞ Ensure that there are no lines in the ceiling at the fastening points. ☞ Insert the bolt anchors into the holes. ☞...
-
Page 14: Hanging The Chimney Stack
Installation 3.5.4 Hanging the chimney stack D WARNING! Danger of injuries through improper handling! Hanging the device requires a great deal of physical exertion due to its size and weight. If the device falls down, serious injuries are possible. ☞ Two persons are required to hang the device. ☞... -
Page 15: Hanging The Hood Body
Installation 3.5.5 Hanging the hood body D WARNING! Danger of injuries through improper handling! Hanging the device requires a great deal of physical exertion due to its size and weight. If the device falls down, serious injuries are possible. ☞ Two persons are required to hang the device. ☞... -
Page 16: Connect Accessories
Installation 3.5.6 Connect accessories Depending on the installation situation, available accessories may be connected to the hood, e.g.: y Wall box y Window contact switch y Control flap y Recirculated air filter permalyt Observe the instructions for the accessories. D ATTENTION! ☞... -
Page 17: Connecting The Power Supply
Installation 3.5.7 Connecting the power supply Wall box y The wall box is closed when the control contacts are open. D WARNING! y The wall box is open when the control contacts are Risk of death due to electric shock! closed. -
Page 18: Fit The Side Chimney Panels
Installation 3.5.8 Fit the side chimney panels D ATTENTION! Danger of damage due to improper handling The body of the hood and the chimney could be damaged by movements during the installation. ☞ Keep a distance between the chimney and the body of the hood. -
Page 19: Fitting The Backflow Port
Installation 3.5.11 Installing filter (with recirculating and hybrid operation) The BackFlow port (Ø 150 mm) is located on the fan housing as an aid for the installation of the filter. The filter is placed correctly when the bottom edge of the filter is parallel to the top edge of the fan‘s housing and the gap is approximately 3 mm wide. -
Page 20: Connecting Exhaust Air Ducting (With Extracted Air And Hybrid Mode)
Installation 3.5.12 Connecting exhaust air ducting (with extracted Hybrid mode air and hybrid mode) Extracted air mode without BackFlow technology The BackFlow port is not used. When connecting a flexible hose, it is possible to use a tight-fitting pipe as an intermediate piece. -
Page 21: Inserting Lower Section And Separating Unit
Installation 3.5.14 Inserting lower section and separating unit ☞ Pivot the lower section upwards until both magnetic fasteners can be heard to click into place. ☞ Insert the separating unit into the mounting slot with both hands. 3.5.15 Check and carry out commissioning ☞... -
Page 22: Operation
Operation Operation Measures to ensure a sufficient supply of fresh air: ☞ Open the windows. ☞ Open the doors. ☞ Ensure that the window contact switch and the wall box Safety instructions for operation are installed and ready for operation. ☞... -
Page 23: Operating The Device
Operation Operating the device 4.2.1 Normal operation The device is controlled via the control panel. D WARNING! Fire hazard due to grease residue! In operation grease residue, which is highly inflammable, collects in and on the device. ☞ Clean the device properly. D “5. -
Page 24: Extraction Mode / Recirculated Air Mode
Operation 4.2.2 Extraction mode / recirculated air mode 4.2.4 Window contact switch changeover If a window contact switch is connected to the device, this If the device is configured for hybrid mode, it is possible to monitors whether the corresponding window is open or switch between extraction mode and recirculated air mode closed. -
Page 25: Run-On Function
Operation 4.2.6 Run-on function 4.2.7 AutoRun The device comes with a run-on function. If this function Devices equipped with the AutoRun module start is used, the device will operate for a further 10 minutes at automatically when the hob is turned on. When the hob is power setting after it has been switched off. -
Page 26: Autorun
Operation Configuring the device Button Function Automatic run-on. Button Function As delivered, the function is turned on. The device is switched on. ☞ Touch the button one time. ☞ Touch and hold 1x button for longer than Button glows brightly: 5 seconds until the configuration steps are Automatic run-on is activated. -
Page 27: Cleaning
Cleaning Cleaning Cleaning procedures The device draws in dirt particles (e.g. grease and oil particles) with the air from the room. The dirt particles are separated off Safety instructions for cleaning and collected in the lower section and separating unit. Before every cleaning: D WARNING! ☞... - Page 28 Cleaning Lower section Separating unit The lower section is held in the device by two guide pins. The separating unit is inserted and is held in the device by side hooks. ☞ Fold the lower section down. ☞ Pull the side hooks inwards on both sides. ☞...
-
Page 29: Maintenance
Maintenance Maintenance 6.2.2 Replacing filter filling (with recirculating and hybrid mode) Odours are trapped in the filter filling in the recirculating air Safety instructions for maintenance filter or hybrid filter. The odour-free, cleaned room air is fed back into the room. D WARNING! Recirculating air filters and hybrid filters are maintenance-free Hazard through a disregard of the maintenance... - Page 30 Maintenance Remove the hybrid filter ☞ Release the front panel from the bolts at the bottom of the hood body and remove the front panel. ☞ Remove the exhaust pipe from the hybrid filter. ☞ Lift the filter at least 30 mm. Remove the recirculation air filter ☞...
-
Page 31: Fault Rectification
Maintenance Fault rectification Moisture in the device. y Dripping or splashing water has penetrated the device. Possible faults are described below: y Liquid (e.g. from vases, bottles on the device) has Description of the fault. penetrated the device. y Possible cause. ☞... -
Page 32: Dismounting
Dismounting Dismounting ☞ Release the threaded connection of the cladding panels on the flue. ☞ Fold the cladding panels downwards. ☞ Pull the cladding panels off. D WARNING! ☞ Release the threaded connection for the hood body on Danger of injuries through improper handling! the chimney stack. -
Page 33: Disposal
Disposal Disposal Dispose of the device D ATTENTION! Dispose of packaging Risk of environmental damage due to improper disposal of the device! D ATTENTION! The device is subject to the European Directive 2012/19/EU and should not be disposed of with household waste. Risk of environmental damage due to improper disposal ☞... -
Page 34: Annex
FDE Hood Class LE Hood 37.0 LE Hood Class GFE Hood 96.6 BIH 100 GL E02 berbel GFE Hood Class Flow rate in extracted air mode in m³/h Stage min. to max. 320/410/520 Stage Power/Intense Flow rate in recirculated air mode in m³/h... -
Page 35: Contact
Annex Contact If you have any questions or suggestions, please select from the following options: Post: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine Telephone: +49 (0) 5971 / 80 80 9 - 0 Mon to Thu 8:00 – 17:30 hrs and Fri 8:00 –... - Page 36 6005735_0 31.03.2021...
