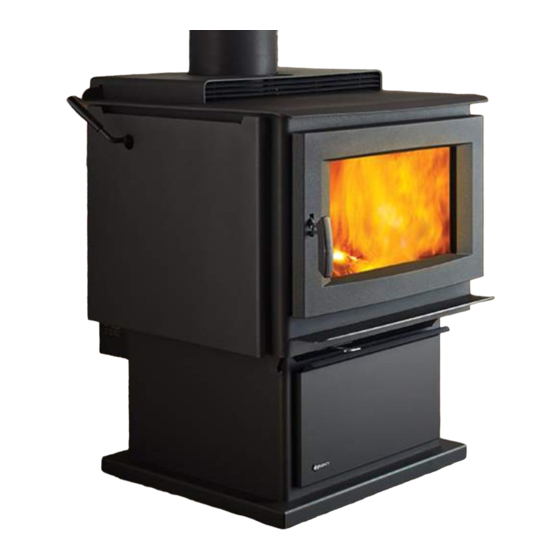

Freestanding woodstove
Hide thumbs
Also See for Pro Series:
- Owners & installation manual (28 pages) ,
- Owners & installation manual (52 pages) ,
- Owners & installation manual (44 pages)
Table of Contents
Advertisement
Quick Links
Owners &
Pro Series Freestanding Woodstove
Installation Manual
French Manual: https://bit.ly/3qAsPmW
Manuel en Français : https://bit.ly/3qAsPmW
www.regency-fire.com
MODEL:
F5200
F5200 Video
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
0219WS016S
920-100b
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
11.19.21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Regency Fireplace Products Pro Series
Summary of Contents for Regency Fireplace Products Pro Series
- Page 1 Owners & Pro Series Freestanding Woodstove Installation Manual French Manual: https://bit.ly/3qAsPmW Manuel en Français : https://bit.ly/3qAsPmW www.regency-fire.com MODEL: F5200 F5200 Video Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference.
- Page 2 Thank you for purchasing a REGENCY FIREPLACE PRODUCT. The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area. Keep those REGENCY FIRES burning.
-
Page 3: Table Of Contents
table of contents Operating Instructions Safety Label for F5200 ..........4 Seasoned Wood ............22 Dimensions Operating Instructions ..........23 Draft Control ..............23 Unit Dimensions ............5 First Fire ..............23 Wood Stove Outside Air Dimensions ......6 Fan Operation ..............24 Ash Disposal ..............24 Installation Safety Guidelines and Warnings .........24 Troubleshooting Guide ..........25 Residential Installation ...........7 Room Air - Important .............7... -
Page 4: Safety Label For F5200
To Flue Centre Line: To Top of Flue: D) 648mm / 25-1/2" H) 152mm / 6" MANUFACTURED BY: REGENCY FIREPLACE PRODUCTS 6988 VENTURE ST. DELTA, BC V4G 1H4 MADE IN CANADA MINIMUM PARALLEL / ALCOVE CEILING HEIGHT: 2.1 M / 83"... -
Page 5: Dimensions
dimensions UNIT DIMENSIONS 16 " [792mm] 16 " [735mm] " 8 " [689mm] [181mm] 3" [76mm] Shown with optional fan 29" 8" (203mm) diameter flue [737mm] collar ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS. -
Page 6: Wood Stove Outside Air Dimensions
dimensions WOOD STOVE OUTSIDE AIR DIMENSIONS With pedestal from base of unit to centerline 5-1/2" (138mm) Rear F5200 Regency Freestanding Woodstove... -
Page 7: Installation
installation RESIDENTIAL On pedestal units there are two locations where Too tall a chimney may prompt excessive draft outside air may be adapted to the unit. If using the which can result in very short burn times and INSTALLATION bottom of the pedestal, do not remove knockout from excessive heat output. -
Page 8: Stove Assembly Prior To Installation
installation STOVE ASSEMBLY Logo Installation Rear Heat Deflector Assembly for F5200 PRIOR TO 1. P u s h t h e INSTALLATION Regency logo The rear heat deflector is supplied with the stove into the two and must be installed unless the optional airmate The F5200 unit requires the pedestal attached holes in the has been selected. -
Page 9: Minimum Clearance To Combustible Materials
installation MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS Please read the section below carefully as clearances depend on whether the Airmate or the Rear Heat Deflector is installed on the stove. Measurements "From Unit" are from the top plate of the stove to a side wall or to a corner, and from the rear heat shield to a back wall. Clearances may only be reduced by means approved by the regulatory authority. -
Page 10: Floor Protection
installation FLOOR PROTECTION (EMBER PROTECTION ONLY REQUIRED) A combustible floor must be protected by non-combustible material (like tile, concrete board, or certified to UL-1618 or as defined by local codes) extending beneath the heater and a minimum of 8" (203mm) from each side and minimum 16" (406mm) (USA) from the front face of the stove and minimum 8"... -
Page 11: Wall Exit Clearance Factory Built Chimney
installation WALL EXIT CLEARANCE FACTORY BUILT CHIMNEY When a metal prefabricated chimney is used, the manufacturer's installation instructions must be followed. You must also purchase and install the ceiling support package or wall pass-through and "T" section package, firestops (where needed), insulation shield, roof flashing, chimney cap, etc. Maintain proper clearance to the structure as recommended by the manufacturer. -
Page 12: Masonry Fireplace
installation MASONRY FIREPLACE There are listed kits available to connect a stove to a masonry fireplace. The kit is an adapter that is installed at the location of the fireplace damper. The existing damper may have to be removed to allow installation. Minimum vertical of 36"... -
Page 13: Combustible Wall Chimney Connector Pass-Throughs
installation COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS Minimum chimney clearance to brick Method A: 12" (304.8 mm) Clearance to Combustible Wall Member: and combustibles 2 in. (50.8mm) Using a minimum thickness 3.5" (89 mm) brick and a 5/8" (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. Minimum clearance The clay liner must conform to ASTM C315 (Standard Specification 12 in. -
Page 14: Step-By-Step Chimney And Connector Installation
installation STEP-BY-STEP 7. To complete the chimney installation, install the double wall connector pipe from the stove’s CHIMNEY AND flue collar to the chimney support device. CONNECTOR 8. If you are using a horizontal connector, the INSTALLATION chimney connector should be as high as pos- sible while still maintaining the 18"... -
Page 15: Recommended Heights For Woodstove Flue
installation RECOMMENDED HEIGHTS FOR WOODSTOVE FLUE Simple rules on draft (refer to Table 1). Recommended Flue Height 3) Add 4% overall for each 1000' above sea level. Elevation Example a) Example b) 1) At sea level minimum height is 12' straight. Example: a) 1-1/2 ft. -
Page 16: Mobile Home Installation
installation MOBILE HOME INSTALLATION In addition to standard installation instructions the following requirements are mandatory for Once you have properly marked the position of installation in a mobile home. your unit and the floor protection as outlined in the Residential Installation items #1 through #8, a 1. -
Page 17: Optional Outside Air Kit
installation OPTIONAL OUTSIDE AIR KIT The Outside Air Kit is an option for Freestanding Stoves. Outside air for combustion can be brought in either through the bottom of the pedestal or through the rear plate of the pedestal. Damper Installation Wing Nut NOTE: The damper cannot be installed if attaching outside air to the Damper Handle... -
Page 18: Listed Components For Mobile Home Installation
installation LISTED COMPONENTS SIMPSON DURA-PLUS Qty.Part # Description FOR MOBILE HOME 9245N Round Ceiling support INSTALLATION 9248AN Square Ceiling support 11" 9248 Rain Cap 9249V 0/12 - 6/12 Flashing The Regency F5200 Freestanding pedestal units 9959 Storm collar are approved for installation in a Mobile Home 9217 36"... -
Page 19: Stainless Steel Smoke Deflector Installation/Replacement
installation STAINLESS STEEL SMOKE DEFLECTOR INSTALLATION/REPLACEMENT 1. The stainless smoke deflector is located in the upper front area of the fire- 4. Correct Install: Ensure return edge of smoke deflector is seated within box (see diagram below). The deflector is held in place with 2 x 7/16” hex the backside of the glass wash. -
Page 20: Brick Installation
installation BRICK INSTALLATION Firebrick is included to extend the life of your stove and radiate heat more evenly. Install all firebricks per the Diagram below and place in their correct positions. Do not use a grate. 1. Remove box of firebricks from inside unit. 2. -
Page 21: Fan Installation
installation FREESTANDING WOODSTOVE F1100/F2400/F3100/S2400/F5100/F3500 FAN INSTALLATION Fan assembly for use only with the room heater marked to indicate such use. FAN INSTALLATION FAN OPERATION (120V FAN) AUTOMATIC 1. Remove the two screws from the top of the fan housing. To operate the fan automatically, push the bottom switch on the side of the fan housing to "AUTO"... -
Page 22: Operating Instructions
operating instructions SEASONED WOOD Whether you burn wood in a fireplace, stove or insert, good quality firewood is the key to convenience, efficiency and safety. Wet wood and pieces that are not the right size and shape for your wood burner can be frustrating, burn inefficiently and deposit creosote that can fuel a dangerous chimney fire. Good planning, seasoning and storage of the firewood supply are essential to successful wood burning. -
Page 23: Operating Instructions
operating instructions OPERATING FIRST FIRE 7. For the first few days, the stove will give off an odour from the paint. This is to be expected as INSTRUCTIONS When your installation is completed and inspected the high temperature paint becomes seasoned. you are ready for your first fire. -
Page 24: Fan Operation
operating instructions SAFETY GUIDELINES 16. The controls of your unit or the air supply pas- Ash Drawer Operating Guideline sages should not be altered to increase firing AND WARNINGS for any reason. 1. Only clean ashes out of the stove when the unit has cooled down. -
Page 25: Troubleshooting Guide
operating instructions DO NOT BURN: DO NOT BURN GARBAGE OR FLAM- • Treated wood 14. Do not store any fuel closer than 2 feet from MABLE LIQUIDS SUCH AS GASO- • Coal your unit. Do not place wood, paper, furniture, LINE, NAPTHA OR ENGINE OIL. -
Page 26: Maintenance
maintenance MAINTENANCE 4. A small hot fire is preferable to a large smoul- GLASS REPLACEMENT dering one that can deposit creosote within the system. It is very important to carefully maintain your fire- Allow the stove to cool before removing or replacing 5. -
Page 27: Catalytic Combustor
maintenance CATALYTIC COMBUSTOR ACHIEVING AND MAINTAINING CATALYST LIGHT-OFF: The temperature in the stove and the gases entering the combustor must be Step 1: Light the stove in accordance with instructions within this raised to between 500F to 700F for catalytic activity to be initiated. During manual. -
Page 28: Combustor Assembly Removal/Replacement
maintenance COMBUSTOR ASSEMBLY NOTE: If also replacing the gasket in the bypass door (see next page), remove the lid of the bypass door while it is accessible and complete steps REMOVAL/REPLACEMENT in Bypass Door Gasket Replacement. The catalytic thermometer on top of the stove should read in the active zone after the stove has been in operation for several hours. -
Page 29: Bypass Door Gasket Replacement
maintenance BYPASS DOOR GASKET REPLACEMENT 4. Slide bypass door assembly forward, lower complete assembly with care. 1. Allow the stove to burn out and cool down, until cool to touch. Lift lid on bypass door assembly to reveal gasket. 2. Open stove door to access bypass door. 5. -
Page 30: Bypass Door Bolt Bracket Assembly Replacement
maintenance SECONDARY AIR TUBE REMOVAL / BYPASS DOOR BOLT BRACKET ASSEMBLY INSTALLATION REPLACEMENT 1. Allow the stove to burn out and cool down, until cool to touch. If any of the bolts used to secure the bypass door become damaged - the 2. -
Page 31: Side Baffle Installation/Removal
maintenance SIDE BAFFLE INSTALLATION/REMOVAL 1. Allow the stove to burn out and cool down. 2. Open stove door and bring the side baffle into the stove in the orientation shown below. Side Baffle Side Baffle Orientation Installed This edge to outside of firebox 3. -
Page 32: Door Catch Adjustment
maintenance DOOR CATCH DOOR HINGE ADJUSTMENT ADJUSTMENT The door catch may require adjustment as the door gasket compresses after a If the door hinge ever requires adjustement, ensure that the bolt is put on few fires. The door catch compression may require adjustment to renew seal. hand tight and tightened a further 1/2 turn using a wrench. -
Page 33: Parts List
parts list F5200 STOVE MAIN ASSEMBLY Part # Description Part # Description 051-539 Cast Door Assembly 051-067 Thermometer 156-004 Side Heat Shield RH 051-221 Cast Bypass Door 051-005 Side Heat Shield LH 936-074 Gasket Bypass Door (per foot) Firebox Assembly 051-003 Stainless Steel Smoke Deflector 051-513... -
Page 34: F5200 Stove Brick Layout
parts list F5200 STOVE BRICK LAYOUT 051-960 Brick Set Complete Fire bricks Size 4-1/2" x 9" 2" x 9" 3-1/2" x 4-1/2" 1-3/4" x 4-1/2" 2" x 7" AD Brick 34 | F5200 Regency Freestanding Woodstove... -
Page 35: Door Assembly
parts list DOOR ASSEMBLY Part # Description Part # Description 156-514 REMOVABLE CAST HANDLE ASSEMBLY 051-058 GASKET BRACKET TOP/BOTTOM 051-515/P ALIGNER ASSEMBLY 051-056 GLASS / GASKET FRAME 051-539 CAST DOOR METALLIC BLACK ASSEM- 936-077 5/8 MEDIUM DENSITY (936-077) BLY / NO GLASS 904-809 SCREW 1/4-20 x 3/8 TUSS HD PHIL ZINC PD (ea) 948-155... -
Page 36: Warranty
warranty Limited Lifetime Warranty FPI Fireplace Products International Ltd. (for Canadian customers) and Fireplace Products U.S., Inc. (for U.S. customers) (collectively referred to herein as “FPI”) extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation. The items covered by this limited warranty and the period of such coverage is set forth in the table below. - Page 37 warranty All warranty claims must be submitted by the dealer servicing the claim, including a copy of the Bill of Sale (proof of purchase by you). All claims must be complete and provide full details as requested by FPI to receive consideration for evaluation. Incomplete claims may be rejected.
- Page 38 warranty Limitations of Liability: The original purchaser’s exclusive remedy under this warranty, and FPI’s sole obligation under this warranty, express or implied, in contract or in tort, shall be limited to replacement, repair, or refund, as outlined above. IN NO EVENT WILL FPI BE LIABLE UNDER THIS WARRANTY FOR ANY INCIDENTAL OR CONSEQUENTIAL COMMERCIAL DAMAGES OR DAMAGES TO PROPERTY.
- Page 39 warranty Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
-
Page 41: Catalytic Combustor Warranty Coverage
NO LABOR WILL APPLY. All warranty claims must be sent to: Regency Fireplace Products By Authorized Regency Dealer * Prices subject to change. - Page 42 warranty 42 | F5200 Regency Freestanding Woodstove...
- Page 44 Installer: Please complete the following information Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial #: ____________________________________________________________ F5200 Video Regency is a trademark of FPI Fireplace Products International Ltd. Printed in Canada © Copyright 2021, FPI Fireplace Products International Ltd. All rights reserved.
