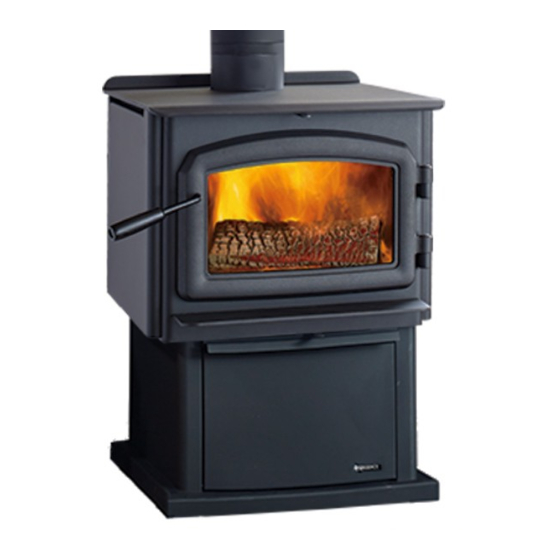

Classic™ Freestanding Woodstove
Owners &
Installation Manual
F2450M
French Manual Download: https://bit.ly/3rAsDW7
www.regency-fire.com
Manuel en Français : https://bit.ly/3rAsDW7
MODEL:
F2450M
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
0219WS026S
920-036a
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
04.21.21
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products Classic F2450M
Summary of Contents for Regency Fireplace Products Classic F2450M
- Page 1 Classic™ Freestanding Woodstove Owners & Installation Manual F2450M French Manual Download: https://bit.ly/3rAsDW7 www.regency-fire.com Manuel en Français : https://bit.ly/3rAsDW7 MODEL: F2450M Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference. 0219WS026S 920-036a FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
- Page 2 Thank-you for purchasing a REGENCY FIREPLACE PRODUCT. The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area. "This wood heater has a manufacturer set minimum low burn rate that must not be altered.
-
Page 3: Table Of Contents
table of contents Flue Baffle & Secondary Air Tube Installation .....22 Safety Decal for F2450M ........... 4 Fan Installation ............23 Stainless Steel Smoke Deflector Installation ....24 Dimensions Unit Dimensions ..............5 Operation Outside Air Dimensions ............. 5 Installation Seasoned Firewood .............25 Operating Instructions ..........25 Draft Control ..............25 Modular Installation Options .......... -
Page 4: Safety Decal For F2450M
safety decal This is a copy of the label that accompanies each NOTE: Regency units are constantly being Regency Freestanding Woodstove (F2450M). improved. Check the label on the unit and if We have printed a copy of the contents here there is a difference, the label on the unit is the for your review. -
Page 5: Dimensions
dimensions Unit Dimensions " 690mm " 630mm Images for OUTSIDE AIR DIMENSIONS 24" " 610mm 163mm 23-1/8" [587mm] (from fuel door opening) Images for OUTSIDE AIR DIMENSIONS 21-1/4" 4-9/16" (115mm) 21-1/2" [540mm] [546mm] Rear Outside Air Dimensions Front 6-13/16"(173mm) 4-9/16" (115mm) Rear Rear F2450M Regency Freestanding Woodstove... -
Page 6: Installation
installation 1. Please read this entire manual before you install Too tall a chimney may prompt excessive draft 11. For residential installations 6" (single wall OK) and use your new woodstove. Failure to follow which can result in very short burn times and double wall chimney, the chimney connector instructions may result in property damage, excessive heat output. -
Page 7: Stove Assembly Prior To Installation
installation Stove Assembly Airmate Assembly for F2450M Rear Heat Deflector Prior to Installation Assembly for F2450M 1. The Airmate sits on top of the stove with the slots The F2450M unit requires the pedestal (or heat The rear heat deflector is supplied with the stove in the sides fitting over the curved deflector on shield and legs) to be attached to the base. -
Page 8: Pedestal Assembly Installation
F2450 installation Bottom Heat Shield and Legs Installation Pedestal Assembly Installation 1. For easier assembly, tip the stove on its back (onto a soft The instructions below apply to the painted cast leg. It will be surface to prevent scratching) and remove the front cover. easier to attach the legs to the stove if the stove is tipped on its back (preferably on a soft surface to prevent scratching). -
Page 9: Room Air - Important
installation Room Air - Important Note: Once the knockout is removed On pedestal units there are two locations where outside air may be adapted to the unit. If using there are two tabs remaining. For installation using room air for combustion, the bottom of the pedestal, do not remove knock- Bend both tabs out for ease of remove knockout from the pedestal, and/or from... -
Page 10: Minimum Alcove Clearance And Clearance To Combustible Materials
installation Minimum Alcove Clearance and Clearance to Combustible Materials The Regency Freestanding models have been alcove approved and must be installed with a listed double wall connector to the ceiling level. Note: Minimum alcove ceiling height - 83" Maximum depth of alcove - 48" 16"... -
Page 11: Floor Protection (Corner Installation)
installation Floor Protection (Corner Installation) A combustible floor must be protected by non-combustible material (like tile, concrete board, or certified to UL-1618 or as defined by local codes) extending beneath the heater and a minimum of 8" (203mm) from each side and minimum 16" (406mm)** from the front face of the stove and minimum 6"... -
Page 12: Step-By-Step Chimney And Connector Installation
installation Step-By-Step This stove may be connected to a lined masonry chimney or a listed factory built chimney suitable for 8. If you are using a horizontal connector, Chimney And use with solid fuels and conforming to ULC629 in the chimney connector should be as high Connector Canada or UL-103HT in the USA. -
Page 13: Masonry Chimney
installation Masonry Chimney Ensure that a masonry chimney meets the mini- mum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. -
Page 14: Combustible Wall Chimney Connector Pass-Throughs
installation Combustible Wall Chimney Connector Pass-throughs Minimum chimney clearance to brick Method A: 12" (304.8 mm) Clearance to Combustible Wall Member: and combustibles 2 in. (50.8mm) Using a minimum thickness 3.5" (89 mm) brick and a 5/8" (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. Minimum clearance The clay liner must conform to ASTM C315 (Standard Specification 12 in. -
Page 15: Mobile Home Installation
installation Mobile Home Installation In addition to standard installation instructions the following requirements are mandatory for installation in a mobile home. For Canadian Installations : see Outside Air Kit - Part # 846-502. 1. The stove must be permanently bolted to the floor of the Mobile Home using the floor There are further requirements when installing screws provided. -
Page 16: Mobile Home Kit For Canada
installation F2450 Mobile Home Kit - For Canada Mobile Home Kit - for Canada Note: The optional ash drawer cannot be used when using the Mobile Home Kit. Note: The optional ashdrawer cannot be used when using the Mobile Home Kit. 5. -
Page 17: Installing Outside Air From Pedestal Base
installation F2450 Installing Outside Air from Pedestal Base Installing Outside Air Using Bottom Heat Shield/Legs If installing outside air from pedestal base, do not remove knock out from rear of pedestal. This must remain in place. Mobile Home Box Square Transition Box Blanking plate Collar Mobile Home Box... -
Page 18: Recommended Heights For Woodstove Flue
installation TABLE 1 MINIMUM RECOMMENDED FLUE HEIGHTS IN FEET (Measured from the top of the unit) # OF ELBOWS ELEVATION (FT) ABOVE SEA LEVEL 2 x 15 4 x 15 2 x 30 4 x 30 2 x 45 4 x 45 0-1000 12.0 13.0... -
Page 19: Optional Outside Air Kit
installation Optional Outside Air Kit The Outside Air Kit is an option for Freestanding Stoves. Outside air for combustion can be brought in either through the bottom of the pedestal or through the rear plate of the pedestal. For both bottom and rear outside air the Pedestal Cover Plate must be installed. Loosen the 4 screws on the rear of the pedestal and slide the cover plate over them. -
Page 20: Brick Installation
installation Brick Installation Firebrick is included to extend the life of your stove and radiate heat more evenly. Check to see that all firebricks are in their correct positions and have not become misaligned during shipping. Install all firebricks (if bricks were removed at install) per the diagram below and place in their correct positions. Do not use a grate. -
Page 21: Wood Handle & Door Assembly
installation WOOD STOVES & INSERTS Wood Handle & Door Assembly WOOD DOOR & HANDLE ASSEMBLY Place the door onto the hinges and then place the door handle through the opening on the door, as shown in In preparation of installing the door handle, the nuts, Diagram 2. -
Page 22: Flue Baffle & Secondary Air Tube Installation
installation Flue Baffle & 3. Tilt the left baffle up on top of the side channel and it will leave enough Secondary Air Tube room to position the right baffle in the same manner as Step 1 above. Installation Then reposition the left baffle flat on the air tubes. The flue baffle system located in the upper area of the firebox is removable to make cleaning your chimney system easier. -
Page 23: Fan Installation
F1100/F2400/F3100/S2400/F5100/F3500 installation Fan assembly for use only with the room heater marked to indicate such use. FAN INSTALLATION FAN OPERATION Fan Installation (120V FAN) AUTOMATIC 1. Remove the two screws from the top of the fan housing. To operate the fan automatically, push the bottom switch on the side of the fan housing to "AUTO"... -
Page 24: Stainless Steel Smoke Deflector Installation
installation Stainless Steel Smoke Deflector Installation The stainless smoke deflector is located in the upper front area of the firebox. The deflector is held in place with 2 bolts Prior to the first fire, ensure deflector is seated properly and secured with 2 hand tightened bolts. Smoke deflector installed with 2 bolts. -
Page 25: Seasoned Firewood
operating instructions Operating Seasoned Firewood Instructions Whether you burn wood in a fireplace, stove or insert, With your unit now correctly installed and safety good quality firewood is the key to convenience, ef- inspected by your local authority, you are now ready ficiency and safety. -
Page 26: First Fire
operating instructions First Fire 4. During the first few fires, keep the combustion 12. The controls of your unit or the air supply pas- rate at a moderate level and avoid a large fire. sages should not be altered to increase firing When your installation is completed and inspected Only after 5 or 6 such fires can you operate the for any reason. -
Page 27: Fan Operation
operating instructions Fan Operation Ash Drawer Operating Guidelines Safety Guidelines and Warnings Automatic 1. Only clean ashes out of the stove when the To operate the fan - turn on the rheostat. unit has cooled down. Remove the plug by CAUTION: do not use chemicals or lifting on the handle using the tool provided. -
Page 28: Maintenance
maintenance Classic Door WARNING: Do not operate without either the Ash Plug properly seated or Handle Replacement the Ash Dump Plates screwed in place, excessive temperatures will result. 1. To remove the wooden door handle from unit—locate the 7/64" Allen key hole at the bottom of wooden handle. -
Page 29: Maintenance
maintenance Maintenance Ways to Prevent and Keep Unit WARNING: Do not clean the glass when it is hot. Free of Creosote WARNING: Do not use abrasive cleaners, a damp It is very important to carefully maintain your fire- cloth and glass cleaner is effective. place stove, including burning seasoned wood and WARNING: Do not use substitute materials. -
Page 30: Secondary Air Tube Removal/Installation
maintenance Secondary Air Tube Removal/Installation 3. Grasp front secondary air tube firmly with vise grips, using a hammer tap vise grips from right to left until air tube is released from grip. Remove. Repeat step to remove second airtube from front. 1. -
Page 31: Vertical Stainless Deflector Replacement
maintenance Vertical Stainless Deflector Replacement 7/16'' Nuts 7/16'' Bolts Slide left + down to remove. Reverse to replace. Vertical Deflector Remove 2 front air tubes 1. Remove 2 front secondary air tubes / vermiculite baffles as per page 22. 2. Loosen the two 7/16'' bolts + nuts to remove / replace vertical deflector. 3. -
Page 32: Main Assembly
parts list Main Assembly Part # Description 021-006 Left Side Heat Shield 021-007 Right Side Heat Shield 021-018 SS Smoke Deflector 021-020 Draft Control Lever 815-557 Rear Air Deflector 020-957 Baffle Bricks Complete (Set Of 2) 033-953 3/4 OD x 19-1/4 Air tube 4 Per Unit (Each) 846-570 7/8"... - Page 33 parts list F2450M Regency Freestanding Woodstove...
-
Page 34: Bases
parts list Bases Part # Description 021-911 Bottom heat Shield 850-126 Black Cast legs (Set Of 4) 850-128 Nickel Cast legs (Set Of 4) 075-914 Ashdrawer Bottom Heat Shield 942-110 Ashplug 820-249 Ashplug Tool 021-024 Blanking Plate 904-100 5/16" x 5 1/2 " Long Hex Head Bolt (Each) 820-468F Metal Washer 820-456... -
Page 35: Brick Kit
parts list 020-960 Brick Kit Complete Brick - Regular Full Size: 1-1/4" x 4-1/2" x 9" Brick Partial: 1-1/4" x 2" x 4-1/2" Brick Partial: 1-1/4" x 4-1/2" x 3-1/2" Brick Partial: 1-1/4" x 2" x 9" NOTE: This kit contains one spare brick in case of breakage. F2450M Regency Freestanding Woodstove... -
Page 36: Warranty
warranty Limited Lifetime Warranty FPI Fireplace Products International Ltd. (for Canadian customers) and Fireplace Products U.S., Inc. (for U.S. customers) (collectively referred to herein as “FPI”) extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation. The items covered by this limited warranty and the period of such coverage is set forth in the table below. - Page 37 warranty All warranty claims must be submitted by the dealer servicing the claim, including a copy of the Bill of Sale (proof of purchase by you). All claims must be complete and provide full details as requested by FPI to receive consideration for evaluation. Incomplete claims may be rejected.
- Page 38 warranty Limitations of Liability: The original purchaser’s exclusive remedy under this warranty, and FPI’s sole obligation under this warranty, express or implied, in contract or in tort, shall be limited to replacement, repair, or refund, as outlined above. IN NO EVENT WILL FPI BE LIABLE UNDER THIS WARRANTY FOR ANY INCIDENTAL OR CONSEQUENTIAL COMMERCIAL DAMAGES OR DAMAGES TO PROPERTY.
- Page 39 warranty Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
- Page 40 warranty F2450M Regency Freestanding Woodstove...
- Page 41 notes F2450M Regency Freestanding Woodstove...
- Page 42 notes F2450M Regency Freestanding Woodstove...
- Page 43 dimensions F2450M Regency Freestanding Woodstove...
- Page 44 Installer: Please complete the following information Dealer Name & Address: ___________________________________ ________________________________________________________ Installer: ________________________________________________ Phone #: ________________________________________________ Date Installed: ___________________________________________ Serial #: _________________________________________________ Printed in Canada Regency is a trademark of FPI Fireplace Products International Ltd. © Copyright 2022, FPI Fireplace Products International Ltd. All rights reserved.
