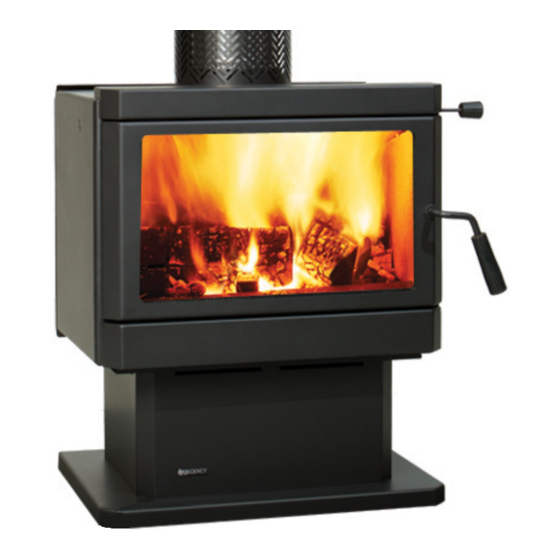

CARDINIA FREESTANDING WOOD FIRE
Model: F150B-1
PLEASE KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE
WARNING:
Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Refer to this manual. For assistance or
additional information consult an authorised installer, service agency or
the distributor.
FOR YOUR SAFETY
Do not store or use petrol or other flammable vapours and liquids in the
vicinity of this or any other appliance.
Installation and service must be performed by an authorised installer,
service agency or the gas supplier.
FPI - FIREPLACE PRODUCTS AUSTRALIA PTY LTD.
918-669d
April-22-2015
1 CONQUEST WAY, HALLAM, VICTORIA 3803
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products F150B-1
Summary of Contents for Regency Fireplace Products F150B-1
- Page 1 Owners & Installation CARDINIA FREESTANDING WOOD FIRE Model: F150B-1 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information consult an authorised installer, service agency or the distributor.
- Page 2 Thank-you for purchasing a REGENCY FIREPLACE PRODUCT. The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Data Badge................4 MAINTENANCE Unit Dimensions ..............5 Maintenance ................9 Heat Shield Position ..............5 Creosote ................9 - Ways to Prevent & Keep Units Free of Creosote ..9 INSTALLATION Glass Maintenance ..............9 Residential Installation............6 Door Latch Adjustment ............9 Safety Guidelines and Warnings ...........6 Wood Storage ................9 Brick Installation ..............6 Clearance to Combustibles ...........7... -
Page 4: Data Badge
COMPLIANCE PLATE NOTE: Regency units are constantly being This is a copy of the label that accompanies each F150B-1 Freestanding Wood Fire. We improved. Check the label on the unit and if have printed a copy of the contents here for there is a difference, the label on the unit is the your review. -
Page 5: Unit Dimensions
UNIT DIMENSIONS IMPORTANT HEAT SHIELD POSITION The heat shield must be raised if the stove is installed where the rear wall is combustible. Remove the heat shield by undoing the 4 bolts. Move the heat shield up to align the bottom screw locations screw holes in the firebox and secure in place. -
Page 6: Installation
INSTALLATION RESIDENTIAL 9) Do not connect this unit to a chimney flue even reduced heat output. Too tall a chimney may prompt excessive draft which can re- serving another appliance. INSTALLATION sult in very short burn times and excessive heat output. 10) Do not use grates or andirons or other 1) Please read this entire manual before you methods for supporting fuel. -
Page 7: Clearance To Combustibles
INSTALLATION MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS Flo-Met Hawkwind AHD Special Super Single Standard Insulated *(1) *(2) *(3) 700mm 700mm 750mm 200mm 225mm 250mm 450mm 450mm 450mm 192mm 192mm 192mm 147mm 147mm 147mm 450mm 450mm 450mm 880mm 880mm 880mm 1105mm 1105mm 1105mm Floor Protection A combustible floor must be protected by non-combustible material (like... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS AIR SLIDE CONTROL FIRST FIRE OPERATING INSTRUCTIONS Both the primary and air wash drafts are control- When your installation is completed and in- led by the control rod located on the right side spected you are ready for your first fire. With your unit now correctly installed and safety of the unit (when facing the unit). -
Page 9: Maintenance
MAINTENANCE CREOSOTE MAINTENANCE 9) During the first few days it may be more difficult to start the fire. As you dry out your firebrick and your masonry flue, your draft When wood is burned slowly, it produces It is very important to carefully maintain your will increase. -
Page 10: Parts List
PARTS LIST STOVE ASSEMBLY Part # Description 1141704 Firebrick Retaining Bracket 1141703 2mm Back Shield 1141702 Inner Back Shield Primary Air Opening 8010104 Secondary Air Tube 8010108 Firebrick Set Pedestal 8010102 Ash Lip Panel 8010101 Top Panel 8010110 Door Assembly (without Handle) 8010114 Door Handle Set 8010106... -
Page 11: Warranty
Regency Fireplace Products and evaluated for manufacturer defect. The authorised selling dealer is responsible for all in-fi eld service work carried out on your Regency product. Regency Fireplace Products will not be liable for results or costs of workmanship from unauthorised service persons or dealers. - Page 12 Register your Regency warranty online ® www.regency-fire.com.au Reasons to register your product online today! • View and modify a list of all your registered products. • Request automatic email notification of new product updates. • Stay informed about the current promotions, events, and special offers on related products.
