www.regency-fire.com

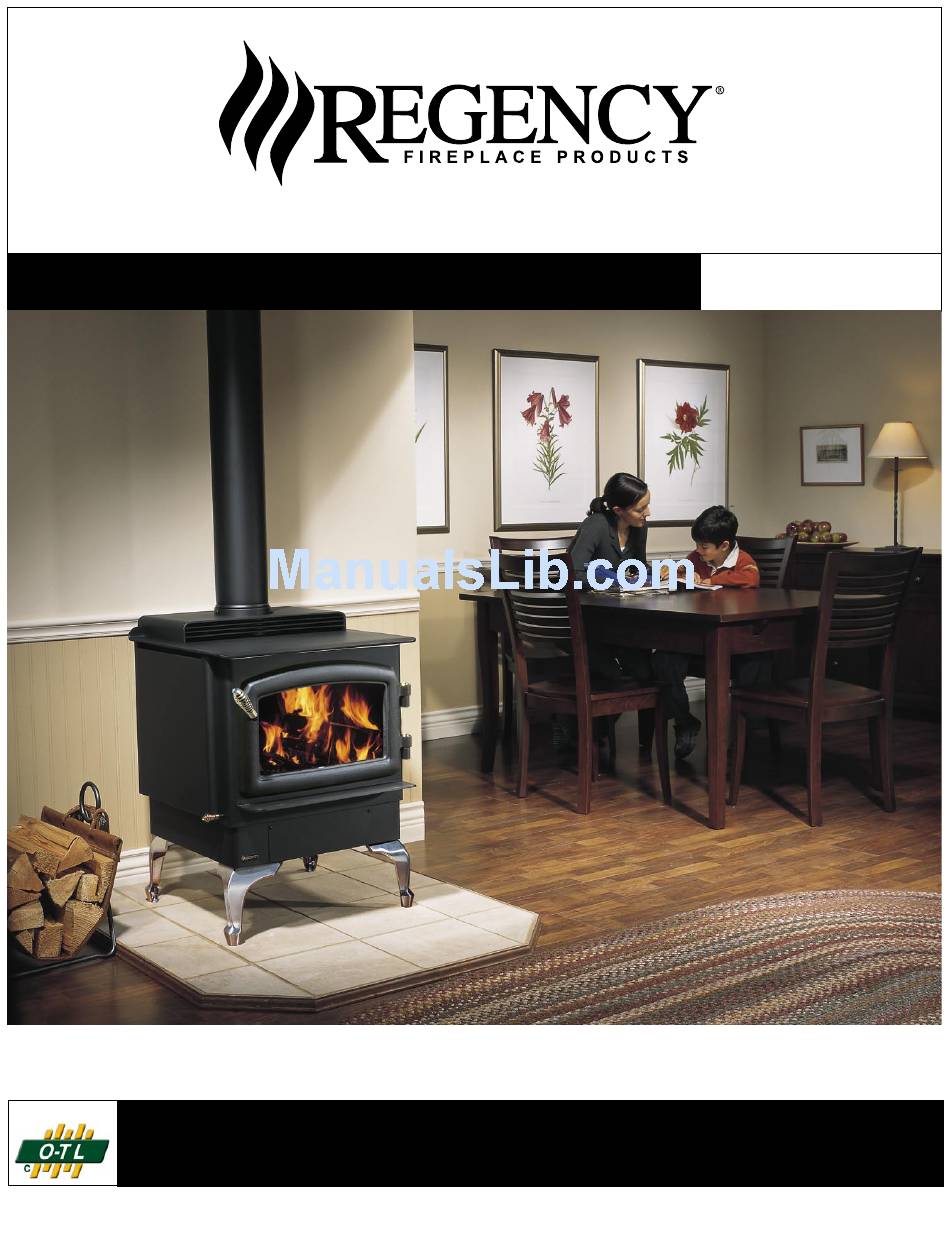

Freestanding Woodstove
Owners &
Installation Manual
MODELS:
F2400M
S2400M
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
918-154b
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
02/15/06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Regency Fireplace Products F2400M
Summary of Contents for Regency Fireplace Products F2400M
- Page 1 Freestanding Woodstove Owners & Installation Manual MODELS: F2400M S2400M Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference. 918-154b FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4...
- Page 2 Thank-you for purchasing a REGENCY FIREPLACE PRODUCT. The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area.
-
Page 3: Table Of Contents
TABLE OF CONTENTS THE REGENCY FREESTANDING WOOD STOVE SAFETY LABEL MAINTENANCE Safety Label for F2400m ..........4 Maintenance ..............21 Safety Label for S2400M ..........5 Creosote ..............21 Maintenance OfGold-plated Doors ......21 Latch Adjustment ............21 INSTALLATION Door Gasket ..............21 Glass Maintenance ............21 Unit Dimensions ............6 Wood Storage ..............21... -
Page 4: Safety Label
SAFETY LABEL This is a copy of the label that accompanies each NOTE: Regency units are constantly being Regency Freestanding Woodstove (F2400M). improved. Check the label on the unit and if We have printed a copy of the contents here there is a difference, the label on the unit is the for your review. -
Page 5: Safety Label For S2400M
SAFETY LABEL NOTE: Regency units are constantly being This is a copy of the label that accompanies improved. Check the label on the unit and if each Regency Medium Freestanding Step there is a difference, the label on the unit is the Stove (S2400M). -
Page 6: Installation
INSTALLATION UNIT DIMENSIONS Regency Freestanding Woodstove... -
Page 7: Residential Installation
MODULAR INSTALLATION OPTIONS The following items are required when assembling your Regency Stove. F2400M unit - the Rear Heat Deflector is supplied with the stove, but if you choose not to use it you must use the Airmate instead. -
Page 8: Room Air
Clearances may only be reduced by means approved by the regulatory authority. Residential Installation “C” Vent (Single Wall) Unit From Unit From Corner From Flue Center-Line Medium F2400M with Airmate 16" (406 mm) 11" (279 mm) 6" (152 mm) 28" (710 mm) 17.5" (444 mm) 17.5"... -
Page 9: Floor Protection
Min. Min.Hearth Unit Unit Center-line Width to Rear Wall Medium F2400M with Airmate 15" (381 mm) 5.5" (139 mm) 27" (685 mm) 12" (304 mm) 54" (1371 mm) 48" (1219 mm) with Rear Deflector 15" (381 mm) 6.5" (165 mm) 27"... -
Page 10: Stove Assembly Prior Toinstallation
All units require either the pedestal or 4 legs at- and must be installed unless the optional airmate back (onto a soft surface to prevent scratch- tached to the base. The F2400M stove requires has been selected. It stops the heat radiated from ing). -
Page 11: Step-By-Step Chimney And Connector Installation
INSTALLATION STEP-BY-STEP Leg and Bottom Shield Assembly 8) To complete your chimney installation, install the double wall connector pipe from the F2400M & S2400M CHIMNEY AND stove’s flue collar to the chimney support device. Bottom Shield 020-911 CONNECTOR 9) If you are using a horizontal connector,... -
Page 12: Masonrychimney
INSTALLATION MASONRY CHIMNEY Ensure that a masonry chimney meets the mini- mum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. -
Page 13: Combustible Wall Chimneyconnector Pass-Throughs
INSTALLATION COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS Method A: 12" (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5" (89 mm) brick and a 5/8" (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specification for Clay Fire Linings) or its equivalent. -
Page 14: Recommended Heights For Woodstove Flue
INSTALLATION RECOMMENDED HEIGHTS FOR WOODSTOVE FLUE Simple rules on draft (refer to Table 1). 3) Add 4% overall for each 1000' above sea Recommended Flue Height level. Elevation Example a) Example b) 1) At sea level minimum height is 12' Example: a) 1000' 18.72'... -
Page 15: Mobile Home Installation
INSTALLATION MOBILE HOME INSTALLATION Once you have properly marked the position of In addition to standard installation instructions your unit and the floor protection as outlined in the following requirements are mandatory for installation in a mobile home. the Residential Installation items #1 through #8, a supply of fresh air has to be supplied to your 1) The stove must be permanently bolted to unit. -
Page 16: Listed Componentsfor Mobile Homeinstallation
ICC EXCEL 2100 tap it into place with a hammer. A tighter fit The Regency F2400M and S2400M Freestand- will ensure the tube will not move when the Qty.Part #... -
Page 17: Brick Installation
INSTALLATION BRICK INSTALLATION STEP-BY-STEP 4) Push the ash plug into the hole inside the firebox and replace all the bricks except OPTIONAL for the brick over the ash plug (see brick Firebrick is included to extend the life of your diagram in the Brick Installation section). - Page 18 INSTALLATION Blower/Fan (846-515) 1) Remove the two screws from the top of the fan housing. 2) Slide the fan up into the rear heat shield. 3) After aligning holes, secure the fan to the rear heat shield using the two screws removed earlier.
-
Page 19: Operating Instructions
OPERATING INSTRUCTIONS FIRST FIRE OPERATING 9) During the first few days it may be more difficult to start the fire. As you dry out your INSTRUCTIONS firebrick and your masonry flue, your draft When your installation is completed and in- will increase. -
Page 20: Fan Operation
OPERATING INSTRUCTIONS FAN OPERATION Push the ashes down the hole into the ash 4) If you have smoke detectors, prevent smoke drawer, the large pieces can be left in the spillage as this may set off a false alarm. firebox and burned during the next fire or Automatic removed through the door opening. -
Page 21: Maintenance
MAINTENANCE LATCH ADJUSTMENT MAINTENANCE 5) The chimney and chimney connector should be inspected at least once every two months during the heating season to determine is a It is very important to carefully maintain your The door latch may require adjustment as the creosote buildup has occured. -
Page 22: Parts List
7/8" Adhesive Tape Gasket 910-157/P Fan/Blower Motor (120 V) 820-184 Glass Retainer Clips (8/set) Screw - 1/4 - 20 x 3/8" 033-953 Air Tube - 3/4" F2400M (Qty: 4) 948-170/P Small Glass Retainer F2400M 020-957 Baffle (set) F2400M 846-973 Door Handle Assembly 815-557 Rear Air Deflector... -
Page 23: S2400M Step Stove Main Assembly
PARTS LIST S2400M STEP STOVE MAIN ASSEMBLY Part# Description Part# Description 846-913 Door Assy- Medium Gold S2400M (no glass) 846-515 Complete Fan/Blower Assy (120 V) 846-915 Door Assy-Medium Black S2400M (no glass) 910-684 Power Cord (120 V) 846-302 Glass - Replacement - S2400M 910-142 Thermodisc Fan Auto ON/OFF 936-243... -
Page 24: Pedestal, Bottom Shield & Leg Options
PARTS LIST PEDESTAL, BOTTOM SHIELD & LEG OPTIONS Part# Description 020-915 Pedestal - Medium 904-257 Large Magnet Catch Blanking Plate - Pedestal 850-100 Ashdrawer Kit - Pedestal Ashdrawer - Pedestal Ashdrawer Lid Assy 942-110 Ash Plug 820-249 Ash Plug Tool Handle 020-911 Bottom Shield - Medium Blanking Plate - Btm Shield... -
Page 25: Firebrick
PARTS LIST FIREBRICK Part# Description 902-111 Brick - Regular Full Size: 1-1/4" x 4-1/2" x 9" 802-147 Brick Partial: 1-1/4" x 4-1/2" x 3-1/2" 802-122 Brick Partial: 1-1/4" x 4-1/2" x 2" 802-152 Brick Partial: 1-1/4" x 2" x 9" Regency Freestanding Woodstove... - Page 26 NOTES Regency Freestanding Woodstove...
- Page 27 WARRANTY Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our door. Regency Industries Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Regency Product.
- Page 28 Regency fireplace products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our door. Fireplace Products International Ltd. is pleased to extend this Limited Lifetime Warranty to the original purchaser of a Regency Product.
