Owners &

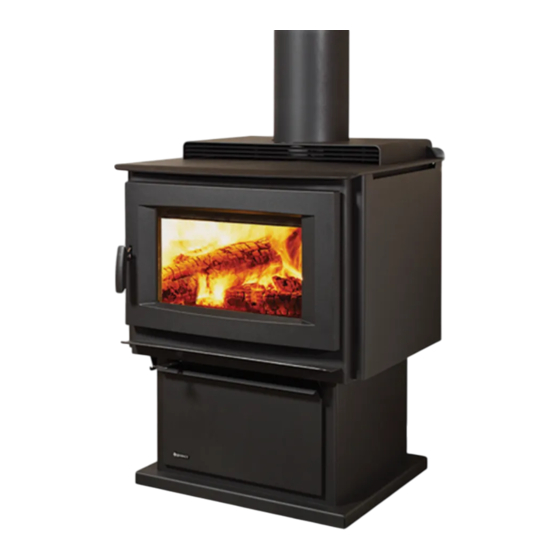

Pro Series Freestanding Woodstove
Installation Manual
French Manual: http://ow.ly/Zv2Lw
Manuel en Français: http://ow.ly/Zv2Lw
www.regency-fire.com
MODEL:
F5100
F5100 Video
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
919-550d
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
12.17.18
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products F5100
Summary of Contents for Regency Fireplace Products F5100
- Page 1 Installation Manual French Manual: http://ow.ly/Zv2Lw Manuel en Français: http://ow.ly/Zv2Lw www.regency-fire.com MODEL: F5100 F5100 Video Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference. 919-550d FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
- Page 2 Note: Due to the high efficiency of the F5100 unit, This unit requires the use of double wall pipe from the stove top to either wall or roof exit. A minimum of 36" vertical rise is required prior to using any elbows.
-
Page 3: Table Of Contents
Seasoned wood ............22 Safety Label for F5100 ..........4 Operating Instructions ..........23 Unit Dimensions ............5 Draft Control ..............23 Wood Stove Outside Air Dimensions ......6 First Fire ..............23 Residential Installation...........7 Fan Operation..............24 Modular Installation Options ..........7 Ash Disposal..............24 Room Air - Important .............7 Safety Guidelines and Warnings .........24... -
Page 4: Safety Label For F5100
SAFETY LABEL FOR F5100 DO NOT REMOVE THIS LABEL LISTED ROOM HEATER, SOLID FUEL TYPE, ALSO FOR USE IN MOBILE HOME INSTALLATION MODEL: REGENCY FREESTANDING STOVE - F5100 OMNI-Test Laboratories, Inc. TESTED TO: UL-1482 -2011 / ULC-S627-00 Report #219-S-16-2 INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. -
Page 5: Unit Dimensions
16 " [735mm] " 8 " [689mm] [181mm] 3" [76mm] Shown with optional fan 29" [737mm] ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS. F5100 Regency Freestanding Woodstove... -
Page 6: Wood Stove Outside Air Dimensions
WOOD STOVE OUTSIDE AIR DIMENSIONS With pedestal from base of unit to centerline 5-1/2" (138mm) Rear F5100 Regency Freestanding Woodstove... -
Page 7: Residential Installation
WARNING: ONLY USE SPECIFIED COMPONENTS. The following items are required when assembling your Regency Stove. F5100 unit - the Rear Heat Deflector is supplied with the stove, but if you choose not to use it you must use the Airmate instead. -
Page 8: Stove Assembly Prior To Installation
The F5100 unit requires the pedestal attached holes in the has been selected. It stops the heat radiated to the base. The F5100 stove requires either front bottom left from the flue collar from overheating the rear the Airmate or Rear Heat Deflector on top of corner of the wall. -
Page 9: Minimum Clearance To Combustible Materials
H = Maximum depth of alcove - 48" (1219 mm) G= Minimum width of alcove - 63" (1600 mm) ROOF EXIT NOTE: This clearance is also required for air space between the appliance and wall/ceiling. WALL EXIT F5100 Regency Freestanding Woodstove... - Page 10 49-1/8" 8" Canada 53-1/8" 8" 53-1/8" 8" 53-1/8" 8" The rear clearance to combustibles is less than 6" (for corner installations the rear corners may be angled to take advantage of the closer clearances. 10 | F5100 Regency Freestanding Woodstove...
-
Page 11: Wall Exit Clearance Factory Built Chimney
Minimum vertical of 36" before any offset. 6" [152mm] Horizontal Maximum of 36" with 1/4" rise per foot. NOTE: Recommend using 2-45º instead of 90º to improve draft and performance. Min. 36" Vertical Max. 36" Rise Horizontal 10" [254mm] F5100 Regency Freestanding Woodstove... -
Page 12: Masonry Fireplace
Minimum vertical of 36" before any offset. Horizontal Maximum of 36" with 1/4" rise per foot. NOTE: Recommend using 2-45º instead of 90º to improve draft and performance. 6" [152mm] Min. 36" Vertical Max. 36" Horizontal Rise 10" [254mm] 12 | F5100 Regency Freestanding Woodstove... -
Page 13: Combustible Wall Chimney Connector Pass-Throughs
Cover opening with and support chimney section on both sides with 24 gage minimum sheet metal supports. See that the supports are fastened securely to wall surfaces on all sides. Make sure fasteners used to secure chimney flue liner. F5100 Regency Freestanding Woodstove... -
Page 14: Step-By-Step Chimney And Connector Installation
6. Fasten the raincap with spark screens (if required) to the top of your chimney. 7. For optimum efficiency when installing into a masonry chimney, size accordingly, i.e. the 8" (203.2mm) flue dia. is 50.3 sq.in. Horizontal Installation (1277.62mm 14 | F5100 Regency Freestanding Woodstove... -
Page 15: Recommended Heights For Woodstove Flue
16.0 18.5 20.0 7000-8000 15.5 16.5 19.0 20.5 8000-9000 16.0 17.0 20.0 21.0 9000-10000 16.5 17.5 20.5 22.0 NOTE: No more than one offsets (two elbows) allowed. Two 45 elbows equal one 90 elbow. Table 1 F5100 Regency Freestanding Woodstove... -
Page 16: Mobile Home Installation
11. WARNING: DO NOT INSTALL IN A SLEEPING ROOM OF A MOBILE HOME. 12. Use silicone to create an effective vapour barrier at the location where the chimney or other component penetrates to the exterior of the structure. 16 | F5100 Regency Freestanding Woodstove... -
Page 17: Optional Outside Air Kit
Mark the position of your unit as outlined in the "General Information" and "Clearances to Combustibles" section of the manual. Pipe fresh air into the pedestal area by using a minimum 4" duct pipe with a mesh grill at the outside termination. Rear View F5100 Regency Freestanding Woodstove... -
Page 18: Listed Components For Mobile Home Installation
9248AN Square Ceiling support 11" 9248 Rain Cap 9249V 0/12 - 6/12 Flashing The Regency F5100 Freestanding pedestal 9959 Storm collar units are approved for installation in a Mobile 9217 36" Chimney length (also in Home if one of the following pipe systems is used. -
Page 19: Stainless Steel Smoke Deflector Installation / Replacement
Return edge of smoke deflector seated under glass wash. Ensure defector is seated so bolts are situated at the top of the keyhole before tightening. Hand tighten bolts only. * Actual deflector may not be exactly as shown F5100 Regency Freestanding Woodstove... -
Page 20: Brick Installation
2" x 9" 3-1/2" x 4-1/2" 1-3/4" x 4-1/2" 2" x 7" AD brick NOTE: The "AD" brick covers the Ash Dump hole that is used when the Ash Drawer Kit is installed. Final Install 20 | F5100 Regency Freestanding Woodstove... -
Page 21: Fan Installation
Wiring errors can cause improper and dangerous operation. Neutral Manual/ Green Live Ground Auto 120V AC Switch Switch 60 Hz Fan Thermodisc (normally open) Black Black Black Ground Wiring Diagram F5100 Regency Freestanding Woodstove 908-126a 04/08/14... -
Page 22: Seasoned Wood
Two dry pieces banged together sound hollow; wet pieces sound solid and dull. • Dry wood weighs much less than wet wood. • Split a piece of wood. If the exposed surface feels damp, the wood is too wet to burn. 22 | F5100 Regency Freestanding Woodstove... -
Page 23: Operating Instructions
- slide to the left to open, and to decrease - slide to fully open position, add two or three seasoned the right closed. The F5100 unit has a secondary logs to your fire. Form a trench in the ash bed 12. -
Page 24: Fan Operation
Pedestal Units: make sure the cover lid is off. or to green or freshly cut hardwoods. 4. The firebricks are brittle and can be damaged if the plug is replaced carelessly or pieces that are too large are forced through the hole. 24 | F5100 Regency Freestanding Woodstove... - Page 25 Burning coal will cause a sulfur-based compound to coat the catalyst. Revert to burning wood and fire the combustor to elevated temperatures for one hour. F5100 Regency Freestanding Woodstove...
-
Page 26: Maintenance
3. Only burn seasoned wood! Avoid burning wet or green wood. Seasoned wood has been dried at least one year. 26 | F5100 Regency Freestanding Woodstove... -
Page 27: Catalytic Combustor
– off has been achieved, to the 14.000 amount of smoke leaving the chimney when the smoke is not routed (by- pass open) through the combustor. F5100 Flameguard & Catalyst F5100 Regency Freestanding Woodstove Mass = 4.649 pounds TOTAL AREA FOR AIR FLOW = 37.396... - Page 28 NOTE: Replacement combustors can be retrieved from Applied Ceramics or Contact your local Regency Dealer for details. DO NOT OPERATE THE APPLIANCE IF COMBUSTOR BECOMES INACTIVE - DO NOT OPERATE WITHOUT COMBUSTOR. F5100 Airtube Replacement 28 | F5100 Regency Freestanding Woodstove...
-
Page 29: Bypass Door Gasket Replacement
6. Reverse steps to reinstall - ensure the pass rod is seated with the channel on the pass door. (Unit viewed as transparent to facilitate view) Channel Pass rod Loosen 3 rear nuts F3500 Damper Assembly Draft F5100 Regency Freestanding Woodstove... -
Page 30: Secondary Air Tube Removal / Installation
Firmly grip center of air tube with vise grips, use hammer to tap vise grips from left to right until the tube bottoms out into the air channel on right. 5. Reverse steps to reassemble stove. F5100 Airtube Replacement 30 | F5100 Regency Freestanding Woodstove... -
Page 31: Side Baffle Installation / Removal
This edge to outside of firebox 3. Manoeuvre the side baffle underneath the upper corner filler, then let the baffle rest on the side of the combustor housing. 4. Repeat process on other side. Corner filler F5100 Regency Freestanding Woodstove... - Page 32 Use only high temperature anti seize lube. (ie. never seize) Check glass for cracks Replace if required. Clean blower motor Disconnect power supply. Remove and clean blower. *DO NOT LUBRICATE* Inspect and clean chimney Annual professional chimney cleaning recommended. 32 | F5100 Regency Freestanding Woodstove...
-
Page 33: F5100 Stove Main Assembly
F5100 STOVE MAIN ASSEMBLY Part # Description Part # Description 051-539 Cast Door Assembly 051-538 Removable Arm Assembly 156-004 Side Heat Shield RH 051-018 Handle Holder 051-005 Side Heat Shield LH 051-530 Catalytic Combustor Assembly (not shown) Firebox Assembly 063-954 Airtube 1"... -
Page 34: F5100 Stove Brick Layout
F5100 STOVE BRICK LAYOUT 051-960 Brick Set Complete Fire bricks Size 4-1/2" x 9" 2" x 9" 3-1/2" x 4-1/2" 1-3/4" x 4-1/2" 2" x 7" AD Brick 34 | F5100 Regency Freestanding Woodstove... -
Page 35: Door Assembly
SCREW 1/4-20 x 3/8 TUSS HD PHIL ZINC PD (ea) 940-384/P GLASS CERAMIC 904-146 SCREW #10 x 1/2 SELF TAP PAN HD PHILIPS (ea) 936-243 TAPE 7/8 WINDOW ADHESIVE 0904-513 HEX BOLT 1/4-20 x 3/4 LG. (ea) 051-057 SIDE GASKET BRACKET (ea) F5100 Regency Freestanding Woodstove... -
Page 36: Warranty
At all times FPI reserves the right to inspect reported complaints on location in the field claimed to be defective prior to processing or authorizing of any claim. Failure to allow this upon request will void the warranty. Revision Date: September 2018 Regency Wood Products Warranty 36 | F5100 Regency Freestanding Woodstove... - Page 37 Freight damages for products or parts are not covered under the terms of the warranty. Products made or provided by other manufacturers and used in conjunction with the FPI appliance without prior authorization from FPI may void this warranty. Revision Date: December 2016 Regency Wood Products Warranty F5100 Regency Freestanding Woodstove...
- Page 38 To provide the best support for your product, we request that you complete a product registration form at http://www.regency-fire.com/Customer-Care/Warranty-Registration.aspx within ninety (90) days of purchase. 38 | F5100 Regency Freestanding Woodstove Revision Date: December 2016 Regency Wood Products Warranty...
- Page 39 For fireplace care and tips and answers to most common questions please visit our Customer Care section on our Web Site. Please feel free to contact your selling dealer if you have any questions about your Regency product. F5100 Regency Freestanding Woodstove...
- Page 41 $35 for cover shipping and handling. Please allow 2-4 for delivery. All warranty claims must be sent to: APPLIED CERAMICS Customer Service Department 5555 Pleasantdale Road Doraville, GA 30340 Tel: (678) 735-4937 * Prices subject to change. F5100 Regency Freestanding Woodstove...
- Page 42 Versagrid Catalytic Converter, including any warranty or merchantability of fi tness for a particular use. NO LABOR WILL APPLY. All warranty claims must be sent to: Regency Fireplace Products By Authorized Regency Dealer * Prices subject to change.
- Page 44 Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________ F5100 Video Regency is a trademark of FPI Fireplace Products International Ltd. Printed in Canada © Copyright 2019, FPI Fireplace Products International Ltd. All rights reserved.
