Model
Cordwood BTU's
Emissions (grams/hr) EPA Certified
Efficiency (EPA HHV)*
Efficiency (EPA LHV)
Flue Size
US Biomass Tax Rebate Eligible
Maximum Log Size
Firebox Size
*US Biomass Tax Rebate eligibility is based on the HHV value being
greater than or equal to 75%.

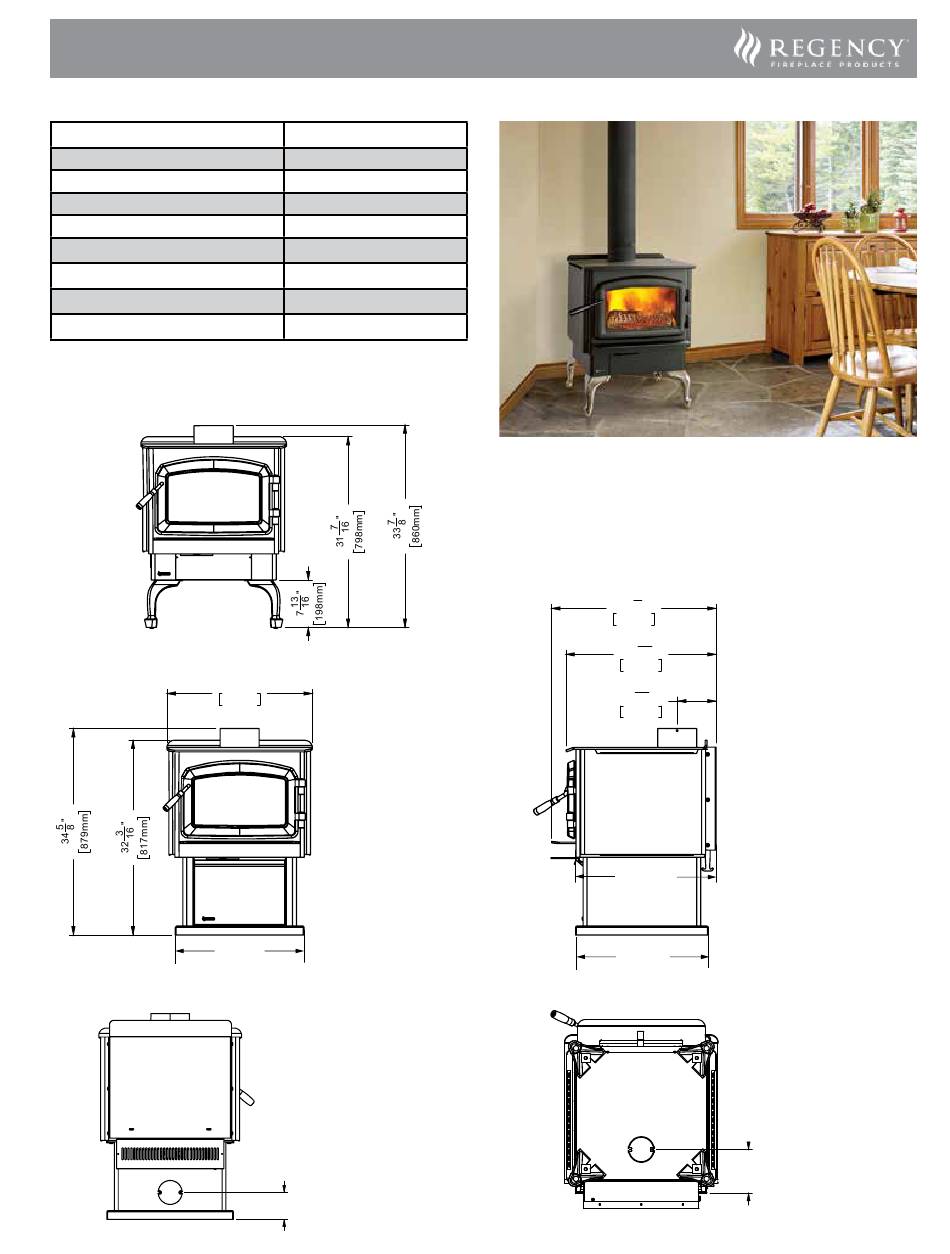

UNIT DIMENSIONS
24"
610mm
Images for OUTSIDE AIR DIMENSIONS
OUTSIDE AIR DIMENSIONS
21-1/4"
[540mm]
Rear
Front
F2450 Wood Medium Stove
F2450
75,000 BTU's
2.3 grams/hr
73.3%
78.4%
6" (152mm)
No
18" (457 mm)
2.3 cu.ft.
24"
610mm
21-1/4"
[540mm]
4-9/16" (115mm)
1
27
"
8
690mm
13
24
"
16
630mm
7
6
"
16
163mm
23-1/8"
[587mm]
(from fuel door opening)
21-1/2"
[546mm]
Images for OUTSIDE AIR DIMENSIONS
1
27
"
8
690mm
13
24
"
16
630mm
7
6
"
16
163mm
23-1/8"
[587mm]
(from fuel door opening)
4-9/16" (115mm)
Rear
21-1/2"
[546mm]
Front
6-13/16"(173mm)
Rear
F2450 Wood Stove |
1
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products F2450
Summary of Contents for Regency Fireplace Products F2450
- Page 1 F2450 Wood Medium Stove Model F2450 Cordwood BTU’s 75,000 BTU’s Emissions (grams/hr) EPA Certified 2.3 grams/hr Efficiency (EPA HHV)* 73.3% Efficiency (EPA LHV) 78.4% Flue Size 6" (152mm) US Biomass Tax Rebate Eligible Maximum Log Size 18” (457 mm) Firebox Size 2.3 cu.ft.
-
Page 2: Minimum Clearance To Combustible Materials
From Corner From Flue Center-Line Medium F2450M with Airmate 15" (381mm) 8" (203mm) 6" (152mm) 27" (686mm) 14.5" (368mm) 18" (457mm) with Rear Deflector 15" (381mm) 10" (254mm) 6" (152mm) 27" (686mm) 16.5" (419mm) 18" (457mm) | F2450 Wood Stove... -
Page 3: Floor Protection
48" (1219mm) 18" (457mm) 33-11/16" (856mm) 8" (203mm) 46" (1168mm) 16" (406mm) 33-11/16" (856mm) 8" (203mm) F2450M with Rear Canada 50" (1270mm) 18" (457mm) 33-11/16" (856mm) 8" (203mm) Deflector 48" (1219mm) 16" (406mm) 33-11/16" (856mm) 8" (203mm) F2450 Wood Stove |... - Page 4 28-5/16" (727mm) 33-11/16" (856mm) 60-7/8" (1545mm) 50-3/4" (1289mm) 26-7/8" (681mm) Residential Close Clearance (To be installed with required pipe components) Canada 33-11/16" (856mm) 60-1/16" (1527mm) 50-1/8" (1273mm) 26-5/16" (676mm) 33-11/16" (856mm) 58-1/16" (1475mm) 48-3/4" (1238mm) 24-7/8" (610mm) | F2450 Wood Stove...
-
Page 5: Mobile Home Installation
11. WARNING: DO NOT INSTALL IN A SLEEPING ROOM OF A MOBILE HOME. 12. Use silicone to create an effective vapour barrier at the location where the chimney or other component penetrates to the exterior of the structure. F2450 Wood Stove |... - Page 6 4 screws. 4 screws Diagram 2 Diagram 5 9. Place unit into position and install the mandatory outside air kit. See «Mobile Home installation» section in this manual. Diagram 3 | F2450 Wood Stove 919-757a 12.10.19...
- Page 7 6. Fasten the raincap with spark screens (if required) to the top of your chimney. 7. To complete your chimney installation, install the double wall connector pipe from the stove’s flue collar to the chimney support device. Horizontal Installation F2450 Wood Stove |...
-
Page 8: Masonry Chimney
Maintain proper clearance to the structure as recommended by the manufacturer. The chimney must be the required height above the roof or other obstructions for safety and proper draft operation. The space heater is to be connected to a factory-built chimney conforming to CAN/ULC-S629, Standard for 650 C Factory-Built Chimneys. | F2450 Wood Stove... -
Page 9: Combustible Wall Chimney Connector Pass-Throughs
Cover opening with and support chimney section on both sides with 24 gage minimum sheet metal supports. See that the supports are fastened securely to wall surfaces on all sides. Make sure fasteners used to secure the metal chimney connector do not penetrate chimney flue liner. F2450 Wood Stove |... -
Page 10: Recommended Heights For Woodstove Flue
Example b) 1000' 18.72' 21.84' 2000' 19.44' 22.68' 5000' 21.60' 25.20' 8000' 23.76' 27.72' WARNING: CAUTION: The structural integrity of the mobile home DO NOT INSTALL IN SLEEPING floor, wall and ceiling/roof must be maintained. ROOM | F2450 Wood Stove...
