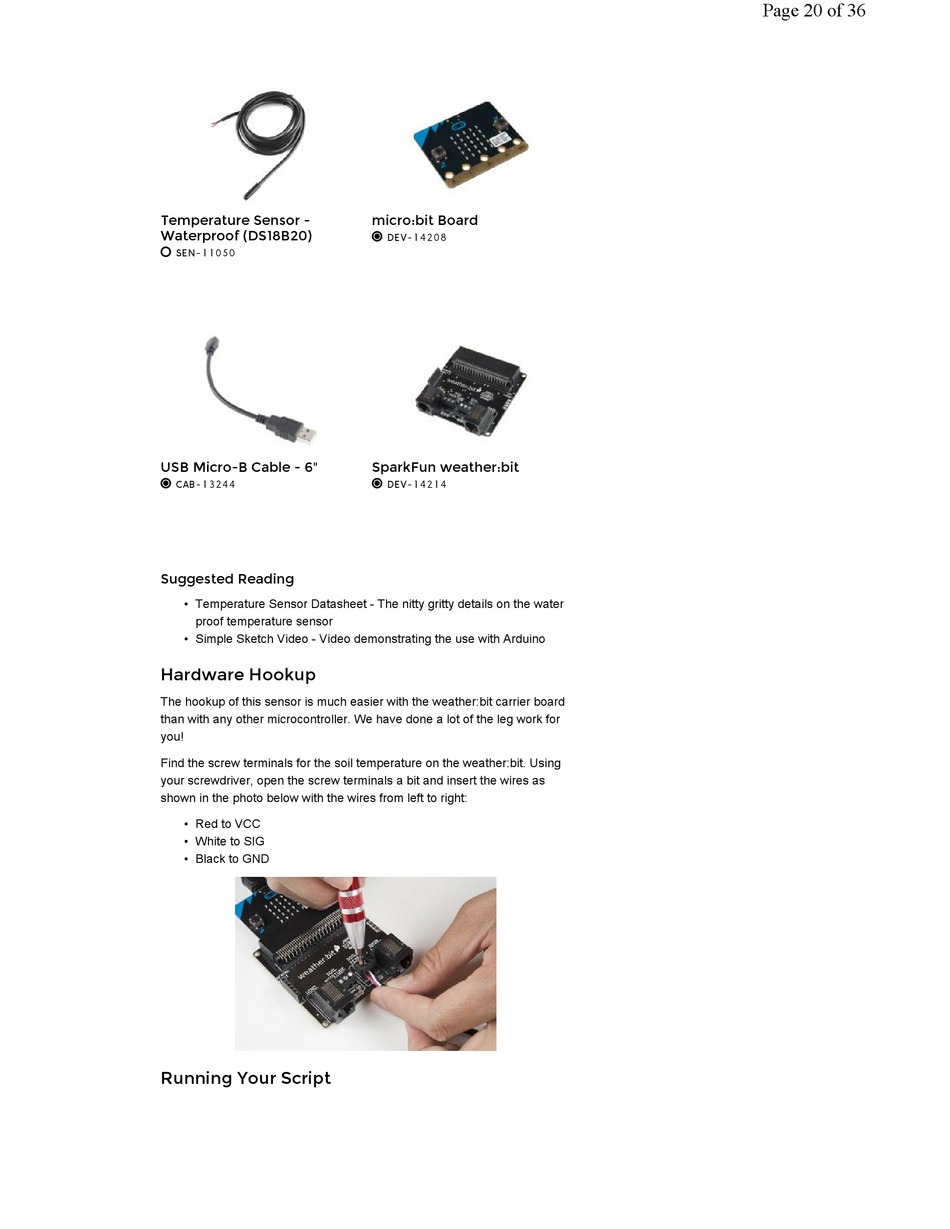

sparkfun micro climate Kit Experiment Manual page 20

Temperature Sensor -
Waterproof (DS18B20)
 SEN- 11050
USB Micro-B Cable - 6"
 CAB-13244
Suggested Reading
• Temperature Sensor Datasheet - The nitty gritty details on the water
proof temperature sensor
• Simple Sketch Video - Video demonstrating the use with Arduino
Hardware Hookup
The hookup of this sensor is much easier with the weather:bit carrier board
than with any other microcontroller. We have done a lot of the leg work for
you!
Find the screw terminals for the soil temperature on the weather:bit. Using
your screwdriver, open the screw terminals a bit and insert the wires as
shown in the photo below with the wires from left to right:
• Red to VCC
• White to SIG
• Black to GND
Running Your Script
micro:bit Board
 DEV- 14208
SparkFun weather:bit
 DEV- 14214
