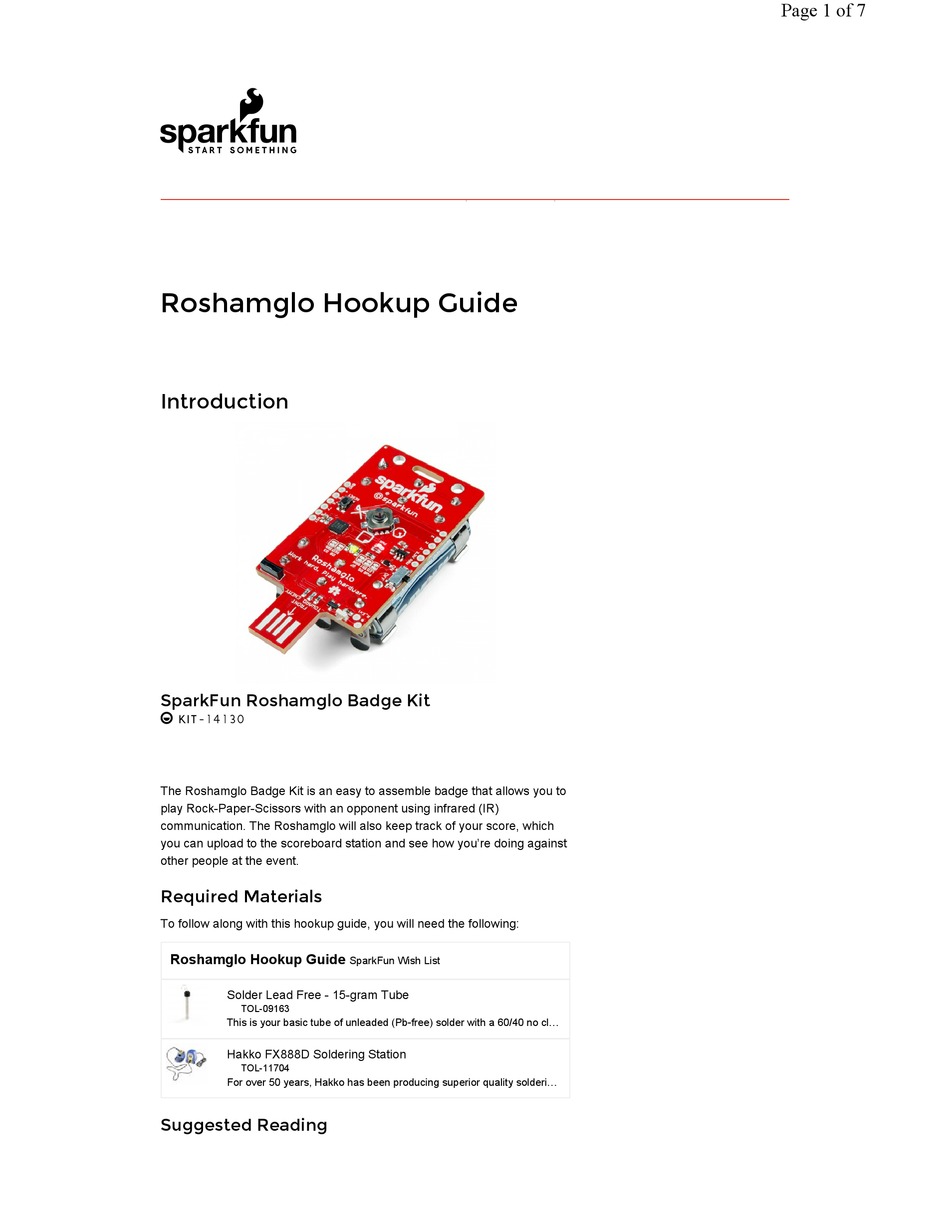

Roshamglo Hookup Guide
Introduction
SparkFun Roshamglo Badge Kit
 KIT-1413 0
The Roshamglo Badge Kit is an easy to assemble badge that allows you to
play Rock-Paper-Scissors with an opponent using infrared (IR)
communication. The Roshamglo will also keep track of your score, which
you can upload to the scoreboard station and see how you're doing against
other people at the event.
Required Materials
To follow along with this hookup guide, you will need the following:
Roshamglo Hookup Guide
Solder Lead Free - 15-gram Tube
TOL-09163
This is your basic tube of unleaded (Pb-free) solder with a 60/40 no cl...
Hakko FX888D Soldering Station
TOL-11704
For over 50 years, Hakko has been producing superior quality solderi...
Suggested Reading
SparkFun Wish List
Page 1 of 7
