UNIS BIGFOOT SMASH Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIGFOOT SMASH and is the answer not in the manual?

Questions and answers

Related Manuals for UNIS BIGFOOT SMASH

Summary of Contents for UNIS BIGFOOT SMASH

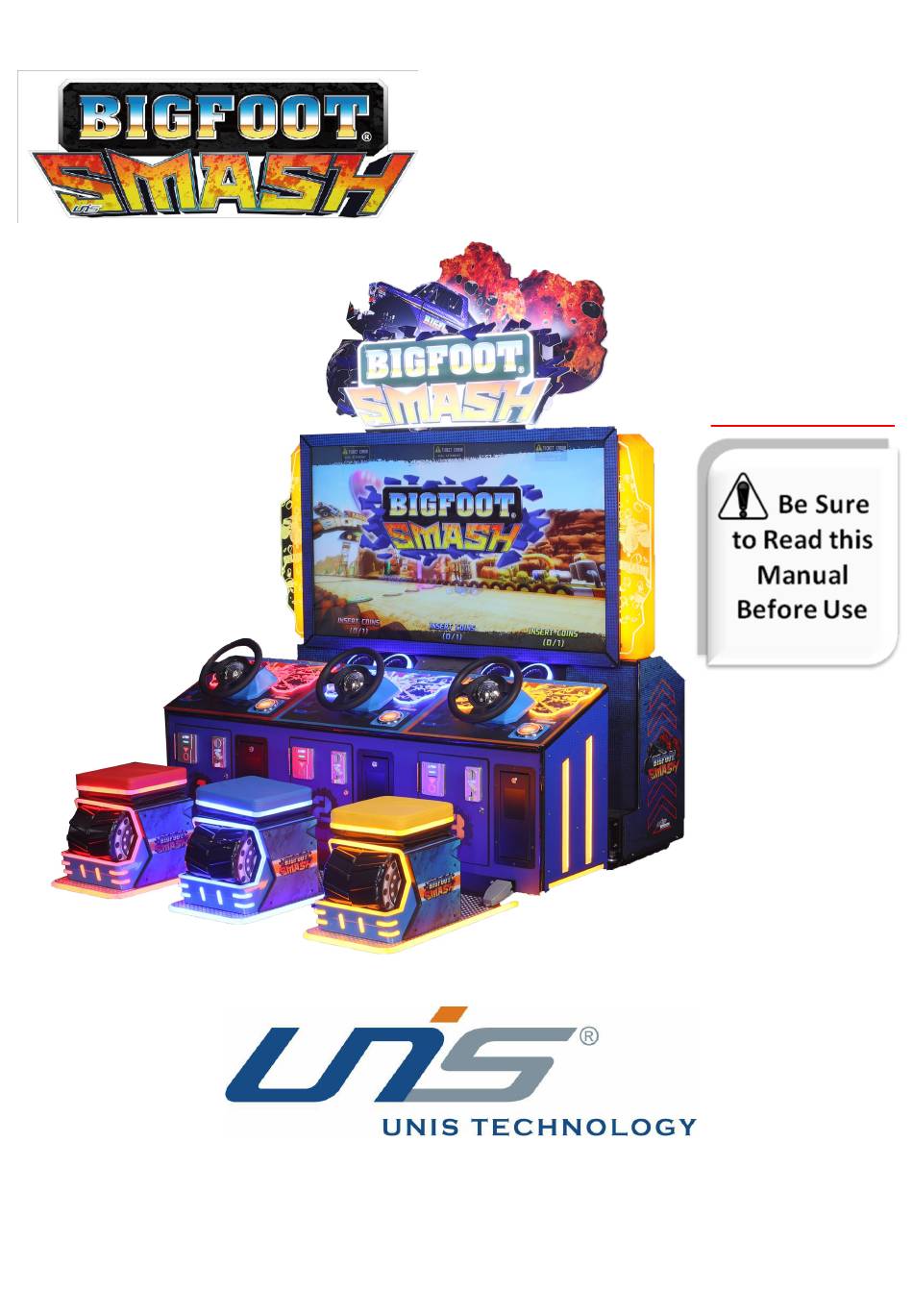

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Bigfoot Smash GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Bigfoot Smash GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................14 6. GAME OPTION ......................17 7.

  • Page 4: Important Safety Instructions

    Bigfoot Smash GMP Manual Thank you for purchasing Bigfoot Smash GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Bigfoot Smash GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Bigfoot Smash GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 500W Max. Power consumption: 680W Dimension: H96.61×W70.86×D75.00 in H2454.1×W1800 ×D1905 mm Model No: C-805 Part No.: B148 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Bigfoot Smash GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories Part No. Code No. Name Picture Power cord 1 B148-1501-00 2.33.01.010020 3×16AWG 1.8M Fuse 2 B148-1311-00 2.19.01.000013 Φ5×20 T10A/250V...

  • Page 8: Part Name

    Bigfoot Smash GMP Manual 3. PART NAME Key Components Marquee Assembly Monitor Steering wheel Speaker Motion Seat Button Ticket Coin dispenser mechanism 11/14/2024...

  • Page 9: Set Up & Installation

    Bigfoot Smash GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Bigfoot Smash GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in/500mm Service area Play area NOTICE Your unit must be leveled to operate properly.

  • Page 11: Machine Installation

    Bigfoot Smash GMP Manual 4.4 Machine Installation Step 1 Loosen screws to remove Marquee assy. Step 2 Open upper door board. Place Marquee assy. to the top of the cabinet. Lead the connectors to the cabinet through the hole. Connect the connectors. Utilize screws to secure marquee assembly.
  • Page 12 Bigfoot Smash GMP Manual Step 3 Locate seat assembly. Turn over Seat assembly. Loosen screws to remove casters. Step 4 Align Seat assy with the Control panel. Open control panel back door. Lead the Seat assy connectors to the control panel through the hole. Connect the connectors.
  • Page 13 Bigfoot Smash GMP Manual Step 5 Loosen screws to remove wiring bracket. Install Wiring bracket to the bottom of the cabinet as shown below. Ope n back bottom door. Lead connectors to the wiring bracket. Step 6 Align Control panel with the main cabinet.
  • Page 14 Bigfoot Smash GMP Manual 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader. All warranties are void if not properly installed resulting in logic board damage. Important: This game is pre-wired to AAMA standards. It is highly recommended to utilize this wiring for Card reader installation.

  • Page 15: How To Play

    Bigfoot Smash GMP Manual 5. HOW TO PLAY 5.1 Insert coins/tap/swipe card to play. 5.2 Select Car. 11/14/2024...
  • Page 16 Bigfoot Smash GMP Manual 5.3 Select Map. 5.4 Ready Scene 5.5 Turn the wheel to control the car. Step on pedal to go faster. 11/14/2024...
  • Page 17 Bigfoot Smash GMP Manual 5.6 Press button to boost to get faster. 5.7 Game over and ranking shows. 5.8 Ranking shows 11/14/2024...

  • Page 18: Game Option

    Bigfoot Smash GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter into the setting menu. Settings Test Reset 6.2 Setting menu 6.2.1 Main menu Options...

  • Page 19: Customized Setting

    Bigfoot Smash GMP Manual 6.2.3 Customized Setting Options Adjustment Value Default Car Select Time 5_20 Scene Select Time 5_20 Game Time 40_480 Refill Mode OFF_ON Refill Time 5_20 Divided By 2 OFF_ON Fixed Ticket(s) Mode OFF_ON Fixed Ticket(s) 0~100 1st Ticket(s)
  • Page 20 Bigfoot Smash GMP Manual 6.2.5 Input Test Options Adjustment Value 1P Coin OFF_ON 1P Start Button OFF_ON 1P Steering Wheel 0-255 1P Accelerator Pedal 0-255 1P Seat Sensor OFF_ON 1P Seat Vibration Error OFF_ON 2P Coin OFF_ON 2P Start Button...

  • Page 21: Date/Time Setting

    Bigfoot Smash GMP Manual 6.2.7 Date/Time Setting 6.2.8 About This Game Options Options Year Month Motherboard Hour(24) Minute Display Adapter Second Monitor Back&Save Screen Back Version Press Settings Button to Back 6.2.9 Bookkeeping Player Coins Tickets Payout Continue Play Non Resettable Points Back 6.2.10 Daily Record...

  • Page 22: Troubleshootings

    Bigfoot Smash GMP Manual 7. TROUBLESHOOTINGS 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...
  • Page 23 Bigfoot Smash GMP Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action The connection part of the Check and reconnect the IO board. loose ports of the PC.
  • Page 24 Bigfoot Smash GMP Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the holder. (Note: This process may take up to 30s) 2. Turn game on. Insert the recovery stick into the port of the Mainboard.

  • Page 25: Maintenance & Inspection

    Bigfoot Smash GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 26: Overall Construction

    Bigfoot Smash GMP Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. Name Version Qty B148-0001-00 V1.1 202.4.2003.133 Wiring bracket B148-0002-00 V1.1 202.4.2003.132 Wiring plate B148-0004-00 V1.1 202.4.2003.071 Packing L plate B148-0005-00 V1.1 202.4.2003.072 Packing R plate B148-0003-00 V1.1...

  • Page 27: Monitor Assembly

    Bigfoot Smash GMP Manual 9.2 Monitor Assembly Part No. Code No. Name Version Qty B148-0701-00 202.4.2170.008 Up&down plate V1.1 B148-0702-00 206.4.2003.061 L light plastic V1.1 B148-0703-00 202.4.2170.009 L&R panel plate V1.1 B148-0704-00 206.4.2170.008 Monitor glass V1.1 B148-0705-00 206.4.2170.001 Up&down dust-free foam V1.1...
  • Page 28 Bigfoot Smash GMP Manual 9.3 Marquee Assembly Part No. Code No. Name Version Qty B148-0801-00 203.4.2003.102 Marquee back board V1.1 B148-0802-00 202.4.2003.112 Front marquee bracket V1.1 B148-0803-00 202.4.2003.140 Light bracket B V1.1 B148-0804-00 205.4.2410.002 Back Andy board V1.1 B148-0805-00 201.08.04.4021 Isolation column V1.1...
  • Page 29 Bigfoot Smash GMP Manual 9.4 Driving Wheel Part No. Code No. Name Version Qty B148-0901-00 202.4.1606B.042 POT mounting plate V1.1 B148-0902-00 202.4.2003.101 Connect bracket V1.1 B148-0903-00 202.4.1606B.037 Bearing plate V1.1 B148-0904-00 201.06.000082 Bearing V1.1 B148-0905-00 2.51.10.010028 Spring with hook V1.1 B148-0906-00 202.4.1606B.032...
  • Page 30 Bigfoot Smash GMP Manual 9.5 Control Panel Wooden Case Assembly Part No. Code No. Name Version Qty B148-0501-00 203.4.2003.087 Control panel base board V1.1 B148-0502-00 203.4.2003.098 Coin outer box V1.1 B148-0503-00 202.4.2003.087 Inner plate V1.1 B148-0504-00 2.60.00010000 Caster plate V1.1 B148-0506-00 203.4.2003.099...
  • Page 31 Bigfoot Smash GMP Manual 9.6 Panel Electrical Wooden Assembly 11/14/2024...
  • Page 32 Bigfoot Smash GMP Manual Part No. Code No. Name Version Qty B148-0601-00 202.4.2003.138 Mid counter plate V1.1 B148-0602-00 202.4.2003.150 Coin chute V1.1 B148-0603-00 2.60.00075000 Ticket box V1.1 B148-0604-00 205.4.2410.111 Panel R light plastic A V1.1 B148-0605-00 205.4.2410.112 Panel R light plastic B V1.1...
  • Page 33 Bigfoot Smash GMP Manual 9.7 Seat Assembly 11/14/2024...
  • Page 34 Bigfoot Smash GMP Manual Part No. Code No. Name Version Qty B148-0101-00 202.4.2003.158 Seat base bracket V1.1 B148-0105-00 202.4.2003.119 Sensor mounting plate V1.1 B148-0106-00 202.4.2003.141 Terminal plate V1.1 B148-0107-00 206.4.2003.049 Tire bottom light plastic V1.1 B148-0111-00 202.4.2003.124 Small column mounting plate V1.1...
  • Page 35 Bigfoot Smash GMP Manual Part No. Code No. Name Version Qty 24 B148-0102-00 2.34.04.010133 DC motor V1.1 25 B148-0103-00 202.4.2003.161 Idle block plate V1.1 26 B148-0104-00 202.4.2003.159 Motor bracket V1.1 27 B148-0108-00 201.07.110020 Washer pin V1.1 28 B148-0109-00 201.06.08.0128 Rod bearing V1.1...
  • Page 36 Bigfoot Smash GMP Manual 9.8 Seat Base Assembly Part No. Code No. Name Version Qty B148-0401-00 206.4.2003.076 Back light plastic V1.1 B148-0402-00 206.4.2003.075 R light plastic V1.1 B148-0403-00 206.4.2003.077 Anti-shake plate V1.1 B148-0404-00 206.4.2003.074 L light plastic V1.1 B148-0405-00 202.4.2003.111 Pedal fixing plate V1.1...
  • Page 37 Bigfoot Smash GMP Manual 9.9 Back Cabinet Wooden Case Assembly Part No. Code No. Name Version Qty B148-1001-00 203.4.2003.077 Up top board V1.1 B148-1002-00 203.4.2003.071 Base board V1.1 B148-1003-00 202.4.2003.136 Inner board V1.1 B148-1004-00 203.4.2003.072 Bottom L side board V1.1 B148-1005-00 203.4.2003.081...
  • Page 38 Bigfoot Smash GMP Manual 9.10 Speaker Assembly Part No. Code No. Name Version Qty B148-1101-00 202.4.2003.081 Speaker bracket V1.1 B148-1102-00 202.4.2003.082 Speaker net V1.1 B148-1103-00 206.4.2003.042 Speaker light plastic V1.1 B148-1104-00 202.4.2003.083 Unis plate V1.1 9.11 Cabinet Bottom Electrical Assembly Part No.
  • Page 39 Bigfoot Smash GMP Manual 9.12 Decals 11/14/2024...
  • Page 40 Bigfoot Smash GMP Manual Part No. Code No. Name Version Qty B148-0808-00 205.4.2410.003 Track Andy board V1.1 B148-0809-00 205.4.2410.004 Fire Andy board V1.1 B148-0807-00 205.4.2410.005 Dirt front PET V1.1 B148-1421-00 205.4.2410.018 Monitor L side OVC V1.1 B148-1420-00 205.4.2410.017 Monitor R side OVC V1.1...
  • Page 41 Bigfoot Smash GMP Manual 11/14/2024...
  • Page 42 Bigfoot Smash GMP Manual Part No. Code No. Name Version Qty B148-0702-00 206.4.2003.061 L light plastic V1.1 B148-0709-00 206.4.2003.062 R light plastic V1.1 B148-1426-00 205.4.2410.023 Button PVC V1.1 B148-0610-00 206.4.2003.064 Panel decoration plastic V1.1 B148-0616-00 205.4.2410.024 Card reader cover PVC V1.1...
  • Page 43 Bigfoot Smash GMP Manual 11/14/2024...
  • Page 44 Bigfoot Smash GMP Manual Part No. Code No. Name Version Qty B148-1435-00 205.4.2410.034 1P&3P counter decal V1.1 B148-1436-00 205.4.2410.035 2P counter decal V1.1 B148-1402-00 2.56.00.000036 High voltage label(s) V1.1 B148-1415-00 2.56.00.000120 AAMA label V1.1 B148-1437-00 205.4.2410.036 Fuse board decal V1.1 B148-1416-00 2.56.00.000121...

  • Page 45: Electrical Components

    Bigfoot Smash GMP Manual 9.13 Electrical Components 11/14/2024...
  • Page 46 Bigfoot Smash GMP Manual Part No. Code No. Name Version 1 B148-1319-00 2.17.04.000259 300 light board V1.1 B148-1319-00 2.17.04.000259 300 light board V1.1 B148-1350-00 2.17.04.000260 500 light board V1.1 3 B148-1313-00 2.20.02.020007 3535RGB light strip V1.1 31.5in *2(800mm*2) 4 B148-1319-00 2.17.04.000259 300 light board V1.1...
  • Page 47 Bigfoot Smash GMP Manual Monitor Assembly: Part No. Code No. Name Version Qty B148-1321-00 2.11.02000109 V1.1 B148-1312-00 2.33.04.030001 USB extend cable V1.1 B148-1326-00 2.33.07.000015A DVI cable V1.1 B148-1322-00 2.14.12.020010 USB-TTL port V1.1 B148-1324-00 2.11.07.020036 Dongle V1.1 B148-1325-00 4.13.00000012 Recovery stick V1.1...
  • Page 48 Bigfoot Smash GMP Manual Control Panel Assembly: 11/14/2024...
  • Page 49 Bigfoot Smash GMP Manual Part No. Code No. Name Version Qty B148-1331-00 297.9.0300003 U3 mainboard V1.1 B148-1332-00 297.9.0300004 U3-MCU board V1.1 B148-1334-00 297.9.2406003 Drive board V1.1 B148-1343-00 2.16.03.000027 Adapter V1.1 B148-1333-00 2.30.00000005 Counter V1.1 B148-1328-00 2.24.02.010002 Red button V1.1 B148-1329-00 2.24.02.030002 Green button V1.1...
