Summary of Contents for UNIS UP&AWAY

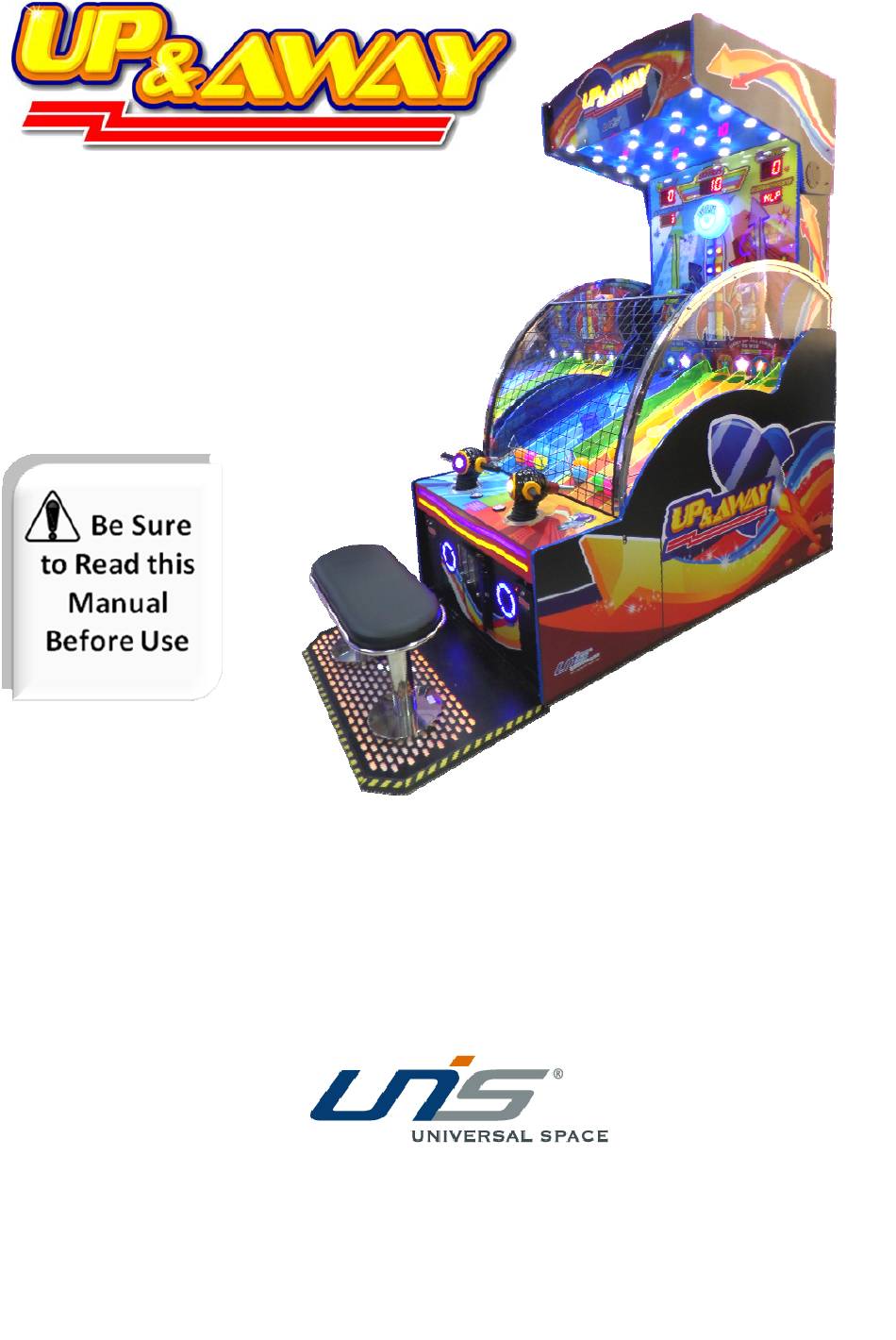

  • Page 1 Operation Manual www.universal-space.com...
  • Page 2: Table Of Contents

    Rev 1.0 CONTENT IMPORTANT SAFETY INSTRUCTIONS ..............2 1. SPECIFICATIONS ....................4 2. PACKAGE CONTENTS ..................5 3. PART NAME ....................... 6 4. SET UP & INSTALLATION .................. 7 5. HOW TO PLAY ....................13 6. GAME OPTIONS ....................14 7.
  • Page 3: Important Safety Instructions

    Rev 1.0 Thank you for purchasing UP&AWAY from Universal Space. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Rev 1.0 This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning:  Places subject to rain/moisture, or places subject to high humidity.  Places subject to direct sunlight, or places subject to extremely hot or cold temperatures to ensure that it is used within the specified operating range.
  • Page 5: Specifications

    Rev 1.0 1. SPECIFICATIONS Rated power supply: AC110V /60Hz Min. Power consumption: 70W Max. Power consumption:450W Dimensions: W1100×D2505×H2546.5 (mm) Weight: Approximately 300kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: The contents of this manual may be updated without notice.
  • Page 6: Package Contents

    Rev 1.0 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly  Following accessories Part No. Code Name Spec. Picture U106-438-000 23301000001 Power code 10A/250V-1.8M Φ5×20mm U106-415-000 21901000013 Fuse T10A 250VAC U106-439-000 41000000114 Ball VBS75...
  • Page 7: Part Name

    Rev 1.0 3. PART NAME...
  • Page 8: Set Up & Installation

    Rev 1.0 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid  Place the unit on a dry level surface  Ventilation openings in the back of the unit must not be obstructed by objects or by wall. 4.1 Play Zone This machine requires space for playing and for maintenance as shown below.
  • Page 9 Rev 1.0 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game. If the game is installed on an unsuitable floor, it could cause game malfunction. To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm.
  • Page 10 Rev 1.0 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.  Do not plug the equipment power cables into an electrical outlet if the power cable is damaged.
  • Page 11 Rev 1.0 4.4 How To Install Marquee Assy. Step 1: Remove 1 screw from both sides on top of the cabinet. Step 2: Lift up the marquee in the correct position by 2 people. One needs to support the marquee in the front. The other needs to install 4 provided screws (M6*40) from the accessory box to fix the marquee.
  • Page 12 Rev 1.0 Step 3: Take the connection metal plate from accessory box. Fix it to the cabinet with 8 screws (M6*20) as the picture shown. Step 4: Find the cable connector at the back of the cabinet. Then connect it to the other end from the top marquee hole.
  • Page 13 Rev 1.0 4.5 How To Install Seat Assy. Step 1: Push the seat assembly at the front of the cabinet. Make seat assembly mounting holes and cabinet mounting holes horizontal alignment. Step 2: Take out seat light cable connector, and get it though the hole on the bottom of the cabinet.
  • Page 14: How To Play

    Rev 1.0 5. HOW TO PLAY...
  • Page 15: Game Options

    Rev 1.0 6. GAME OPTIONS Check the attached I/O chart and schematic diagram, PC plan available machine input and output correspond to each connection position. Based on the DIP adjustment can be set the machine control signal. DIP regulating reference I/O list, capital letters for factory Settings, user can adjust themselves according to the operation condition.
  • Page 16 Rev 1.0 IO Settings Item Content Item Content Game Coin per time game Item Content 120s 180s Demo music 240s OFF OFF Item Content Item Content ON ON Credit Bonus ON ON OFF ON Item Content BONUS memory BONUS Ticket Item Content Continue to play...
  • Page 17 Rev 1.0 Item Item Content Content Ticket Score mode Point ON OFF ON Item Content Ticket per ball ON ON Points ticket Item Content *Note: Payout mode is to set the proportion ON ON of ticket won to real ticket payout. Payout 1:1 - 1 ticket won and pays 1 ticket.
  • Page 18 Rev 1.0 Error code and solution Please check the connection of the corresponding cables for each error. ERROR CAUSE COUNTERME CODE Ticket reset button error Change the button in counter panel. Test button error Change the button in counter panel.. 1P target sensor1 error Change the tortoise side initial position sensor.
  • Page 19: Maintenance, Inspection

    Rev 1.0 7. MAINTENANCE, INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.
  • Page 20: Overall Construction

    Rev 1.0 8. OVERALL CONSTRUCTION 8.1 Mechanical Part 8.1.1 Side door assy. Part No. Code Name U106-101-000 20211301002 L bend U106-601-000 20611301002 L side plexi. U106-102-000 20211301005 Safety net U106-601-000 20611301002 R side plexi. U106-103-000 20211301003 R bend...
  • Page 21 Rev 1.0 8.1.2 Control panel, front door assy.
  • Page 22 Rev 1.0 Part No. Code Name U106-104-000 26000005000 Wiring box support base U106-105-000 20611301022 Protection cover A U106-106-000 29911301013 Speaker assembly U106-108-000 26000008000 2.5” leveller U106-501-000 20311301037 Blower base board U106-465-000 23401001003 Blower(BR-211B) U106-112-000 20211301081 Gas connector U106-633-000 20211301079 Gas pipe U106-114-000 20211301008 Meter bracket...
  • Page 23 Rev 1.0 8.1.3 Fairway assy.
  • Page 24 Rev 1.0 Part No. Code Name U106-606-000 20211301017 Retainer ring U106-123-000 20211301029 Marquee fixed plate D U106-746-000 GTSP-HM-04S Star light board decal U106-642-000 GTSP-00-10-2S L-side track piece B U106-643-000 GTSP-00-10-3S L-side track piece C U106-647-000 GTSP-00-10-7S L-side track piece G U106-646-000 GTSP-00-10-6S L-side track piece F...
  • Page 25 Rev 1.0 8.1.4 Main panel assy. Part No. Code Name U106-125-000 20211301020 Bearing bracket U106-404-000 20106000136 Deep groove ball bearing U106-624-000 GTSP-HM-01 Main panel decal U106-126-000 26000041000 3mm screw washer Digital display board U106-715-000 GTSP-HM-03S bracket U106-625-000 20511301003 Digital display decal U106-626-000 20511301005 Alarm bell decal...
  • Page 26 Rev 1.0 8.1.5 Marquee assy. Part No. Code Name U106-129-000 20211301028 Spotlight bracket U106-130-000 20211301029 Marquee fixed plate D U106-131-000 20211301024 Marquee rotation axis U106-627-000 20511301002 Marquee decal 8.1.6 Marquee assy. Part No. Code Name U106-405-000 23404000047 DC motor U106-132-000 20211301031 PC fixed block U106-502-000 20311301035 Gate mechanism action board U106-406-000 25105000006...
  • Page 27 Rev 1.0 8.1.7 Gun assy. Part No. Code Name U106-628-000 20611301027 Gun shell U106-138-000 20211301049 Gun handle U106-139-000 20211301048 Gun light shade bracket U106-629-000 20611301028 Gun light shade A U106-630-000 20611301025 Gun light shade B U106-140-000 20211301038 Gun R fixed board U106-141-000 20211301040 Up&...
  • Page 28 Rev 1.0 8.1.8 Seat assy. Part No. Code Name U106-153-000 20611301037 Seat surface U106-152-000 20311301044 Seat surface board U106-635-000 20211301087 Seat ring U106-156-000 20311301043 Seat surface mounted board U106-636-000 20211301088 Seat supported bar U106-637-000 20211301089 Seat bed panel U106-351-000 20611301039 Side plexi.
  • Page 29 Rev 1.0 8.1.9 Rabbit assy. Part No. Code Name U106-638-000 20511301007 Rabbit vacuum foam U106-157-000 20211301059 Connection plate U106-503-000 20311301039 Rabbit fixed board U106-158-000 20211301062 Tortoise& rabbit fixed plate U106-159-000 20211301061 Tortoise& rabbit connection plate U106-504-000 20311301036 Rising mechanism fixed plate U106-160-000 20211301056 Sensor fixed metal...
  • Page 30 Rev 1.0 8.1.10 Tortoise assy. Part No. Code Name U106-640-000 20511301006 Tortoise vacuum foam U106-157-000 20211301059 Connection plate U106-505-000 20311301038 Tortoise fixed board U106-158-000 20211301062 Tortoise& rabbit fixed plate U106-159-000 20211301061 Tortoise& rabbit connection plate U106-504-000 20311301036 Rising mechanism fixed plate U106-160-000 20211301056 Sensor fixed metal...
  • Page 31 Rev 1.0 8.1.11 Service door assy. Part No. Code Name U106-164-000 20211301082 Removable safety net U106-111-000 20211301084 L service door U106-113-000 20211301085 R service door U106-476-000 20611301036 Service door washer U106-489-000 26300000004 Service door hinge U106-446-000 25102000001 Stainless steel buckle U106-122-000 20211301086 Service door lock pin...
  • Page 32 Rev 1.0 8.2 Electrical Part Part No. Code Name 1 U106-466-000 21701000014 Main board 2 U106-432-000 29741315004 Motor driver board 3 U106-433-000 21714000153 Blower PCB 4 U106-470-000 21709000001 Relay PCB 5 U106-468-000 21602000094 Power supply 1 6 U106-469-000 21602000012 Power supply 7 U106-476-000 GTSP-00-30 Power supply bracket 1 8 U106-445-000 22002017010 Right playfield light 4 9 U106-442-000 22002017009 Left playfield light...
  • Page 33 Rev 1.0...
  • Page 34 Rev 1.0 Part No. Code Name U106-428-000 22003080001 Marquee light U106-427-000 22004070001 Marquee spotlight U106-473-000 21706000037 Bonus digital board U106-472-000 21706000047 Time digital board U106-425-000 21706000032 Score/ticket digital board U106-431-000 29711301001 Fire protection bell light PCB U106-436-000 22008000036 Tortoise indicator light U106-437-000 22008000040 Rabbit indicator light U106-474-000 20740930001...
  • Page 35 Rev 1.0 Part No. Code Name U106-413-000 21412000001 Terminal U106-415-000 21901000013 Fuse U106-412-000 22601000005 Small rocket SW U106-414-000 23201000001 Filter U106-438-000 23301000001 Power cord Part No. Code Name U106-421-000 23000000005 Meter U106-416-000 22403000001 POT knob U106-418-000 22501000017 U106-419-000 22402030002 Reset button(green) U106-420-000 22402010002 Service button(red) U106-417-000 21709000002 POT connection board...
  • Page 36: Decal

    Rev 1.0 9. Decal Part No. Code Name U106-701-000 20511301001 Main panel decal U106-702-000 20511301002 Marquee decal U106-747-000 GTSP-HM-05S Control panel decal Control panel light PCB U106-704-000 20511301011 decal U106-705-000 20511301012 Front door decal U106-706-000 20511301013 Base L front decal U106-748-000 GTSP-HM-01S Base L back decal...
  • Page 37 Rev 1.0 Part No. Code Name U106-715-000 20511301S003 Bonus LED decal U106-746-000 GTSP-HM-04S Star light PCB decal U106-717-000 20511301005 Alarm bell decal U106-640-000 20511301006 Tortoise vacuum foam U106-719-000 20511301007 Rabbit vacuum foam U106-745-000 GTSP-HM-09S L fairway decal U106-730-000 GTSP-HM-10S R fairway decal U106-737-000 25600000034 Tickets label...
  • Page 38 Rev 1.0 Part No. Code Name U106-741-000 25600000035 Fork label U106-728-000 20511301030 Instruction label U106-716-000 25600000067 Warning label U106-737-000 25600000034 Tickets label U106-717-000 25600000042 Service label 1 U106-718-000 25600000095 Service label(large) U106-740-000 25600000037 High voltage warning(large) U106-750-000 20511301SA001 Uncertified 110V nameplate U106-752-000 20511301SA002 FCC 110V nameplate U106-719-000...
  • Page 39: Wiring Diagram

    Rev 1.0 Wiring diagram GTSP-PX-01 GTSP-PX-05S RVS2-4...
  • Page 40 Rev 1.0...
  • Page 41 Rev 1.0...
  • Page 43 Have Questions? Contact us! www.universal-space.com International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email:tsnelling@unisusasupportcenter.com (Contact: Clement Yau) (Contact: Tim Snelling)
