UNIS SPACE RAIDER Operation Manual

Hide thumbs Also See for SPACE RAIDER:
Table of Contents

Advertisement

Quick Links

IMPORTANT
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPACE RAIDER and is the answer not in the manual?

Questions and answers

Related Manuals for UNIS SPACE RAIDER

Summary of Contents for UNIS SPACE RAIDER

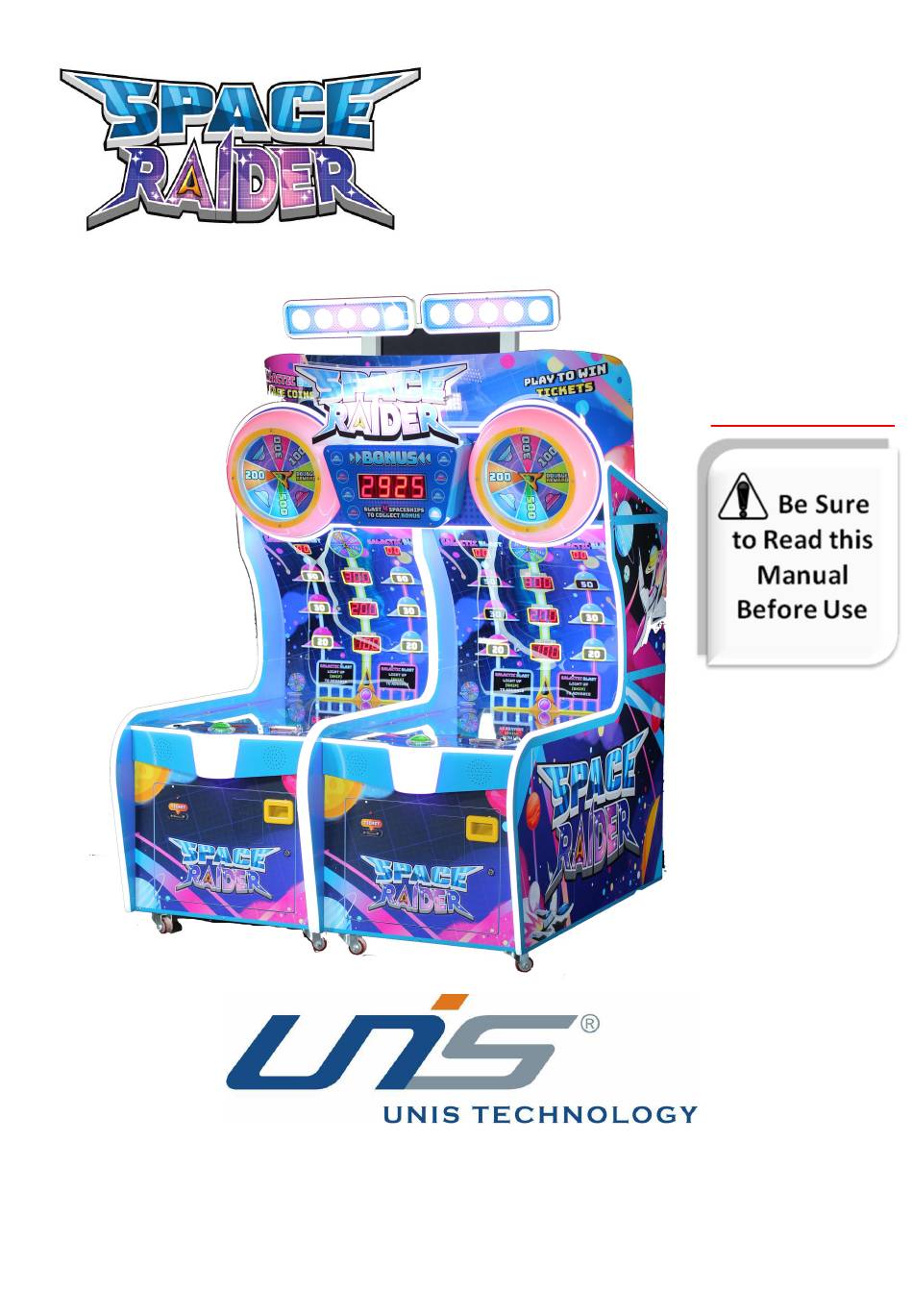

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Space Raider GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com 03/06/2023...

  • Page 3: Table Of Contents

    Space Raider GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ...................... 22 6.

  • Page 4: Important Safety Instructions

    Space Raider GMP Manual Thank you for purchasing Space Raider. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Space Raider GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Space Raider GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 500W Max. Power consumption: 600W Dimension:H90.35×W60.51×D63.03 in H2295×W1537 ×D1601 mm Weight：Approximately 771 lb/ 350kg Model No.: C-743 Part No.:S187 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Space Raider GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code No. Name/SPEC Picture S187-0710-00 SJPJ-10 Manual S187-0709-00 SJPJ-09 Power cord S187-0711-00 SJPJ-11 S187-0705-00 SJPJ-05...

  • Page 8: Part Name

    Space Raider GMP Manual 3. PART NAME Key Components Marquee Display Turntable Play field Play instruction Button 03/06/2023...

  • Page 9: Set Up & Installation

    Space Raider GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Space Raider GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 500 mm Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 11 Space Raider GMP Manual 4.4 Machine Installation Step 1 Locate Bottom cabinet. Loosen screws on the upper side. Step 2 Place Upper cabinet to the Bottom cabinet. Utilize screws to secure. Upper cabinet Screw Bottom cabinet 03/06/2023...
  • Page 12 Space Raider GMP Manual Step 3 Route these connectors to the bottom cabinet through the hole. Connect the connectors as shown below. Step 4 Place Side fixing plate to the Cabinet. Utilize screws to secure. Note: It is the same installation(Step 1-4) of the other side.
  • Page 13 Space Raider GMP Manual Step 5 Place L&R cabinet together. R cabinet L cabinet Step 6 Open the front door. Utilize screws to secure L&R cabinet. Screw 03/06/2023...
  • Page 14 Space Raider GMP Manual Step 7 Utilize screws to secure L&R cabinet. Screw Screw Step 8 Route the R cabinet connector to the L cabinet. Connect the connectors as shown below. Connectors Connectors 03/06/2023...
  • Page 15 Space Raider GMP Manual Step 9 Install L&R side upper plate to the top of the cabinet. Utilize fixing plate and screws to secure. L&R side upper plate Screws L&R side upper plate Screws 03/06/2023...
  • Page 16 Space Raider GMP Manual Step 10 Route the connector to the cabinet inside through the hole. Connect the connector. Connector Step 11 Locate Bonus Marquee. Install Fixing plate to the Bonus assembly. Bonus assembly Fixing plate Step 12 Install LOGO marquee,POP plate and fixing plate to the Bonus assembly. Connect the connector.
  • Page 17 Space Raider GMP Manual Step 13 Install Bonus assembly fixing plate to the top of the cabinet. Utilize screws to secure a bit.(DO NOT TIGHTEN) Bonus assembly fixing plate Step 14 Install Bonus assembly to the Cabinet. Secure the Bonus assembly fixing plate.
  • Page 18 Space Raider GMP Manual Step 15 Connect the Bonus assembly connectors. Bonus assembly connectors Step 16 Locate Back PC decal. Install Back PC decal fixing plate(V&H) together. Fixing plate(H) Fixing plate(V) 03/06/2023...
  • Page 19 Space Raider GMP Manual Step 17 Install Back PC decal to the Back PC decal fixing plate(V&H). Back PC decal Step 18 Install Back plate to the fixing plate. Fixing plate Back plate Step 19 Install Back PC decal to the back of the Bonus assembly. Utilize screws to secure.
  • Page 20 Space Raider GMP Manual Step 20 Install Top light plate to the back of the Marquee. Utilize screws to secure. Top light plate Step 21 Utilize screws to secure L&R top light plate. Screws 03/06/2023...
  • Page 21 Space Raider GMP Manual Step 22 Connect the connectors. Connectors Connectors Finish! 03/06/2023...
  • Page 22 Space Raider GMP Manual 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader. All warranties are void if not properly installed resulting in logic board damage. Important: This game is pre-wired to AAMA standards. It is highly recommended to utilize this wiring for Card reader installation.

  • Page 23: How To Play

    Space Raider GMP Manual 5. HOW TO PLAY 5.1 Insert coins/Tap card to play. 5.2 Rotate to aim and Tap button to blast the tokens. 5.3 Shoot tokens through the slots to earn points, and light up the letter. 5.4 Light up all 4 letters “S-H-I-P” to move up the levels and win more points.

  • Page 24: Game Option

    Space Raider GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there meter panel. Press Volume Settings button to enter the setting menu. Test(-) Settings Exit Bookkeeping Options Description Settings Enter Setting menu/Select options/Confirm Exit...
  • Page 25 Space Raider GMP Manual 6.2 Game Settings Options Adjustable Meanings Default Note Display value Coins per game 1-20 Scores per ticket 1-10 Ticket patterns Refer to manual 6.2.1 Mercy ticket 0-10 Turntable score 0 10-800 Turntable score 1 10-800 Turntable score 2...
  • Page 26 Space Raider GMP Manual 6.2.1 Ticket Pattern Pattern 1 (about 25 tickets per coin) Blue spaceship side Red spaceship side Turntable bonus Level 3 bonus: 50 tickets Level 3 bonus: 50 tickets UFO Bonus: 100 Level 2 bonus: 30 tickets...
  • Page 27 Space Raider GMP Manual Pattern 5 (about 45 tickets per coin) Blue spaceship side Red spaceship side Turntable bonus Level 3 bonus: 50 tickets UFO Bonus: 300 Level 3 bonus: 50 tickets Level 2 bonus: 30 tickets UFO Bonus: 200...

  • Page 28: Troubleshooting

    Space Raider GMP Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...
  • Page 29 Space Raider GMP Manual Display Meanings Possible Cause Recommended action Coins enter the hole, which Replace the hole The hole sensor is faulty. cannot be detected. sensor. The hole flash automatically There is a coin stuck in Open the back door to and tickets out.
  • Page 30 Space Raider GMP Manual 7.2 How To Download New Program & Update Note: Please contact with UNIS before update Step 1. Copy “Downloader” software to the desk; Step 2. Double click the“Downloader” software, will see below interface, click circled words which is to connect the programmer;...
  • Page 31 Space Raider GMP Manual Step 4. Connect the programmer with computer via connection cable, press No.2 blue button for several seconds until below image is showed on screen; Step 5. Click “Get image file from cloud”, download complete; 03/06/2023...
  • Page 32 Space Raider GMP Manual Step 6. Powering on programmer with an adapter or charger, connect it with main board via programming cable as below picture shows, No.1 and No.2 blue button is to select correct program, No.3 blue button is to do programming.

  • Page 33: Maintenance & Inspection

    Space Raider GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 34: Overall Construction

    Space Raider GMP Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. Name S187-0216-00 EY20230219J016 Front door board S187-0628-00 GMP-WGJ11 Coin mechanism S187-0324-00 20541804C009 Sensor plastic S187-0305-00 25600000116 Turntable decal S187-0644-00 GMP-WGJ27 Glass S187-0314-00 25600000077 Header PC S187-0601-00...
  • Page 35 Space Raider GMP Manual 9.2 Belt Assembly Part No. Code No. Name S187-0169-00 XSY2302-069 Belt mechanism bracket S187-0501-00 XZH230222-001 Bearing plate S187-0507-00 XZH230222-007 Motor front rolling nylon S187-0509-00 XZH230222-009 Mid rolling nylon S187-0508-00 XZH230222-008 Back rolling nylon S187-0510-00 XZH230222-010 Belt motor driving wheel(big) 1...
  • Page 36 Space Raider GMP Manual 9.3 Decal Part Part No. Code No. Name S187-0301-00 20511605D019 Control panel decal S187-0329-00 20541804C018 Door decal 03/06/2023...
  • Page 37 Space Raider GMP Manual Part No. Code No. Name S187-0303-00 25600000111 Upper PC board S187-0304-00 25600000112 Bottom PC board 03/06/2023...
  • Page 38 Space Raider GMP Manual 03/06/2023...
  • Page 39 Space Raider GMP Manual Part No. Code No. Name S187-0310-00 25600000057 Plastic cover S187-0306-00 25600000016 Round decal S187-0308-00 25600000037 Light plastic S187-0305-00 25600000116 Turntable decal S187-0307-00 25600000036 Cabinet side plastic S187-0307-00 25600000036 Cabinet side plastic S187-0309-00 25600000042 Top back decal...
  • Page 40 Space Raider GMP Manual Part No. Code No. Name S187-0332-00 20541804C024 Nameplate S187-0333-00 20541804C025 Warning decal 2 S187-0334-00 20541804C026 Warning decal 3 S187-0335-00 20541804C027 Warning decal 4 03/06/2023...
  • Page 41 Space Raider GMP Manual 9.4 Electrical Component Part No. Code No. Name S187-0601-00 GMP-LED01 Header white light S187-0602-00 GMP-LED02 Bottom side white light S187-0603-00 GMP-LED03 Top side white light S187-0604-00 GMP-LED04 Middle side white light S187-0605-00 GMP-LED05 Top spotlight S187-0606-00...
  • Page 42 Space Raider GMP Manual Part No. Code No. Name S187-0651-00 GMP-WGJ34 L&R motor S187-0633-00 GMP-WGJ16 White wheel S187-0635-00 GMP-WGJ18 Black wheel S187-0637-00 GMP-WGJ20 L&R sensor S187-0629-00 GMP-WGJ12 Up-coin motor 03/06/2023...
  • Page 43 Space Raider GMP Manual Part No. Code No. Name S187-0620-00 GMP-WGJ03 Red button S187-0621-00 GMP-WGJ04 Counter S187-0627-00 GMP-WGJ10 Ticket dispenser S187-0628-00 GMP-WGJ11 Coin mechanism 03/06/2023...
  • Page 44 Space Raider GMP Manual Part No. Code No. Name S187-0648-00 GMP-WGJ31 Power supply(12V) S187-0649-00 GMP-WGJ32 Power supply(24V+5V) S187-0649-00 GMP-WGJ32 Power supply(24V+5V) S187-0410-00 ZJ230222-010 Goal sensor board S187-0411-00 ZJ230222-011 Main control board S187-0407-00 ZJ230222-007 Motor drive board S187-0645-00 GMP-WGJ28 Relay S187-0625-00...
  • Page 45 Space Raider GMP Manual Part No. Code No. Name S187-0630-00 GMP-WGJ13 Button S187-0622-00 GMP-WGJ05 4'' speaker S187-0623-00 GMP-WGJ06 4'' speaker net S187-0408-00 ZJ230222-008 Control panel display(coin) S187-0409-00 ZJ230222-009 Control panel display(ticket) 2 S187-0403-00 ZJ230222-003 Turntable light board S187-0619-00 GMP-WGJ02 Turntable pin white plastic...
  • Page 46 Space Raider GMP Manual 03/06/2023...
  • Page 47 Space Raider GMP Manual Part No. Code No. Name S187-0405-00 ZJ230222-005 Level display S187-0406-00 ZJ230222-006 Level light board S187-0404-00 ZJ230222-004 UFO display S187-0402-00 ZJ230222-002 SHIP light board S187-0410-00 ZJ230222-010 Goal sensor board S187-0650-00 GMP-WGJ33 Belt motor S187-0647-00 GMP-WGJ30 Filter www.unistechnology.com...
  • Page 48 FUSE1 FUSE1 FUSE1...
