Names and Functions of Parts

Names and Functions of Parts

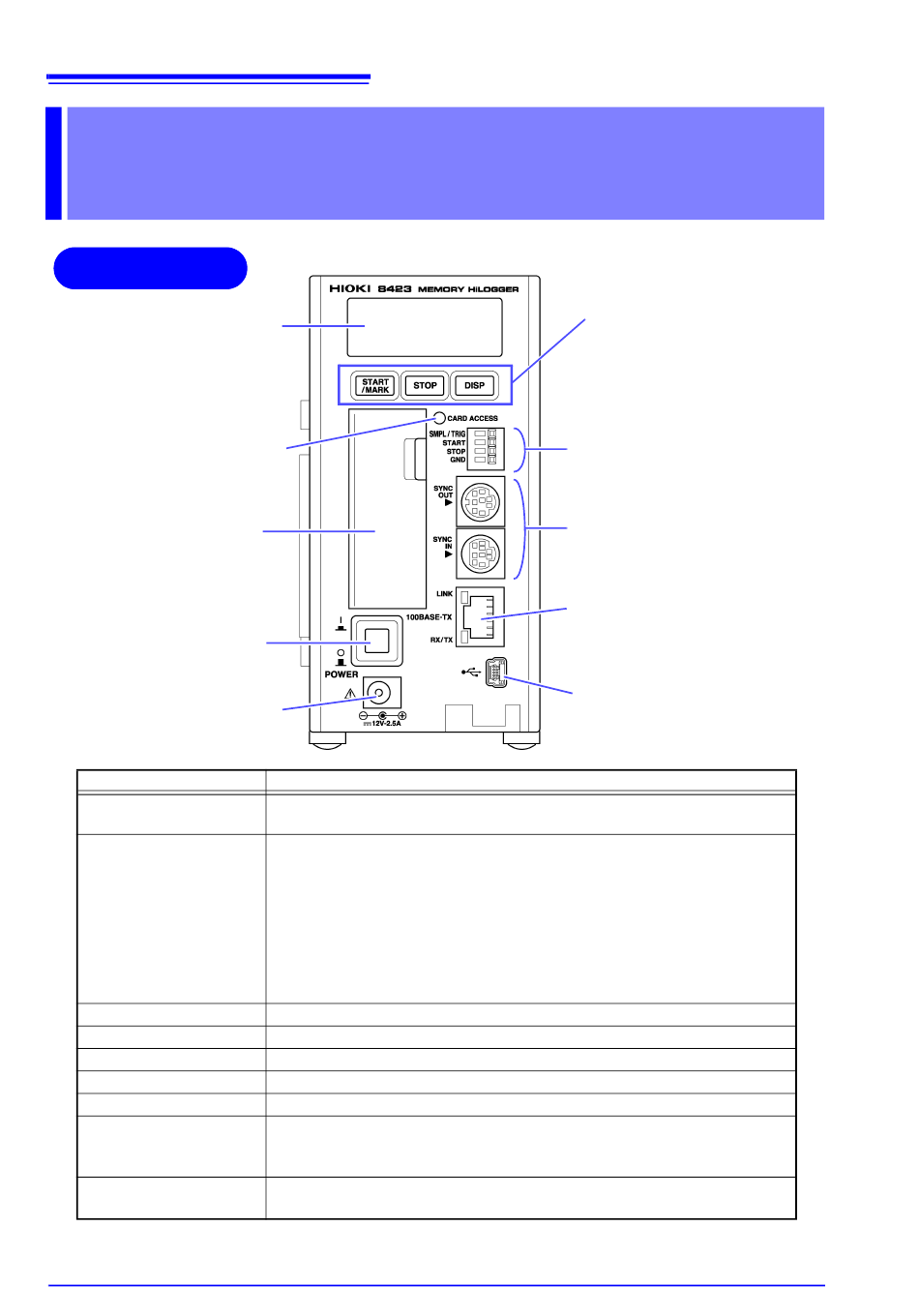

Front Panel
Display
CF card access LED
CF card slot
Power switch
AC adapter connector
Names of parts
Display
CF card access LED
CF card slot
Power switch
AC adapter connector
USB connector
100BASE-TX connector
Synchronization cable
connector
External control input
terminals
Explanations
Displays setting values, measurement values, error messages, warning
messages, and other information.
• When the cover is open:
Off: The CF card can be ejected.
Lit red: The CF card cannot be ejected because data is being written.
• When the cover is closed:
Off: A CF card is not inserted or recording is not possible because the
CF card cannot be recognized.
Lit green: A CF card is inserted and recording is possible.
Lit red: The CF card is being read or written.
Allows for a CF card to be inserted for saving measurement data.
Turns the power ON/OFF.
Allows for a 9418-15 AC Adapter to be connected.
Allows for a USB cable to be connected.
Allows for a 9642 LAN Cable to be connected.
Allows for connecting optional 9683 Connection Cable (for synchroniza-
tion) when you want to perform synchronized measurement with multiple
Memory HiLoggers.
Allows for controlling the instrument by inputting a signal from an external
device.
Key operations
(See the next page)
External control input
terminals
Synchronization cable connectors
100BASE-TX connector
USB connector
