Capture high- to low-voltage signals in a single device
Rugged, Professional and Ready for the Field

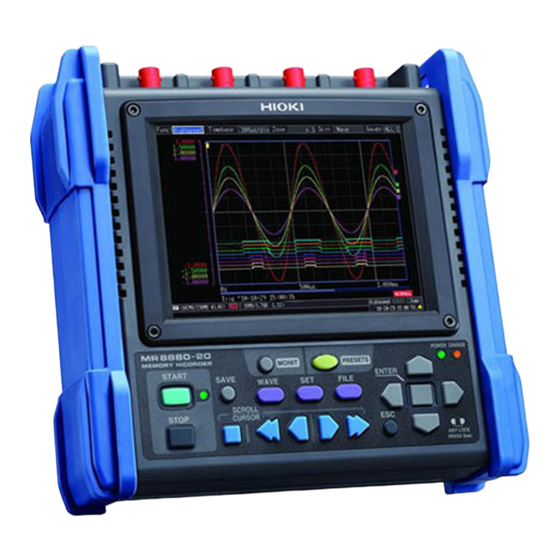

MEMORY HiCORDER MR8880
CAT III 600 V
insulation performance
• Maximum 600V AC/DC input - no need for a differential probe
• 4 completely isolated channels let you simultaneously record
data on a 3-phase power line plus have one extra channel
Tough against harsh environments
• Operating temperature range:
• Built to withstand mechanical shocks and vibrations
(ships standard with side protectors)
Make settings easily with
Simply select what you'd like to measure and follow the on-
screen instructions to select the appropriate settings. The re-
corder can be easily configured to measure voltage drops and
power outages.
-10°C to 50°C
PRESETS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HiCORDER MR8880 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hioki HiCORDER MR8880

  • Page 1 MEMORY HiCORDER MR8880 Capture high- to low-voltage signals in a single device Rugged, Professional and Ready for the Field CAT III 600 V insulation performance • Maximum 600V AC/DC input - no need for a differential probe • 4 completely isolated channels let you simultaneously record...
  • Page 2 Safe & Reliable Measurement The MR8880 offers safe, reliable operation featuring CAT III 600 V isolated inputs in a compact yet durable design that excels at taking measurements in harsh environments. Direct input and measurement of 3-phase power lines CAT III 600 V isolated inputs (4 channels) n 4 analog + 8 logic channels n Directly input 600 V AC/DC (CAT III) and 300 V AC/DC (CAT IV) input.
  • Page 3 Settings are as Easy as 1-2-3 with PRESETS To configure the MR8880, you need only select what you’d like to measure—“Measure a commercial power supply,” “Monitor a power source for a voltage drop,” etc.—and follow the on-screen instructions to select the appropriate set- tings.
  • Page 4 Recording interval of 100 μs to 1 min Note: Use only Hioki CF cards that are guaranteed to operate with the HiCorder n Recording Capacity for continuous long-term recording.
  • Page 5 By backing up the internal power supply until processing to save data to the ex- Note: Operation of non-HIOKI CF cards is not guaranteed ternal media completes, the instrument enables highly reliable data collection. Can the MR8880...
  • Page 6 600 V AC, DC CAT III / 300 V AC, DC CAT IV 3) HIOKI sensor: Set HIOKI clamp-on probe and range value. Max. rated voltage to (with input isolated from the unit, the maximum voltage that can be applied between 4) Output rate setting: Select scaled value per 1 V from a list.
  • Page 7 n Appearance and Dimensions Screen display Analog input 5.7-inch VGA-TFT color LCD (640 × 480dot) Display (Isolated BNC terminal) Time axis: × 10 to × 2 (zoom view supported for high-speed Waveform display recording only), × 1, × 1/2 to × 1/2,000 scale Voltage axis: ×...
  • Page 8 *For commercial power lines, 50/60 Hz *Voltage to ground is within this product's specifications. Use only PC Cards sold by HIOKI. Compatibility and performance Separate power source is also required. are not guaranteed for PC cards made by other manufacturers. You CLAMP ON PROBE 9018-50 may be unable to read from or save data to such cards.
