- Page 1 P R O D U C T I N F O R M A T I O N G U I D E SRC Plus Controllers Professional-Grade Residential/Light Commercial Controller with Optional SRR Remote Control System Plus Plus...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SRC Plus Controllers Product Overview ......................1 Product Features and Benefits ................... 2 SRC Plus Components ...................... 8 Technical Information......................9 Product Comparisons....................... 10 Installation ........................11 Programming ........................15 Troubleshooting Guide ....................20 Optional SRR Remote Control for Residential Systems Product Overview ...................... -
Page 3: Src Plus Controllers

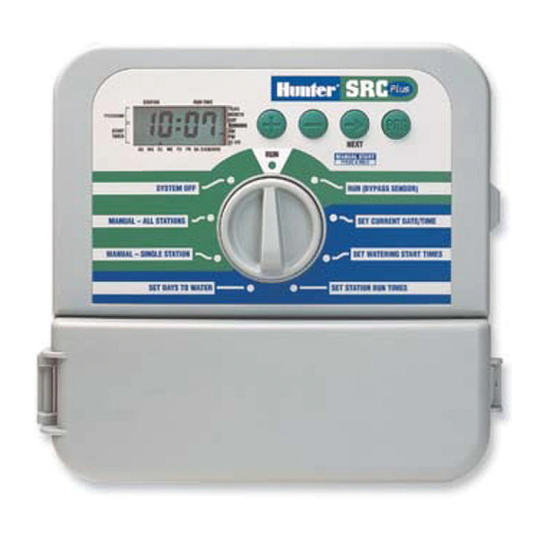

SRC Plus Controller PRODUCT OVERVIEW An affordable controller for residential and light commercial applications – Hunterʼs SRC Plus, the Simple and Reliable Controller. Designed with the needs of the professional contractor in mind, the SRC offers easy installation, simplified dial... -
Page 4: Product Features And Benefits
With 6 or 9 stations for complete infiltration-rate soils, slopes, morning or versatility evening irrigation and other watering win- Hunter is supplying both a 6-station and dow restrictions. a 9-station controller model. By offering 365-day Calendar with Leap a wide range of features and reliable Year Intelligence…... - Page 5 Use the mounting location button to adjust the station run time. The SRC Plus is remote ready! A The controller will begin to operate SmartPort wire harness is supplied ®...
- Page 6 PRODUCT FEATURES AND BENEFITS (continued) Procedure to operate the Rapid Manual Advance Feature for a quick system check Rain Sensor Bypass… Simplified override of rain sensor With the built-in rain sensor bypass, there is no need for an additional manual bypass 1.
- Page 7 Simplified wire hookups onto the bracket. With the special wall The SRC Plus permits fast and easy bracket there is extra stabilization on the connection of wiring in the spacious wiring wall and no need to disassemble the unit to compartment.
- Page 8 Programming Instructions… Interchangeable Faceplate Label… At-a-glance; always there Allows for language customization The SRC Plus provides a reference The faceplate instructions can be changed label that is attached to the inside of the to either Spanish, French, or Italian by controller door.
- Page 9 Hunter IMMS. Best of all it is irrigation system, the controller will skip able to team with any or all of the Hunter over that station and continue to water the controllers, including the SRC.
-
Page 10: Src Plus Components
SRC PLUS COMPONENTS STAT ION STATION RUN TIME RUN TIME YEAR YEAR PROGRAM PROGRAM MONTH MONTH RUNNING Plus RUNNING Plus START START TIMES TIMES STATION STAT RUN TIME 24 HR. 24 HR. YEAR PROGRAM PROGRAM PROGRAM MONTH SUN MON TUES WED THUR FRI SAT EVEN/ODD... -
Page 11: Technical Information
(not required for program backup) • Non-volatile memory for program data • Electronic short circuit protection • Hunter Quick Check™ helps troubleshoot field wiring issues • Master valve output: 24 VAC, 0.3A • Overload fuse: 0.75A, spare fuse provided •... -
Page 12: Product Comparisons
Foreign Language Owner's Manuals (Optional) ✔ Electronic Short Circuit Protection ✔ ✔ Non-volatile Memory Maintains ✔ Program Indefinitely Hunter Quick Check™ Diagnostic Feature Helps ✔ Troubleshoot Wiring Problems Remote Control Ready from Factory ✔ (Wiring Harness Supplied) Central Control Compatible through ✔... -
Page 13: Installation
SRC Plus Controller INSTALLATION Connecting Valves and Transformer 6. Secure the white valve common 1. Route control wires between control wire to the screw on the terminal valve location and controller. Typically marked C. With the valve common it is recommended that an 18 AWG... - Page 14 INSTALLATION (continued) Connecting the Battery Connecting a Master Valve Connect a 9-volt alkaline battery NOTE: Complete this (not included) to the battery wire clip section only if you have a located in the lower left-hand side of the master valve installed. A controller.
- Page 15 When watered station instead of a a pump is to be operated by the controller, damaged pump. a pump start relay must be used. Hunter ������ �������� offers a full range of pump start relays for �������...
- Page 16 NOTE: If a pump relay is type of interrupt weather sensor can be being used, the relay common connected to the SRC Plus. The purpose must also be connected to the of this sensor is to stop watering when RS terminal.
-
Page 17: Programming
SRC Plus Controller PROGRAMMING The SRC Plus Controller is easy to Setting the Date and Time program. The easy to understand dial 1. Turn the dial to the design allows you to step through the SET CURRENT process of programming and activate DATE/TIME position. - Page 18 PROGRAMMING (continued) Setting Watering Start Times NOTE: If a program has all 1. Turn the dial to the four-start times turned off, SET WATERING then that program is off. (All START TIMES other program details are position. retained). Because there are 2.
- Page 19 After pressing a button the bypass switch when using rain sensors cursor automatically advances to the (the SRC works with the Hunter Mini- next day. Clik , plus some other rain, wind or freeze ®...
- Page 20 PROGRAMMING (continued) Manually Run a Single Station NOTE: The station that is 1. Turn dial to the on the display when you MANUAL- turn the dial to RUN will be SINGLE the first station to run. The STATION controller will then proceed position.
- Page 21 Instead of having to physically check each erase all programs and data that have field wiring circuit for potential problems, been entered into the controller. Press the user can run the Hunter Quick Check the , and hold them down circuit test procedure. This circuit simultaneously.
-
Page 22: Troubleshooting Guide
SRC Plus Controller TROUBLESHOOTING GUIDE PROBLEM CAUSES SOLUTIONS Display indicates irrigation but station Faulty or miswired valve. Check valve and valve wiring. does not water. Faulty pump or pump relay. Check pump and pump relay. Replace if defective. No water pressure to supply. -
Page 23: Product Overview
Remote Control System for use with our turn on or off, then press the SRC Plus controller. Remote control button – what could be easier? Don’t is available at a price homeowners can worry about forgetting to turn off the SRR. -
Page 24: Product Features And Benefits
PRODUCT FEATURES AND BENEFITS Small and Compact Size… Internal Antenna on Transmitter… Slips into shirt or pants pocket Out of sight, out of mind Both the transmitter and receiver are small The SRR's transmitter has no external enough to fit into the palm of your hand. antenna that can be broken or lost. - Page 25 SRR Remote Control User Programmable Address… Added user security Both the SRR transmitter and receiver have an “address” that they use when communicating with each other. If the addresses do not match, the receiver will ignore the transmission. The SRR comes from the factory with both addresses set at 0.
-
Page 26: Srr Components
On – Indicates Transmitter is turning on a SmartPort that plugs into the SRR Receiver or ® particular station. other Hunter product. Off – Indicates Transmitter is turning off a 14. Rubber Cover – Protects SmartPort from dirt ® particular station. -
Page 27: Installation And Programming
Preparing the Communication Port from the harness to the terminal block of the controller as shown in Figure 2. To utilize the SRR Remote Control System, your Hunter controller must be equipped with the SRR SmartPort wiring ® harness. This wiring harness provides ��... - Page 28 INSTALLATION AND PROGRAMMING (continued) below, you should 2. Simultaneously press the make a note of the buttons, until � new settings since, the word “RUN TIME” when the battery along with the current Run is removed and a Time is displayed. The new one installed, display will be blinking at �������...
- Page 29 The SRR System will allow you to receiver should not be remotely turn on and off any station on permanently installed in your SRC Plus , Pro-C, and ICC with the an outdoor or unsheltered press of a button. Once on, the station location.
- Page 30 6-station controller, you will never need 4. Momentarily to access stations 7-9. Likewise, perhaps press the “ON” you will own a future Hunter controller button to start with more than 9 stations. In this case you the station or would want to access the stations above 9.
-
Page 31: A Word About Range
SRR Remote Control A WORD ABOUT RANGE There are many claims being made about 5. Use the buttons to change the the range of various remote control maximum station number to the value systems, whether they be for auto alarms, you desire. -
Page 32: Troubleshooting Guide
Replace lengthened wire with shielded ® controller is in the radio run position. extended and are receiving radio cable to prohibit interference. Use Hunter interference. SRR-SCWH. Receiver does not receive signal from Mismatch of addresses in transmitter and Reset address of receiver. -
Page 33: Technical Information
• Range: Up to 450' (137 m)* � � � � � � � � � � � � � � � � � � � ��������� ���������� ����� �������� ��� ���������������������������������������������� ���������������������������������������� ���������������� ������������ Additional SRR owner’s manuals can be ordered from Hunter (item LIT-220). -
Page 34: Installation Details
INSTALLATION DETAILS Receiver Mounted Indoors This installation is ideal for situations when the SRR system will be left permanently connected to the controller in an indoor area. Connection of Receiver on a Temporary Basis from Outside of a Garage or Building This installation is ideal for situations where a contractor desires the ability... - Page 36 Hunter Industries Incorporated • The Irrigation Innovators 1940 Diamond Street • San Marcos, California 92069 • TEL: (1) 760-744-5240 • FAX: (1) 760-744-7461 © 2004 Hunter Industries Incorporated www.HunterIndustries.com P/N 700432 LIT-220 5/04...
