X2

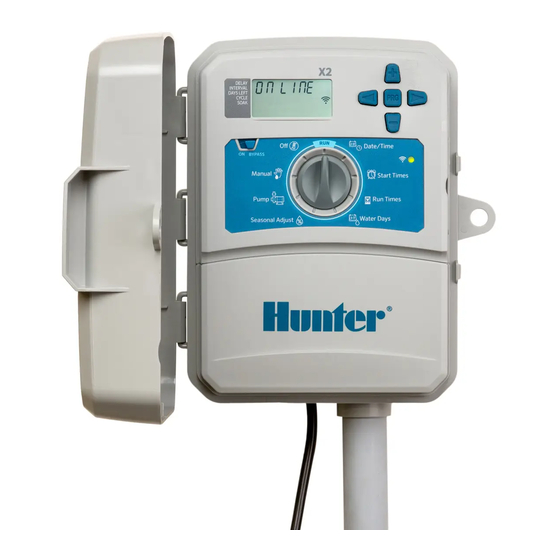

IRRIGATION CONTROLLER QUICK START PROGRAMMING GUIDE
™
Main Display
①
⑤
③
②
⓫
④
⑥
➐
X2 dial and button functions are disabled when Wi-Fi is on,
as well as the existing schedule and settings. All programming
is managed from the Hydrawise™ online software. Manual
Station, Manual Program, and Test All Stations can be
activated at the controller.
①
Program Indicator
②
Station Running
③
Sprinkler Off Days
④
Start Time Symbol
⑤
Run Time Symbol
⑥
Month Symbol
⑦
Day Symbol
The Bluetooth
word mark and logos are registered trademarks owned by Bluetooth SIG Inc.
®
and any use of such marks by Hunter Industries is under license.
⓮
⓭
⑩
⓬
Sensor Bypass Switch
Control Buttons
➑ ⑨
⑧
Rain Sensor Active/Override
⑨
Bluetooth
On
®
⑩
Wi-Fi On
⑪
Days of the Week
⑫
Odd/Even/Interval Days
⑬
Time Mode (AM/PM/24 HR)
⑭
Seasonal Adjust (%)
|For more information visit Thelandscapestore.com.au | (02) 9161 3939 |
ADD
WI-FI
Dial Must Be in RUN Position for Automatic Irrigation
Setting Current Date and Time
1. Turn the dial to the DATE/TIME position.
2. The current year will be flashing. Use the + and - buttons to change
the year. Push the ► button to proceed to setting the month.
3. The month will be flashing. Use the + and - buttons to change
the month. Press the ► button to proceed to the day setting.
4. The day will be flashing. Use the + and – buttons to change the
day of the month. Press the ► button to proceed to the time setting.
5. The time will be displayed. Use the + and – buttons to select
AM, PM, or 24 HR to display all times in 24-hour mode.
6. Press the ► button to move to hours. Use the + and - buttons to
change the hour shown on the display.
7. Press the ► button to move on to minutes.
Use the + and - buttons to change the minutes shown in the display.
Turn the dial to the RUN position. Date and time are now set.
Setting Program Start Times
1. Turn the dial to the START TIMES position.
2. Press the PRG button to select A, B, or C.
3. Use the + and - buttons to change the start time. The start time
advances in 15-minute increments.
4. Press the ► button to add another start time, or PRG button to
set a start time for the next program.
Eliminating a Program Start Time
With the dial set to the START TIMES position, push the + and - buttons
until you reach 12:00 AM (midnight). From this position, push the - button
once to reach the "OFF" position.
https:/ /hunter.direct/WAND
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hunter X2
Summary of Contents for Hunter X2
- Page 1 6. Press the ► button to move to hours. Use the + and - buttons to change the hour shown on the display. X2 dial and button functions are disabled when Wi-Fi is on, 7. Press the ► button to move on to minutes.
- Page 2 Setting Station Run Times Seasonal Adjust System Off Changes all run times by a percentage for local Turn dial to System OFF position. No watering will 1. Turn the dial to the RUN TIMES position. conditions. occur in this dial position. 2.
- Page 3 /hunter.direct/X2help © 2019 Hunter Industries Inc. Hunter, the Hunter logo, and all other trademarks are property of Hunter Industries, registered in the U.S. and other countries. | hunterindustries.com RC-103 - QG -US 9/19...
Need help?
Do you have a question about the X2 and is the answer not in the manual?
Questions and answers
i have a new hunter x2 controller - want to be able to run 5 stations ith a one touch turn on.i have run a manual station and a manual program.my old controller could do this my wife wants to use i am unsble to out 5 times for manualn advance
To set up the Hunter X2 controller to run 5 stations using the one-touch manual start feature, follow these steps:
1. Hold down the right arrow (►) button for two seconds to start manual watering.
2. Press the PRG button to choose the desired program (A, B, or C).
3. Use the left or right arrow buttons to select each of the 5 stations.
4. For each station, press the + or – buttons to set the run time.
5. After a two-second pause, the program will begin automatically.
6. During the manual cycle, use the left or right arrow buttons to move between stations.
Make sure all five stations have run times set to ensure they operate during the manual cycle.
This answer is automatically generated
How do I know what program A,B, or C to choose. It is a new house and the builder never really tutored me on it. I **** having quite a time trying to program watering times.
The Hunter X2 irrigation controller allows you to create traditional irrigation programs using Programs A, B, and C. These programs are independent and can be used to manage different irrigation schedules. To choose between them, consider the following:
1. Separate Irrigation Needs: Use different programs for different zones based on their watering requirements.
2. Multiple Start Times: Each program can have its own start times and run durations.
3. Advanced Techniques: Programs can incorporate advanced watering methods like cycle and soak or interval cycle watering.
4. Flexibility: Adjust run times, start times, and watering days as needed.
To configure or modify these programs, go to the controller settings and select the appropriate program based on your irrigation plan.
This answer is automatically generated
Had trouble with stations starting again and running the same stations again after they should have shut off. Did total reset and it still does it.
What is the difference between program A B & C does each program have a different function? If so what are they? Can’t find anything in the manual about programs
I have a Hunter X2 irrigation controller with Wi-Fi. I have set it up and programmed it successfully using the Hydrawise app. I want to allow my landscaper to manually adjust/program the controller. Currently I can make any adjustments online, but no manual adjustments can be made. The screen on the controller says in is on “Online” and no adjustments to the programs can be made.
I want to set multiple stations to run at the same interval but starting on different days. How do I program that?
How to start all zones that have been preset
