12x 8w rgbw 4-in-1 led par
Table of Contents

Advertisement

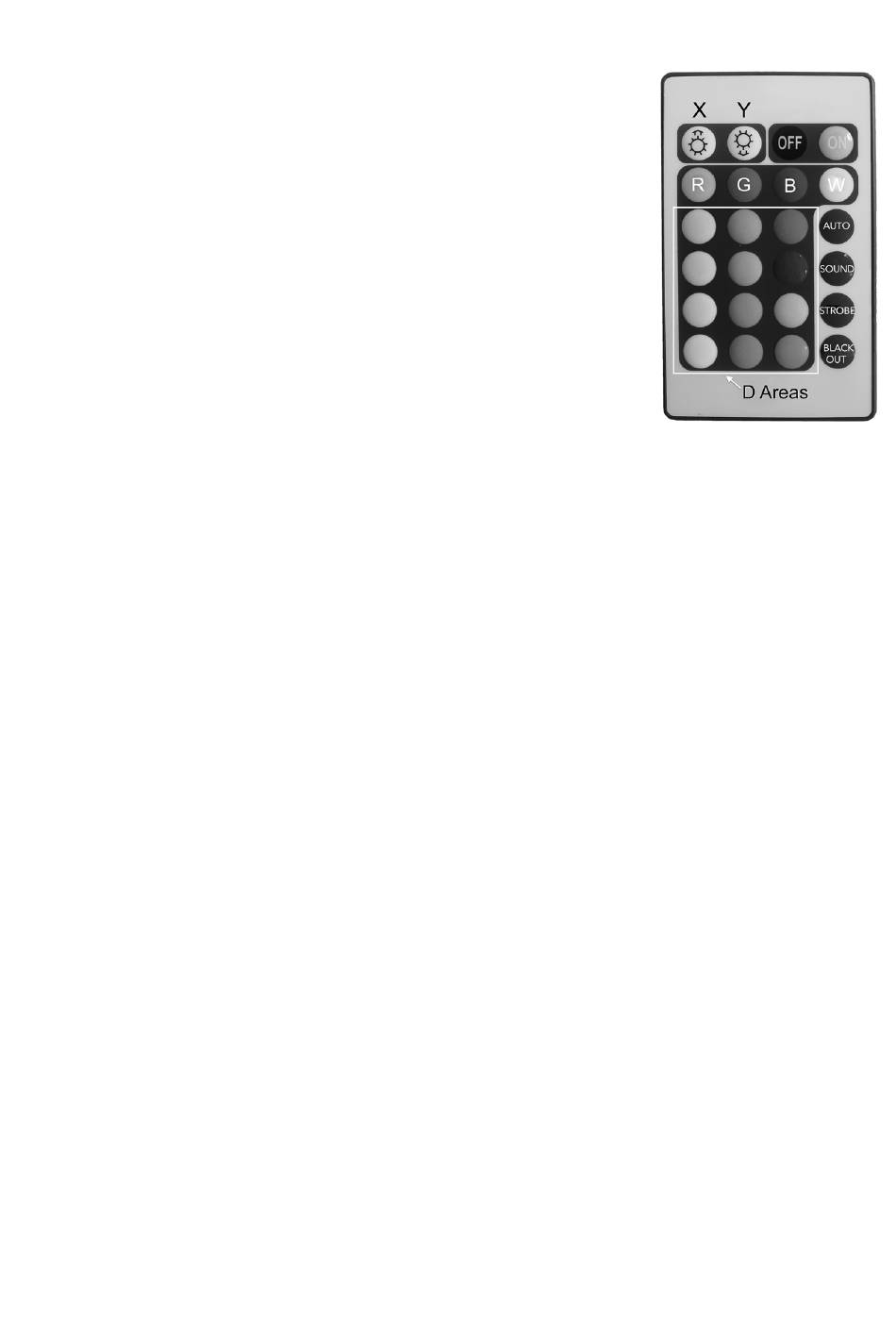

Press R/G/B/W to light up the LEDs in red, green, blue, white, amber or
UV respectively. There is also a selection of pre-set colours underneath
the R/G/B/W buttons, known as the D Area. Press a button in the D
Area to select that colour.
Press X to increase the intensity of the selected colour and Y to
decrease the intensity of the selected colour.
Press Auto/Sound/Strobe to switch on or off Auto mode, Sound Active
mode and Strobe mode, respectively.
Press Blackout to clear all the remote settings and blackout
PAR12X8L.

Technical Specifications

Photometric
Light Source: 12x 8W RGBW 4-in-1 LEDs
Beam Angle: 40°
PWM: 20,000Hz
LED Lifespan: 50,000hours
Effects
Dimming: 0~100%
Strobe: 1 - 20 Hz
Power
Input Voltage: 100~240V AC, 50/60Hz
Power Consumption: 60W
Connection: IEC in/out
Control
Operation Modes: DMX, manual, auto, sound active, IR remote, master/slave
DMX channels: 4/9
Housing
Cooling: Fanless Cooling
Net weight: 1.85kg

Warranty

Please refer to your local dealer or contact Event Lighting.
www.event-lighting.com.au
