Event Lighting PANX22 User Manual

Led pix panel
Hide thumbs

Advertisement

Quick Links

Download this manual

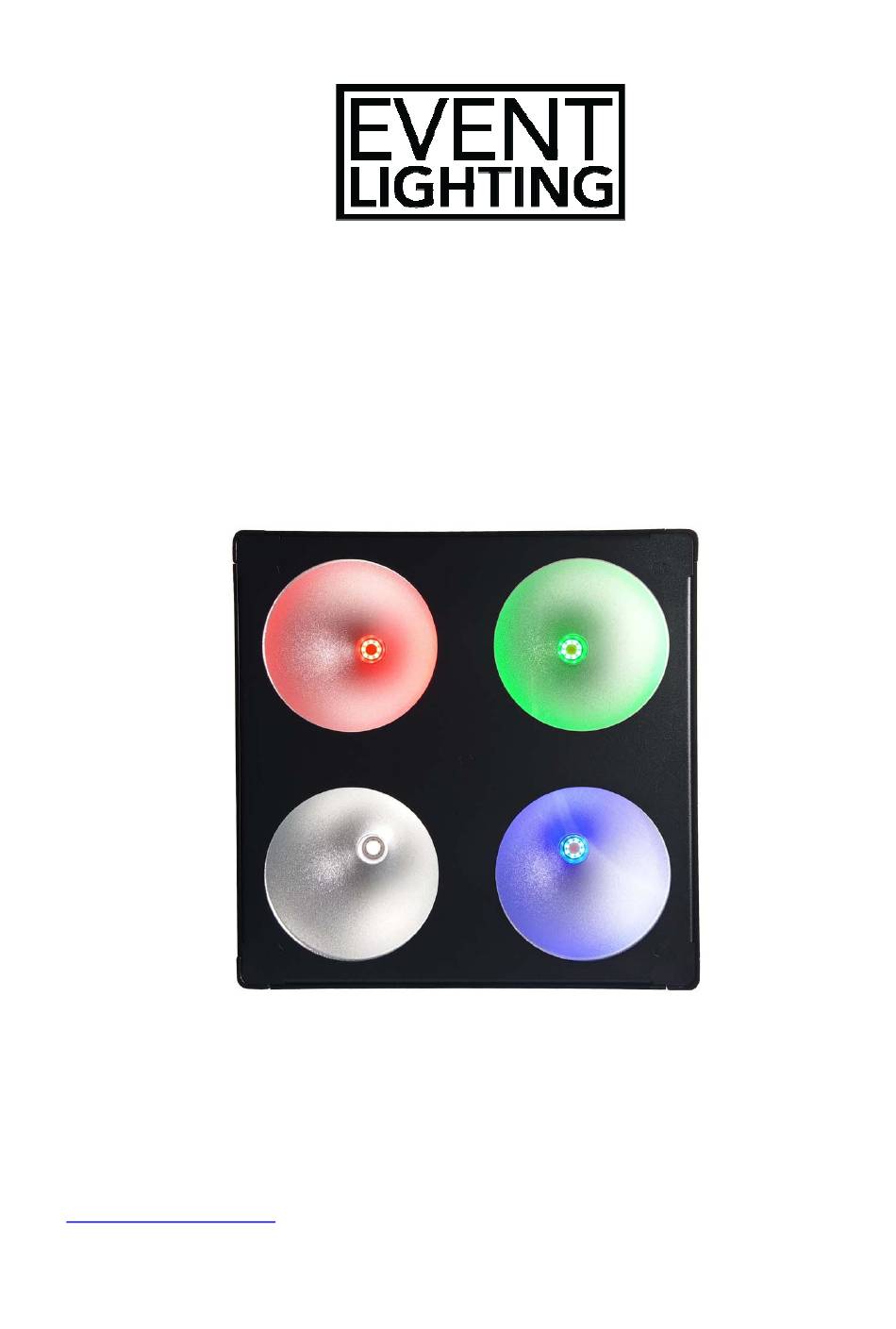

LED Pix Panel
PANX22
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.0 (21.11.2024)

Advertisement

loading
Need help?

Need help?

Do you have a question about the PANX22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Event Lighting PANX22

Summary of Contents for Event Lighting PANX22

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.

  • Page 2: Table Of Contents

    www.event-lighting.com.au CONTENTS Safety Instructions......................2 Product Installation....................... 2 Lux Chart ........................3 Dimensions ........................4 Control Board Operation ................... 5-7 DMX Chart ......................8-11 Technical Specifications..................... 12 Warranty ........................12...

  • Page 3: Safety Instructions

    www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...

  • Page 4: Lux Chart

    www.event-lighting.com.au LUX CHART...

  • Page 5: Dimensions

    www.event-lighting.com.au DIMENSIONS...

  • Page 6: Control Board Operation

    www.event-lighting.com.au CONTROL BOARD OPERATION Display Options / Values Function 1.DMX Address <001> - <512> Set DMX address 2.DMX Channel <01> <02> <03> <4CW> <4WW> Select DMX channel mode <08> <11> <12> 3.Dim Mode <01> <02> <03> <04> <05> Select dimmer curve 4.Static Color R, G, B,C,W, RG, GB, RB, RGB…...
  • Page 7 www.event-lighting.com.au Set Static Colours Mode: Value: Function: Static color <R> Static color <G> Green Static color <B> Blue Static color <C> Cool White Static Color Static color <W> Warm White Static color <RG> Red + Green Static color <BG> Green + Blue Static color <RB>...
  • Page 8 www.event-lighting.com.au Set auto run Pr01 - Pr18 Entered "Auto Program" mode, use “Up” and “Down” button to select the built-in programs. Press “Enter" and use “Up” and “Down” button to select auto run speed from <Sp000> to <Sp100>. Press “Enter" and use “Up” and “Down” button to select dimmer of “Auto Program”...

  • Page 9: Dmx Chart

    www.event-lighting.com.au DMX CHART 1 channels mode Channel Value Function 000-255 dimmer 0% ~ 100% (dim the preset color selected in Menu) 2 channels mode Channel Value Function 000-255 Warm white to cool white 000-255 Dimmer 0% ~ 100% 3 channels mode Channel Value Function...
  • Page 10 www.event-lighting.com.au 000-255 Cool White: 0% ~ 100% 000-255 Warm White: 0% ~ 100% 000-255 Dimmer Coarse 000-255 Dimmer Fine 000-015 No function (Shutter On) 016-119 Strobe Slow -> Fast(1-25HZ) 120-127 No function (Shutter On) 128-183 Strobe Random Slow -> Fast 184-191 No function (Shutter On) 192-247...
  • Page 11 www.event-lighting.com.au 220-224 Color Temperature 5 225-229 Color Temperature 6 230-234 Color Temperature 7 235-239 Color Temperature 8 240-244 Color Temperature 9 Cool 245-249 Color Temperature 10 250-255 Color Temperature 11 000-009 No Function 010-021 Auto Run 1 022-034 Auto Run 2 035-047 Auto Run 3 048-060...
  • Page 12 www.event-lighting.com.au 22 channels mode Channel Value Function 000-255 LED 1 Red: 0% ~ 100% 000-255 LED 1 Green: 0% ~ 100% 000-255 LED 1 Blue: 0% ~ 100% 000-255 LED 1 Cool White: 0% ~ 100% 000-255 LED 1 Warm White: 0% ~ 100% 000-255 LED 2 Red: 0% ~ 100% 000-255...

  • Page 13: Technical Specifications

    -Software Upgrade via DMX: Yes Housing -Housing Materials: Aluminium Housing -Housing finish: Matte Black -Cooling: Fanless Cooling -Dimension: 213 x 213 x 136mm -Net Weight: 3.85 kg WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au...
