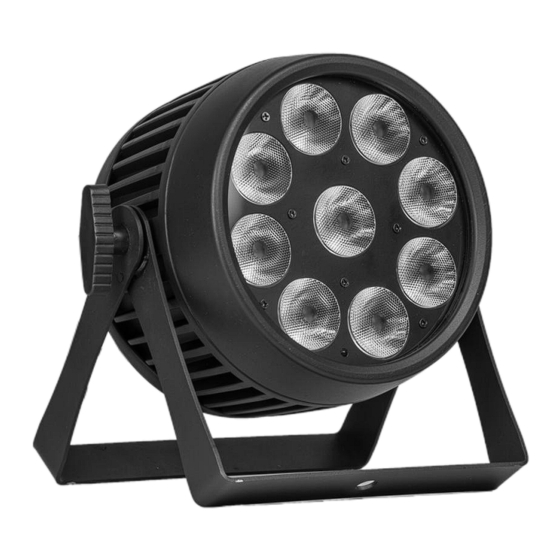

Event Lighting PAR9X15O User Manual

9x 15w rgbw 4-in-1 outdoor led par
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

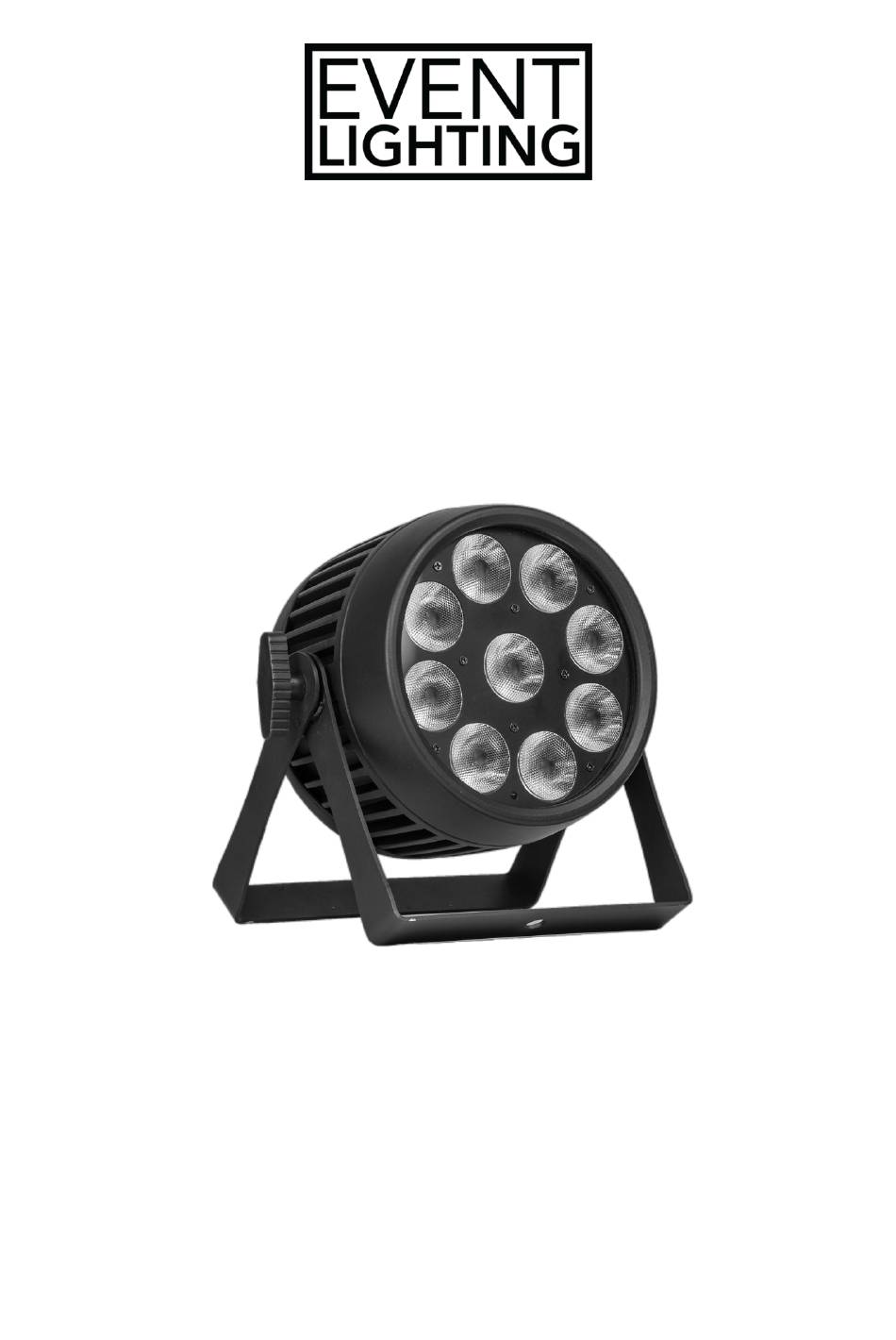

PAR9X15O
9x 15W RGBW 4-in-1 Outdoor LED PAR
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR9X15O and is the answer not in the manual?

Questions and answers

Related Manuals for Event Lighting PAR9X15O

Summary of Contents for Event Lighting PAR9X15O

  • Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Safety Instructions

    Stop using this device immediately if a serious operating problem becomes apparent. Product Installation PAR9X15O can be mounted in many orientations, provided each individual device is secured by the use of the correct mounting bracket. Use a safety chain when mounting PAR9X15O...

  • Page 3: Lux Chart

    www.event-lighting.com.au Dimensions Lux Chart Distance (m) Diameter (m) Ø 0.88 Ø 1.77 Ø 2.65 Ø 3.55 3950 Green 7220 Blue 10550 1405 White 6790 Full 22500 3040 Control Operation Button Operation Menu: Return to the previous screen. Up: Move selection up. Down: Move selection down.
  • Page 4 www.event-lighting.com.au Menu Set DMX Address Code 1. Press Menu until “Address Set” is highlighted then press Enter. 2. The screen will display “Address Set: 001”. Press Up or Down to change. 3. Press Enter to save and exit, or press Menu to exit without saving.
  • Page 5 www.event-lighting.com.au Menu Description Level 1 Level 2 Level 3 Description Address 001-512 DMX Address Setting DMX ch. 4 ch 4 channel DMX mode 6 ch 6 channel DMX mode 8 ch 8 channel DMX mode Auto/Sound Jump Speed Colour Jump mode. Adjustable speed (0-99). Colour Jump mode.

  • Page 6: Dmx Chart

    www.event-lighting.com.au DMX Chart 4-Channel Mode Channel Value Function Description 0-255 Red Intensity Red 0-100% 0-255 Green Intensity Green 0-100% 0-255 Blue Intensity Blue 0-100% 0-255 White Intensity White 0-100% 6-Channel Mode Channel Value Function Description 0-255 Red Intensity Red 0-100% 0-255 Green Intensity Green 0-100%...

  • Page 7: Warranty

    Cooling: Fanless Housing  Materials: Die Cast Aluminium.  Finishing: Matte Black. IP Rating: IP65.  Net Weight: 6.5kg  Overall Size: 234x195x144 mm.   Optional: Barn Door. Warranty Please refer to your local dealer or contact Event Lighting.
