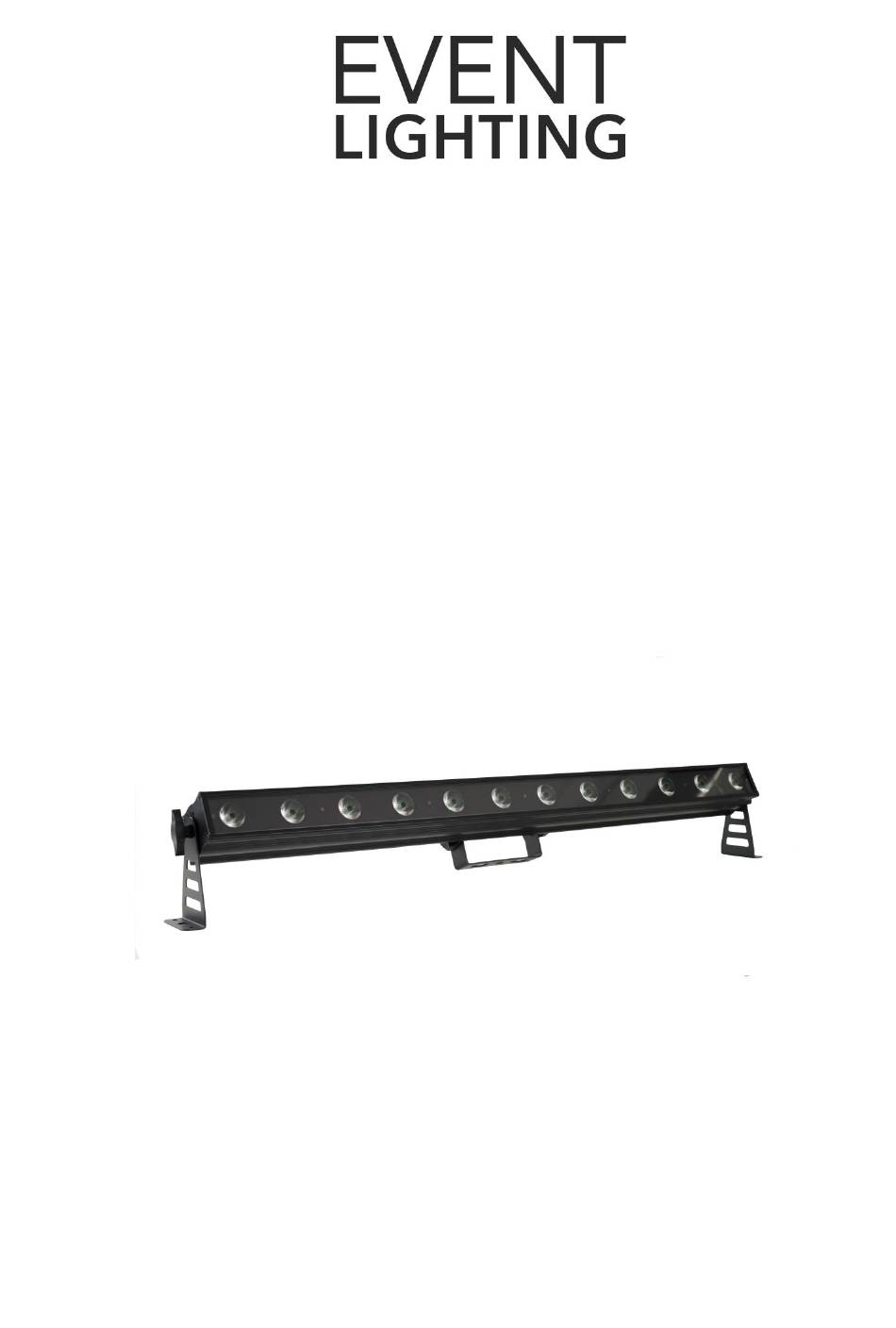

LED Pixel Bar
Model No. PIXBAR12x3 , PIXBAR12x8,PIXBAR12x12
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXBAR12x3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Event Lighting PIXBAR12x3

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
  • Page 2: Table Of Contents

    www.event-lighting.com.au CONTENTS Safety Instructions Power Input & Power Linking Product Installation Fuse replacement Diagrams Lux Chart Dimensions Control Board Operation DMX Addressing DMX Modes Sound Mode Setting Static Colors Manual Color Mode Automatic Mode Special Chaser Mode Settings for Master device Setting for the slave devices DMX Values Technical Specifications...
  • Page 3: Safety Instructions

    www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...
  • Page 4: Lux Chart

    www.event-lighting.com.au Lux Chart Dimensions...
  • Page 5: Control Board Operation

    CONTROL BOARD OPERATION Press the Menu until one of the following had been displayed: PIXBAR12X3 PIXBAR12X3 PIXBAR12X12 Function Display Display Display 1.DMX Address 1.DMX Address 1.DMX Address To set DMX address 2.DMX Channel 2.DMX Channel 2.DMX Channel To set DMX channel modes: 12x3 Model - CH 3, 5, 6, 7, 9, 12, 18, 36 12x8 Model –...
  • Page 6 Set Static Colors Entered "Static Color", you can select the desired solid color via the “Up” or “Down” buttons, then “Enter” to confirm PIXBAR12X3 PIXBAR12X8 PIXBAR12X12 Value Function: Value Function Value Function: Green Green Green Blue Blue Blue Green + Blue...
  • Page 7: Automatic Mode

    “Down” to select the built-in auto run programs, press "Enter" to confirm. se “Up” and “Down” to select the operating speed of the auto program (Sp 000 ~ Sp100, freeze, slow ~ fast) PIXBAR12X3 & PIXBAR12X8 PIXBAR12X12 PR 01...
  • Page 8: Dmx Chart

    www.event-lighting.com.au DMX CHART PIXBAR12X12 Channel Function Ch12 Ch24 Ch72 Ch74 Red 0%-100% Green 0%-100% Blue 0%-100% White 0%-100% Amber 0%-100% UV 0%-100% Dimmer 0%-100% No function Strobe (slow to fast) No function 11 white color temperature No function 4 colors switching 36 colors switching 6 colors fading(slow in slow out) 36 colors fading(slow in slow out)
  • Page 9 www.event-lighting.com.au LED1-LED3 Red 0%-100% LED1-LED3 Green 0%-100% LED1-LED3 Blue 0%-100% LED1-LED3 White 0%-100% LED1-LED3 Amber 0%-100% LED1-LED3 UV 0%-100% LED4-LED6 Red 0%-100% LED4-LED6 Green 0%-100% LED4-LED6 Blue 0%-100% LED4-LED6 White 0%-100% LED4-LED6 Amber 0%-100% LED4-LED6 UV 0%-100% LED7-LED9 Red 0%-100% LED7-LED9 Green 0%-100% LED7-LED9 Blue 0%-100% LED7-LED9 White 0%-100%...
  • Page 10 www.event-lighting.com.au LED4 Red 0%-100% LED4 Green 0%-100% LED4 Blue 0%-100% LED4 White 0%-100% LED4 Amber 0%-100% LED4 UV 0%-100% LED5 Red 0%-100% LED5 Green 0%-100% LED5 Blue 0%-100% LED5 White 0%-100% LED5 Amber 0%-100% LED5 UV 0%-100% LED6 Red 0%-100% LED6 Green 0%-100% LED6 Blue 0%-100% LED6 White 0%-100%...
  • Page 11 www.event-lighting.com.au LED11 Red 0%-100% LED11 Green 0%-100% LED11 Blue 0%-100% LED11 White 0%-100% LED11 Amber 0%-100% LED11 UV 0%-100% LED12 Red 0%-100% LED12 Green 0%-100% LED12 Blue 0%-100% LED12 White 0%-100% LED12 Amber 0%-100% LED12 UV 0%-100% Master dimmer No function Strobe (slow to fast)
  • Page 12 PIXBAR12X3 Channel Function Ch12 Ch18 Ch36 Red 0%-100% Green 0%-100% Blue 0%-100% Dimmer 0%-100% No function Strobe (slow to fast) No function 4 colors switching 15 colors switching Color Macros Auto chasing 1 Auto chasing 2 Auto chasing 3...
  • Page 13 www.event-lighting.com.au LED4-LED6 Green 0%-100% LED4-LED6 Blue 0%-100% LED7-LED9 Red 0%-100% LED7-LED9 Green 0%-100% LED7-LED9 Blue 0%-100% LED10-LED12 Red 0%-100% LED10-LED12 Green 0%-100% LED10-LED12 Blue 0%-100% LED1-LED2 Red 0%-100% LED1-LED2 Green 0%-100% LED1-LED2 Blue 0%-100% LED3-LED4 Red 0%-100% LED3-LED4 Green 0%-100% LED3-LED4 Blue 0%-100% LED5-LED6 Red 0%-100% LED5-LED6 Green 0%-100%...
  • Page 14 www.event-lighting.com.au LED6 Green 0%-100% LED6 Blue 0%-100% LED7 Red 0%-100% LED7 Green 0%-100% LED7 Blue 0%-100% LED8 Red 0%-100% LE82 Green 0%-100% LED8 Blue 0%-100% LED9 Red 0%-100% LED9 Green 0%-100% LED9 Blue 0%-100% LED10 Red 0%-100% LED10 Green 0%-100% LED10 Blue 0%-100% LED11 Red 0%-100% LED11 Green 0%-100%...
  • Page 15 www.event-lighting.com.au PIXBAR12X8 Channel Function Ch12 Ch16 Ch24 Ch48 Ch50 Red 0%-100% Green 0%-100% Blue 0%-100% White 0%-100% Dimmer 0%-100% No function Strobe (slow to fast) No function R G B colors switching 7 colors switching 7 colors macros fading Auto chasing 1 Auto chasing 2 Auto chasing 3 Auto chasing 4...
  • Page 16 www.event-lighting.com.au LED5-LED8 Red 0%-100% LED5-LED8 Green 0%-100% LED5-LED8 Blue 0%-100% LED5-LED8 White 0%-100% LED9-LED12 Red 0%-100% LED9-LED12 Green 0%-100% LED9-LED12 Blue 0%-100% LED9-LED12 White 0%-100% LED1-LED3 Red 0%-100% LED1-LED3 Green 0%-100% LED1-LED3 Blue 0%-100% LED1-LED3 White 0%-100% LED4-LED6 Red 0%-100% LED4-LED6 Green 0%-100% LED4-LED6 Blue 0%-100% LED4-LED6 White 0%-100%...
  • Page 17 www.event-lighting.com.au LED9-LED10 Blue 0%-100% LED9-LED10 White 0%-100% LED11-LED12 Red 0%-100% LED11-LED12 Green 0%-100% LED11-LED12 Blue 0%-100% LED11-LED12 White 0%-100% LED1 Red 0%-100% LED1 Green 0%-100% LED1 Blue 0%-100% LED1 White 0%-100% LED2 Red 0%-100% LED2 Green 0%-100% LED2 Blue 0%-100% LED2 White 0%-100% LED3 Red 0%-100% LED3 Green 0%-100%...
  • Page 18 www.event-lighting.com.au LED10 Red 0%-100% LED10 Green 0%-100% LED10 Blue 0%-100% LED10 White 0%-100% LED11 Red 0%-100% LED11 Green 0%-100% LED11 Blue 0%-100% LED11 White 0%-100% LED12 Red 0%-100% LED12 Green 0%-100% LED12 Blue 0%-100% LED12 White 0%-100% Master dimmer Strobe (slow to fast)
  • Page 19: Technical Specifications

    Aluminum housing with hanging bracket and floor stand on both end Smart Cooling system without fan Net weight Overall Size 425 x 187 x 163 mm Road case available WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
