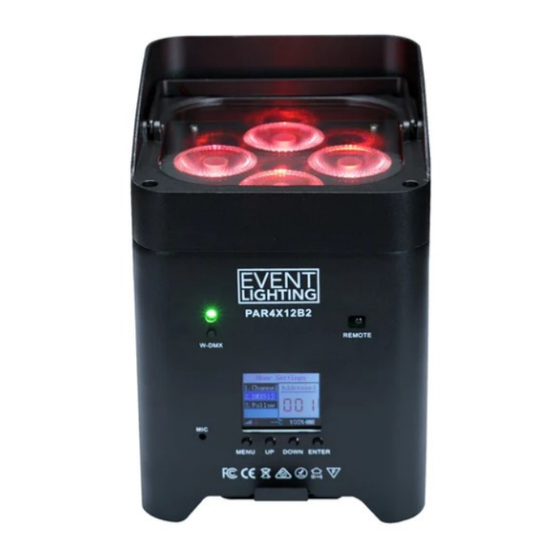

Event Lighting PAR4X12B2 User Manual

4x12w rgbwauv led par with wireless dmx & ir remote
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

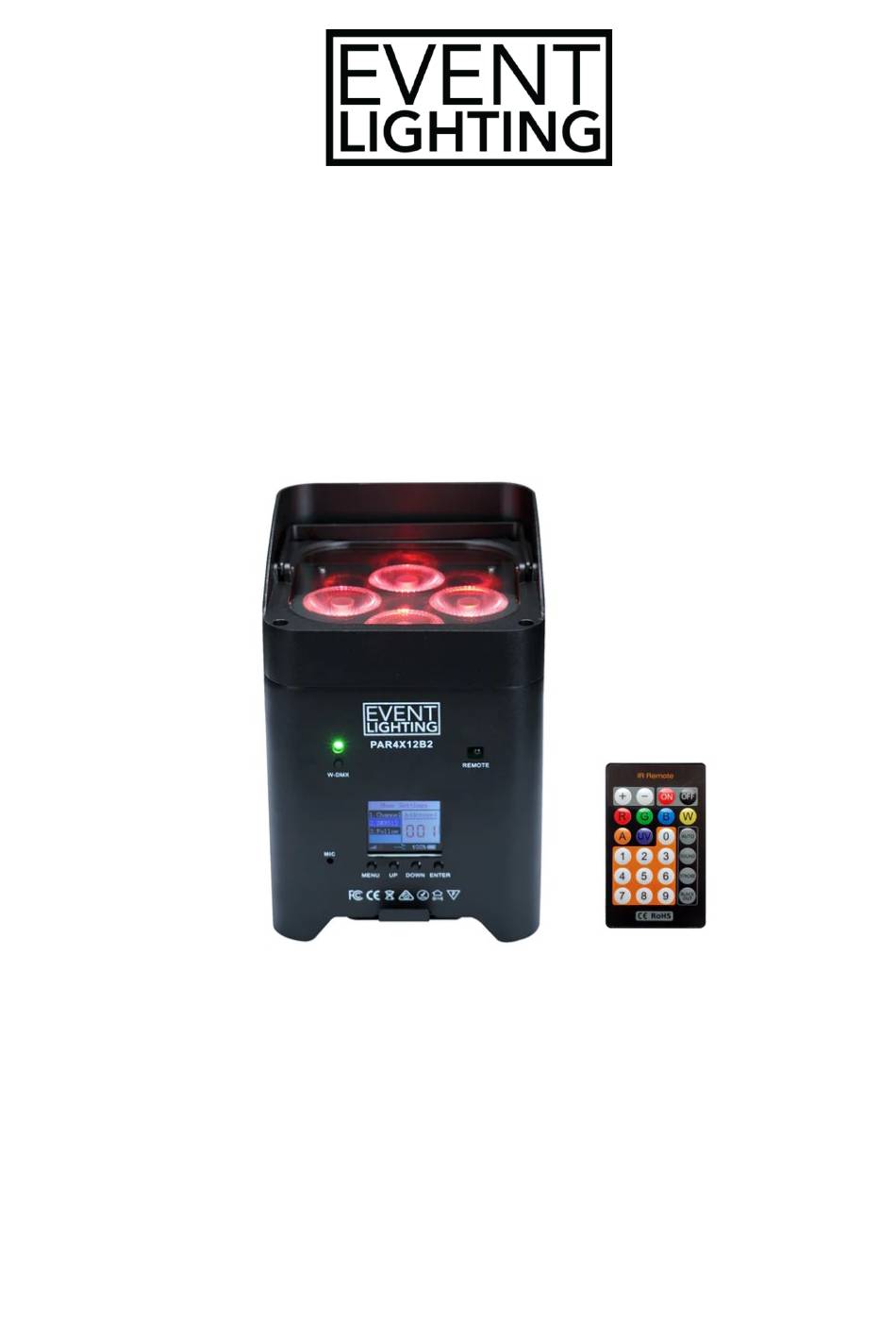

PAR4X12B2
4x12W RGBWAUV LED PAR with Wireless DMX & IR Remote
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version 1.0 (September 2023)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR4X12B2 and is the answer not in the manual?

Questions and answers

Related Manuals for Event Lighting PAR4X12B2

Summary of Contents for Event Lighting PAR4X12B2

  • Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Product Installation

    Stop using this device immediately if a serious operating problem becomes apparent. Product Installation PAR4X12B2 can be mounted in many orientations, provided each individual device is secured by the use of the correct mounting bracket. Use a safety chain when mounting PAR9X120B overhead...

  • Page 3: Control Operation

    www.event-lighting.com.au Control Operation MENU Main Menu Function Select I Exit Submenu Select Previous Menu / Parameter Increase by degrees DOWN Choose the next menu / parameter decrease by degrees ENTER Confirm the selected function / Enter the next menu Set DMX Set DMX Address Code 1.

  • Page 4: Menu Description

    www.event-lighting.com.au Menu Description Menu Level1 Level2 Level3 Static Color Dimming 0-255 GREEN 0-255 BLUE 0-255 WHITE 0-255 AMBER 0-255 Choose 0-255 PURPLE Pattern STROBE 0-20 Macro 1-32 (Speed) "AUTO" Show 0-20 "FADE" 0-20 0-20 "SNAP" "R-STRO" 0-20 "G-STRO" 0-20 "B-STRO" 0-20 "A-STRO"...

  • Page 5: Dmx Chart

    www.event-lighting.com.au DMX Chart 6-Channel Mode Channel Value Function Description 0-255 Red Intensity Red 0-100% 0-255 Green Intensity Green 0-100% 0-255 Blue Intensity Blue 0-100% 0-255 White Intensity White 0-100% 0-255 Amber Intensity Amber 0-100% 0-255 UV Intensity UV 0-100% 10-Channel Mode Channel Value Function...

  • Page 6: Technical Specifications

    In order to use the IR Remote, If a OMX signal is received, PAR4X12B2 will prioritise the OMX signal and ignore the IR Remote. Use On/Off to turn PAR4X12B2 on or off. Press R/G/B/W/A/U to light up the LEDs in red, green, blue, white, amber or UV respectively,press + or - to adjust R/G/B/W/A/U.
