Fits:
1999 - CURRENT
1999 – 2004
2001 – CURRENT
1999 – CURRENT
1999 – 2004
2001 – CURRENT
CAN FIT WITH DEF TANKS.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Side Bar
1
Passenger/Right Side Bar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Rear Mounting Bracket
Passenger/Right
front Mounting
Bracket

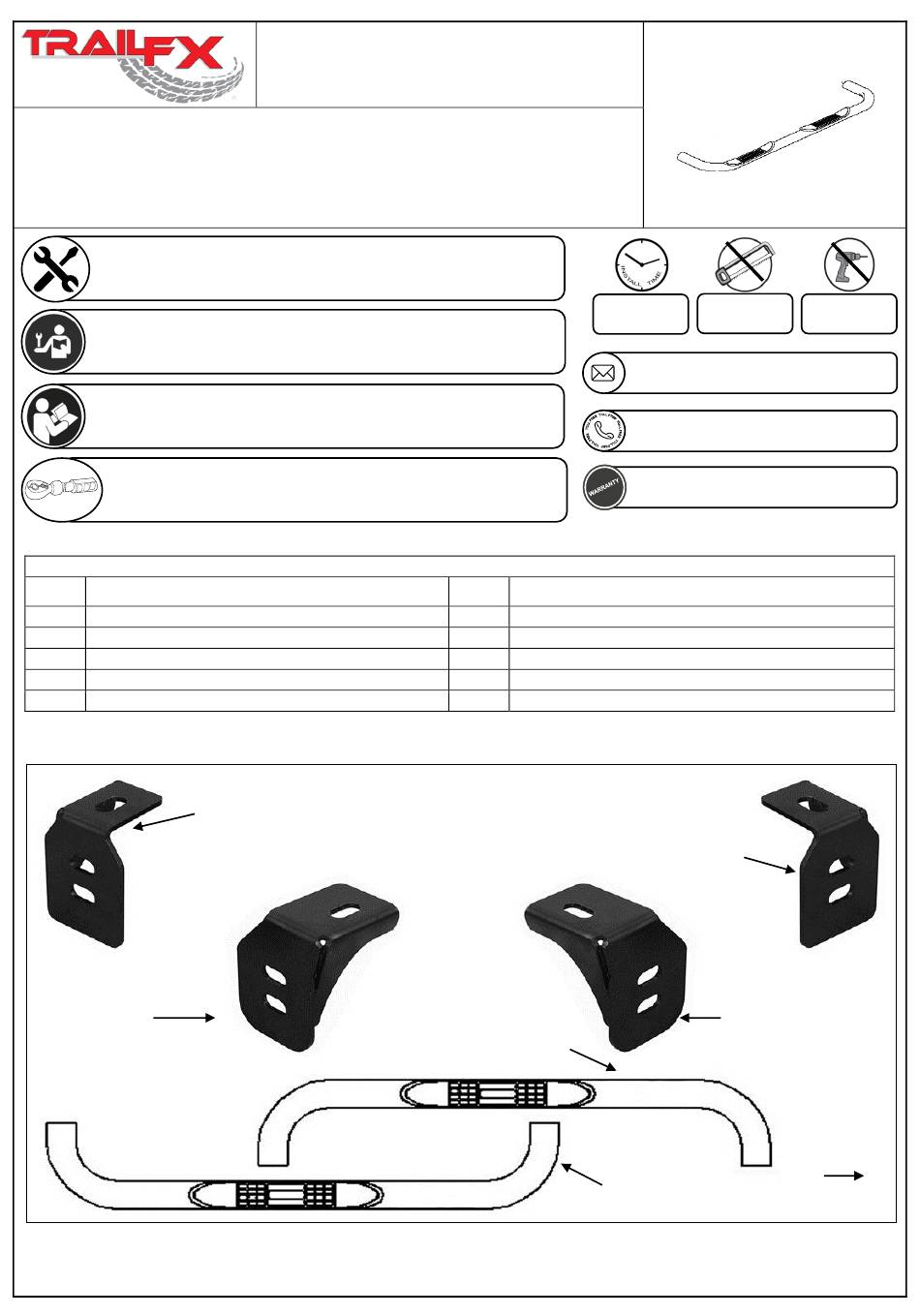

Page 1 of 5
Part No. A0029S/B
Chevrolet Silverado 1500 Regular Cab
Chevrolet Silverado 2500 (LD) Regular Cab
Chevrolet Silverado 2500HD/3500 Regular Cab
GMC Sierra 1500 Regular Cab
GMC Sierra 2500 (LD) Regular Cab
GMC Sierra 2500HD/3500 Regular Cab
Part Description
Passenger/Right rear
Mounting Bracket

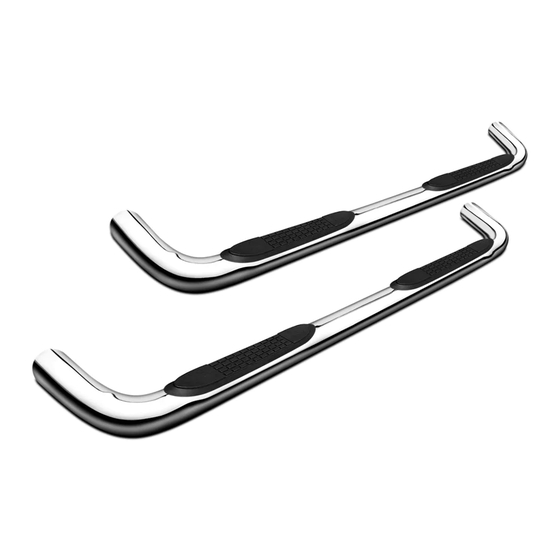

3" Side Bar
PARTS LIST:
Qty
1
Passenger/Right Rear Mounting Bracket
4
1/2" x 1-1/2" OD x 1/8" Large Flat Washers
4
1/2" Lock Washers
4
1/2" x 2" Hex Bolts
Driver/Left Sidebar
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left rear
Mounting Bracket
Passenger/Right Sidebar
www.TrailFX.com
Drilling Not
Required
Driver/Left front
Mounting Bracket
Front
Rev 110916
Advertisement
Table of Contents
Related Manuals for TrailFX A0029S
Summary of Contents for TrailFX A0029S
- Page 1 3" Side Bar Part No. A0029S/B Fits: Chevrolet Silverado 1500 Regular Cab 1999 - CURRENT 1999 – 2004 Chevrolet Silverado 2500 (LD) Regular Cab 2001 – CURRENT Chevrolet Silverado 2500HD/3500 Regular Cab 1999 – CURRENT GMC Sierra 1500 Regular Cab 1999 –...
- Page 2 IMPORTANT ALERT: GM uses a very strong thread-locking compound on all body bolts. Use of an air assisted impact ratchet can cause damage to the threads on factory body mount bolts and the internal nut assembly because of this thread locking compound.
- Page 3 Passenger side installation pictured Factory body mount bracket Front Factory body bolt, 2014 1500 pictured (Fig 1) Passenger/right front Mounting Location (Fig 2) Passenger/right front Bracket Factory body bolt Front (Fig 3) Passenger/right front Bracket Passenger side installation pictured Move toward the rear of the vehicle.
- Page 4 Determine correct mounting slots to use: 1999-2013 1500: Use the lower mounting slots. 2014-on 1500: Use the upper mounting slots. 1999-2015 25-3500: Use the lower mounting slots Use the top mounting position for 2014-on 1500 models only Factory body bolt...
- Page 5 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
