Fits: 2002-2008
2003-2009
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
Side Bar
1 Set
Front Mounting Bracket -Short
1 Set
Rear Mounting Bracket –Long
1 Set
1 Set
Front Support Bracket A
Front Support Bracket B
1 Set
Rear Support Bracket
1 Set
3/8" Plastic Washer
4
1/2"-13 x 1½'' Hex Head Bolt
2
4
3/8"-16 x 1½" Hex Head Bolt
12
3/8" Flat Washer
Page 1 of 4
Part No. A0002S/B
Dodge Ram 1500 Quad Cab
Dodge Ram 2500/3500 Quad Cab
Part Description

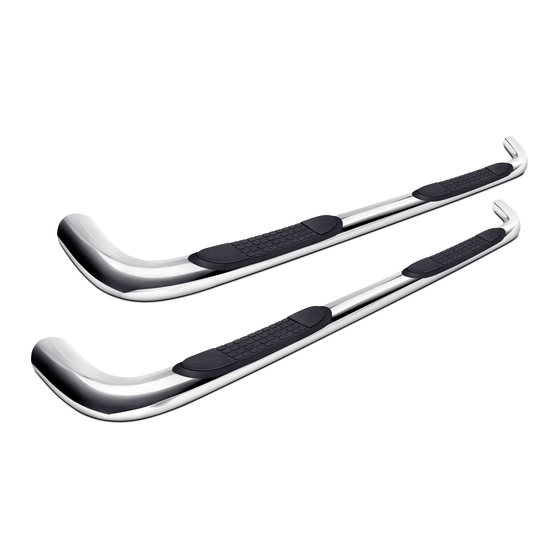

3" Side Bar
PARTS LIST:
Qty
3/8"-16 Hex Nut
8
1/2"-13 Hex Nut
2
1/2"-13 x 2" Hex Head Bolt
4
1/2" Lock Washer
10
1/2" Flat Washer
12
M12-1.75 x 120mm Hex Head Bolt
4
1/2"-1.88" Spacer washer
4
4
3/8''-16 x 11/5" ''T'' Bolt Plate
4
½" Plastic plate
8
3/8" Lock Washer
Cutting Not
30-60 min
Required
Part Description
Drilling Not
Required
Rev 010115
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TrailFX A0002S
Summary of Contents for TrailFX A0002S

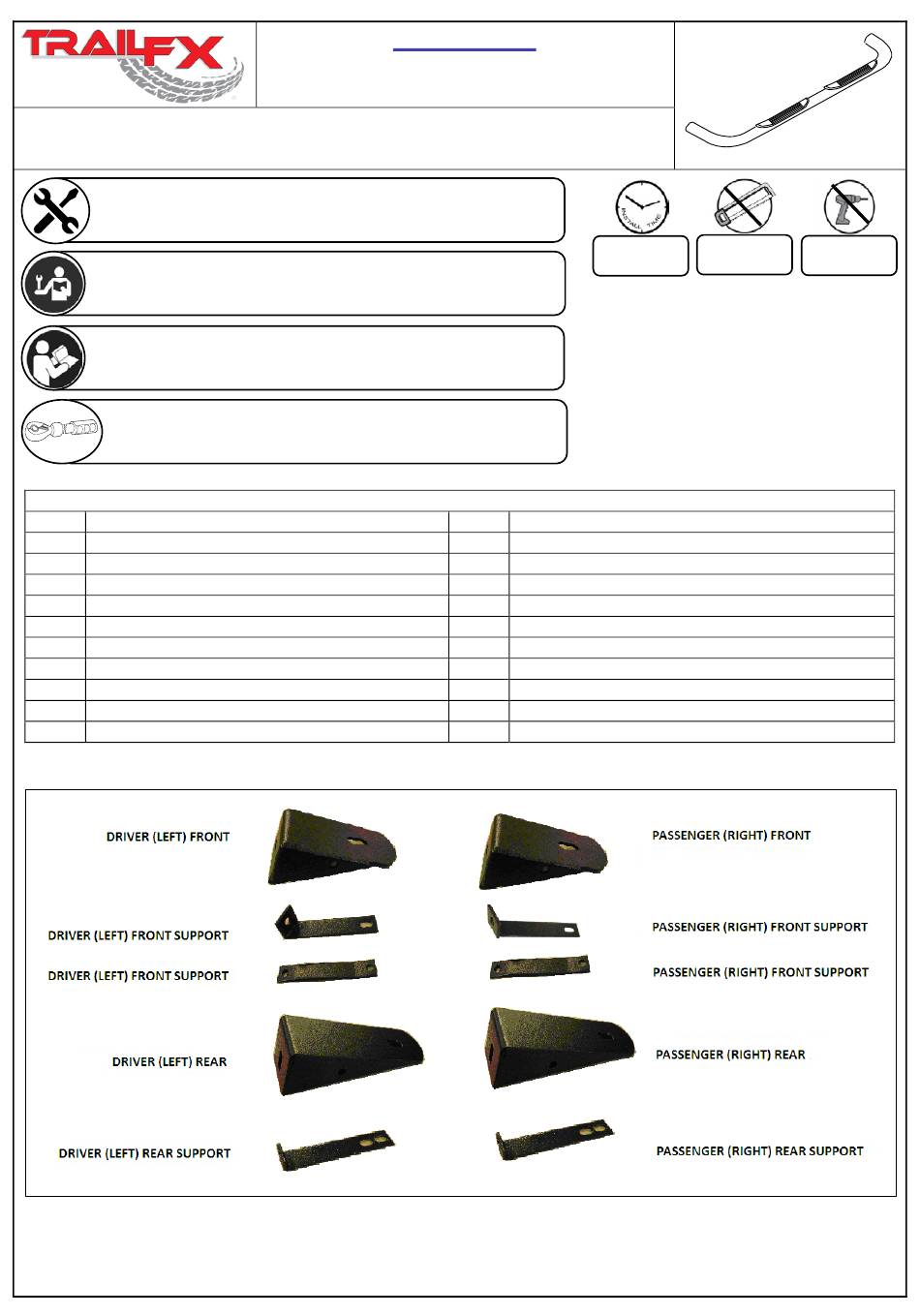

- Page 1 3” Side Bar Part No. A0002S/B Fits: 2002-2008 Dodge Ram 1500 Quad Cab 2003-2009 Dodge Ram 2500/3500 Quad Cab Cutting Not Drilling Not 30-60 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 INSTALLATION PROCEDURE From underside the driver side front of the vehicle, remove the factory body mount bolt. Remove but do not discard the rubber bushing. Install (1) M12-1.75mm x 120mm Hex Bolt with (1) 1/2”-1.88” Spacer washer and (1) 1/2” Lock Washer through the Driver Side Front Mounting Bracket.
- Page 3 FIG.3 Page 3 of 4 Rev 010115...
- Page 4 PARTS IDENTIFICATION GUIDE Driver Side tube taped in “Red” Color. Passenger Side tube taped in “Blue” Color. Parts Identification Passenger / Right ‘Rear’ Bracket marked “RR” Driver / Left ‘Rear’ Bracket marked “RL” Passenger / Right ‘Center’ Bracket marked “CR” Driver / Left ‘Center’...
