AX92352/AX92353 2-CH Encoder Card with Real-time Trigger I/O
Open Collector Type:
3.1.6

LED Lighting Control (AX92353)

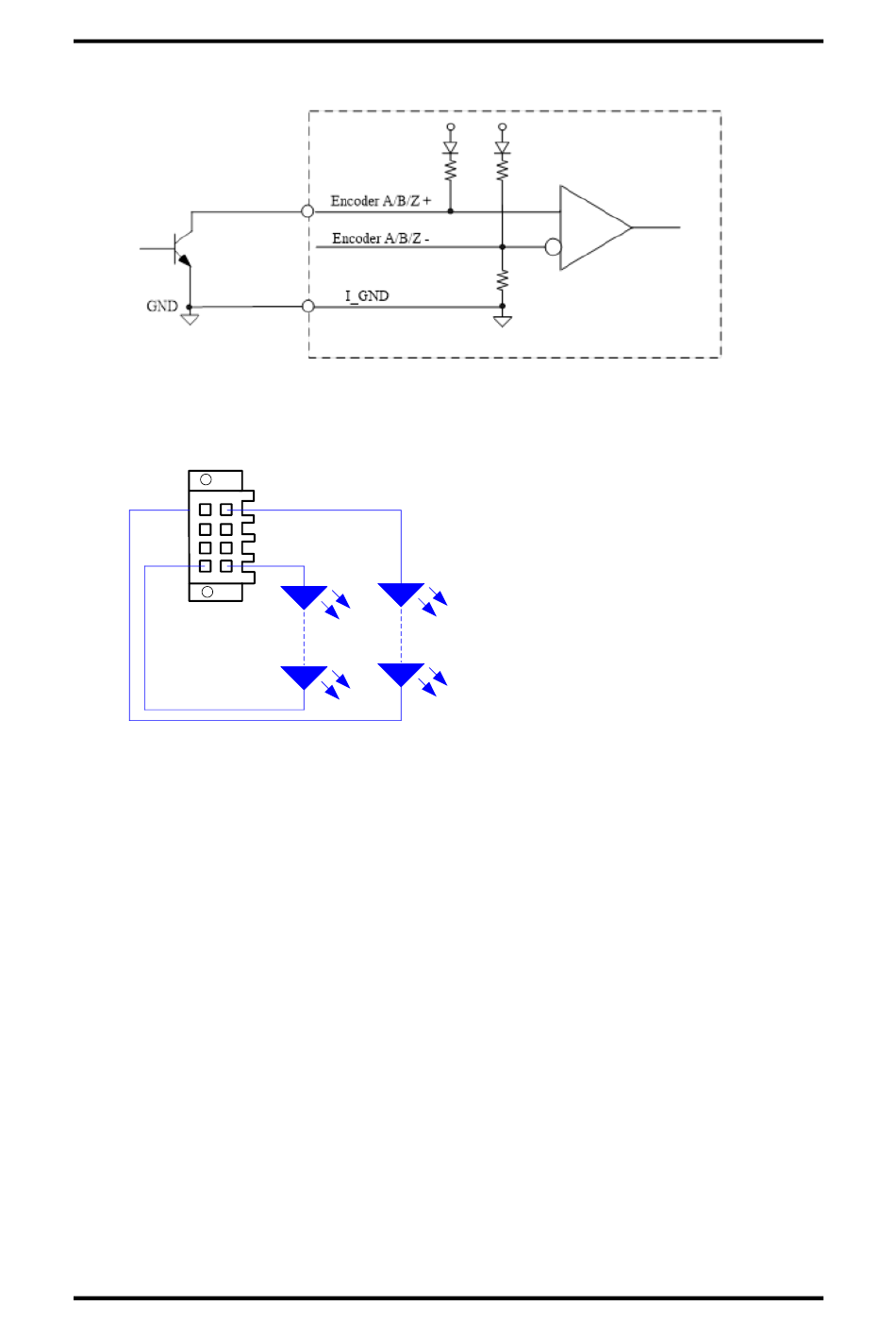

The figure shows how to connect between lighting output channel and LED.
1
2
LED1-
LED4-
7
8
14
LED1+
LED4+
I/O Connection
