2.1

Connectors

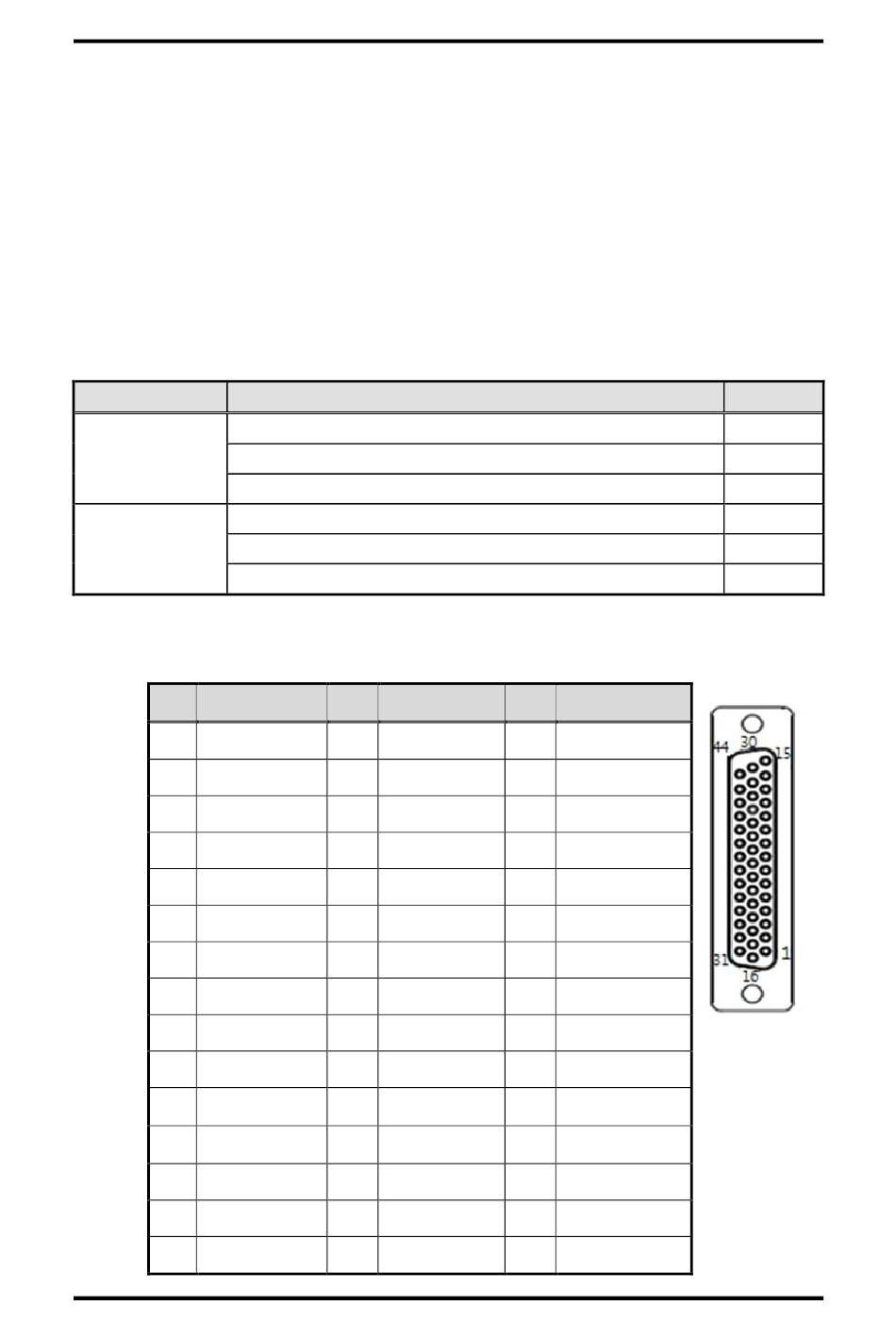

Connectors connect the board with other parts of the system. Loose or improper connection
might cause malfunctions. Make sure all connectors are properly and firmly connected.
The following table lists the function of each connector on the cards.
Model Name
AX92352
CN1
CN3
SW1
AX92353
CN1
CN2
CN3
2.1.1

44-Pin Female I/O Connector (CN 1)

Pin
Description
1
I_GND
2
Encoder0_ A+
3
Encoder0_ A-
4
Encoder0_ B+
5
Encoder0_ B-
6
Encoder0_ Z+
7
Encoder0_ Z-
8
I_GND
9
Encoder1_ A+
10
Encoder1_ A-
11
Encoder1_ B+
12
Encoder1_ B-
13
Encoder1_ Z+
14
Encoder1_ Z-
15
I_GND
Connectors
AX92352/AX92353 2-CH Encoder Card with Real-time Trigger I/O
Connectors
Pin
Description
16
DI_COM
17
DI 0
18
DI 1
19
DI 2
20
DI 3
21
DI 4
22
DI 5
23
DI 6
24
DI 7
25
I_GND
26
Trigger / Latch
input 0
27
Trigger / Latch
input 1
28
Trigger input 2
29
Trigger input 3
30
I_GND
Section 2
Connectors
Pin
Description
31
I_GND
32
DO 0
33
DO 1
34
DO 2
35
DO 3
36
DO 4
37
DO 5
38
DO 6
39
DO 7
40
I_GND
41
Trigger output 0
42
Trigger output 1
43
Trigger output 2
44
Trigger output 3
Label
