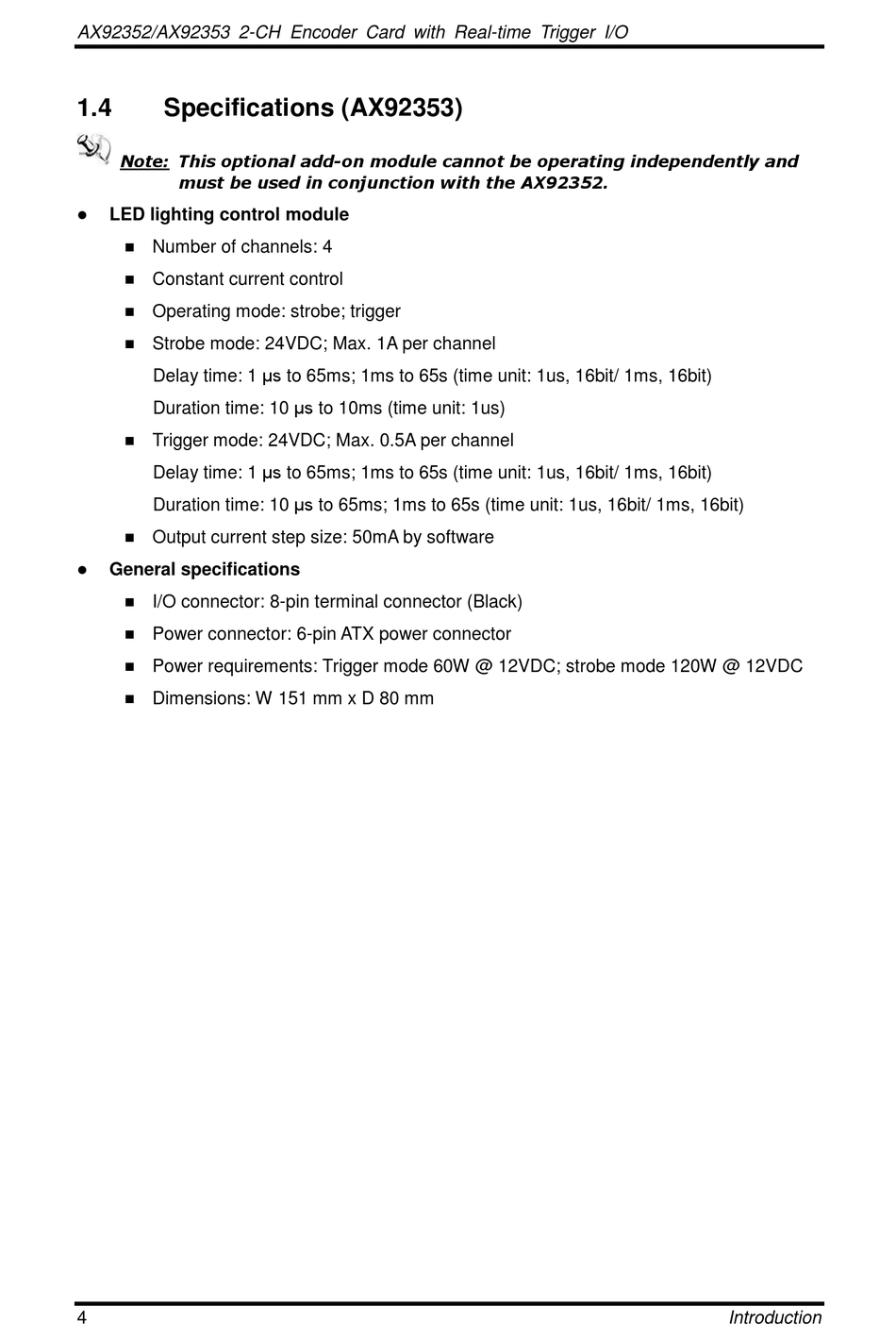

AX92352/AX92353 2-CH Encoder Card with Real-time Trigger I/O
1.4

Specifications (AX92353)

Note: This optional add-on module cannot be operating independently and
must be used in conjunction with the AX92352.

LED lighting control module
 Number of channels: 4
 Constant current control
 Operating mode: strobe; trigger

Strobe mode: 24VDC; Max. 1A per channel
Delay time: 1 μs to 65ms; 1ms to 65s (time unit: 1us, 16bit/ 1ms, 16bit)
Duration time: 10 μs to 10ms (time unit: 1us)
 Trigger mode: 24VDC; Max. 0.5A per channel
Delay time: 1 μs to 65ms; 1ms to 65s (time unit: 1us, 16bit/ 1ms, 16bit)
Duration time: 10 μs to 65ms; 1ms to 65s (time unit: 1us, 16bit/ 1ms, 16bit)
 Output current step size: 50mA by software
 General specifications
 I/O connector: 8-pin terminal connector (Black)
 Power connector: 6-pin ATX power connector

Power requirements: Trigger mode 60W @ 12VDC; strobe mode 120W @ 12VDC
 Dimensions: W 151 mm x D 80 mm
