Epilog Laser Helix Manual page 5

i. Loop the belt end around the black pulley on the
left side of the machine.
j. Place the belt end onto the left side of the lens
assembly. Tighten the screws on the plate.
9. Loosen the two pulley screws on the left side of the
X-beam. The pulley will snap into place and will
tighten the belt.
10. Gently pull the pulley assembly to the left while
tightening the two screws.
11. Replace the X-beam cover. Tighten the two screws in
the front of the X-Axis Assembly and the five screws
in the back.
12. Replace side panels.
If you have any questions, please contact Epilog's
Technical Support
Phone 303.215.9171
Fax 303.531.7594
E-Mail tech@epiloglaser.com

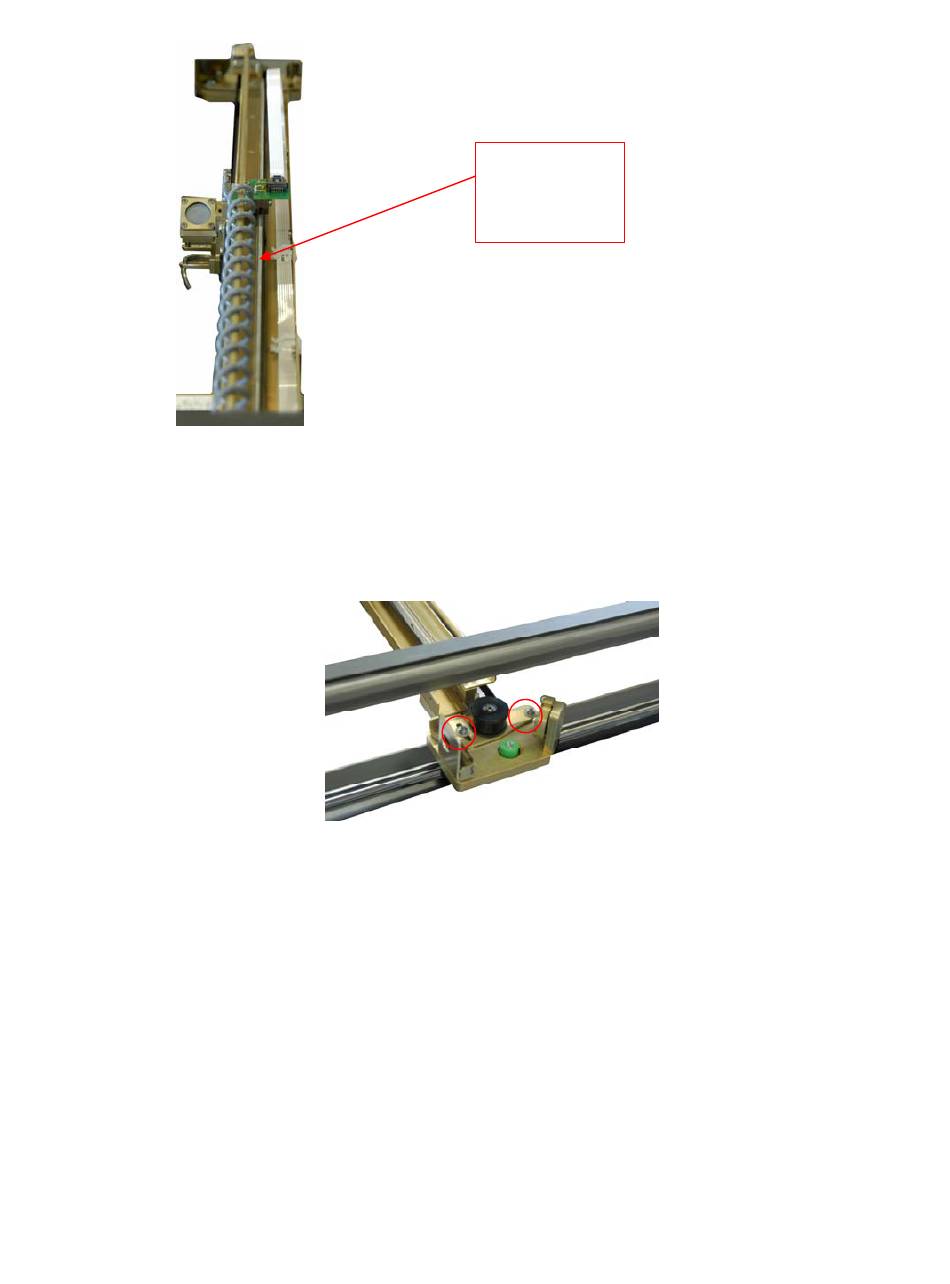

Pull belt
close to
I-beam
