Epilog Laser Zing Manual page 9

12. The next step is to verify the alignment in all 4 corners of the table. Slowly move the lens carriage from
Position #1 to Position #2, observing the location of the red dot pointer on the target. The red dot
pointer should stay within the center ring of the target. If the red dot pointer is not aligned in Position #2,
use the Mirror #2 and the diagram below, Picture 10, to align the red dot to the center of the target.
Note: If an adjustment was made to mirror #2, you must go back to Position #1 and recheck
the alignment at that position and make any necessary adjustments. You will then recheck
and align Position #2 and Position #1 again, alternating between the two positions and
rechecking alignment and adjusting each positions corresponding mirror until both positions
are aligned
13. Move the X-axis assembly back to position 1 and verify that the Red Dot pointer has not moved from the
center of the target. If the Red dot is in the center proceed to the next step. If the red dot pointer is not in
the center of the target return to step 11 and realign for position 1.

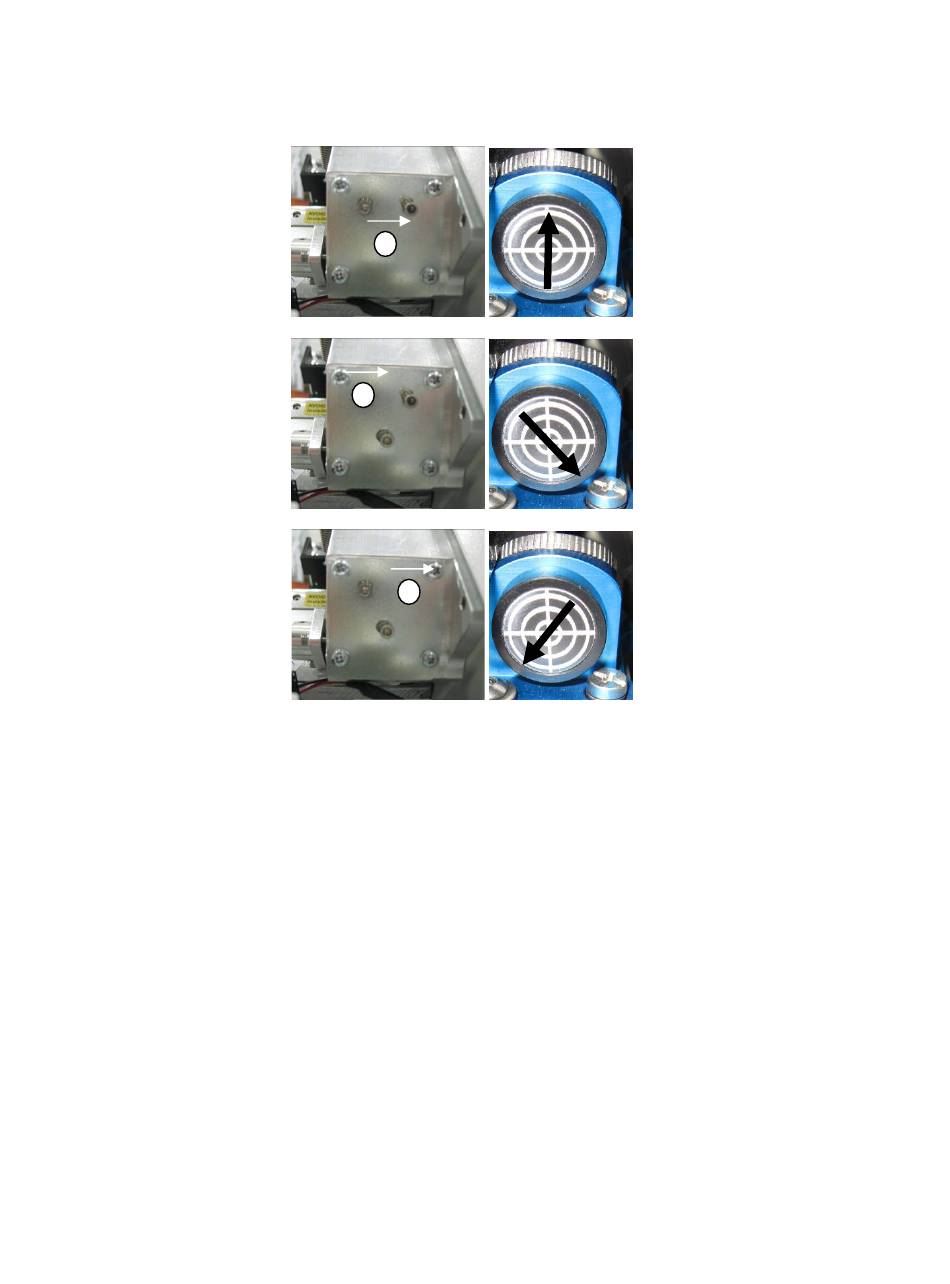

Picture 10
