EPILOG LASER
16371 Table Mountain Parkway
Golden, Colorado 80403
Phone 303-215-9171
FAX 303-277-9669
www.epiloglaser.com
Checking Table Level and
Requirements:
Tools:
•
3/32 Allen Wrench
•
Adjustable Wrench
Parts:
• N/A
Overview:
This procedure will verify and adjust the level of the table allowing the laser to
deliver power evenly across the entire bed of the engraver.
Checking Table Level and Adjustment
Zing
Revision Date: 7/21/2014
Adjustment

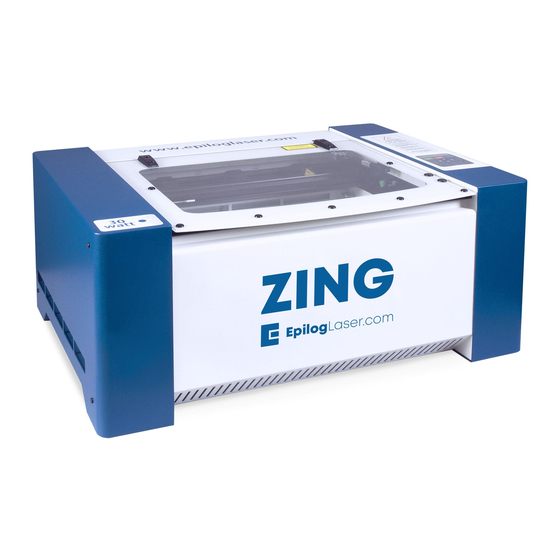

For the Epilog Zing
7/21/20 14
pg. 1 of 6
Advertisement
Table of Contents
Related Manuals for Epilog Laser Zing
Summary of Contents for Epilog Laser Zing
- Page 1 EPILOG LASER 16371 Table Mountain Parkway Golden, Colorado 80403 Phone 303-215-9171 FAX 303-277-9669 www.epiloglaser.com Checking Table Level and Adjustment For the Epilog Zing 7/21/20 14 Requirements: Tools: • 3/32 Allen Wrench • Adjustable Wrench Parts: • N/A Overview: This procedure will verify and adjust the level of the table allowing the laser to deliver power evenly across the entire bed of the engraver.
- Page 2 To tell if the engraver is in focus, swing the focus stylus. The stylus should tap angst the material but not get stuck. Checking Table Level and Adjustment Zing Revision Date: 7/21/2014 pg. 2 of 6...
- Page 3 Move the Focus Stylus to each corner of the table. The engraver should be focused on all corners of the engraving area. If there is a corner that is not level, move on to Procedure B Checking Table Level and Adjustment Zing Revision Date: 7/21/2014 pg. 3 of 6...
- Page 4 Locate and loosen the Lead Nut Clamp Screw using a 3/32 Allen Wrench until the screw spins freely. (Gain access to the bottom of the table via the Front Door.) Checking Table Level and Adjustment Zing Revision Date: 7/21/2014 pg. 4 of 6...
- Page 5 Stylus is just touching the table. Step 4 Using a 3/32 Allen Wrench, retighten the Lead Nut Clamp Screw. Step 5 Repeat this procedure for each out of corner of the table. Checking Table Level and Adjustment Zing Revision Date: 7/21/2014 pg. 5 of 6...
- Page 6 Conclusion The table should now be in focus. If you encounter any problems please contact Epilog Tech Support at (303) 215-9171. Checking Table Level and Adjustment Zing Revision Date: 7/21/2014 pg. 6 of 6...
