Epilog Laser Zing Manual page 4

8. Move the lens carriage to the lower right hand side of the engraver and inspect the position of the red
dot compared to the position of the mark that the laser beam left on the tape. If the laser and the red
dot are coaxial or aligned, the red dot will be over the mark left by the laser.
9. If the red dot pointer is over the mark left by the laser, begin the alignment procedure at STEP #6 of the
Laser Alignment Procedure. If the red dot is not over the mark left by the laser, start at STEP #1 of the
Laser Alignment Procedure

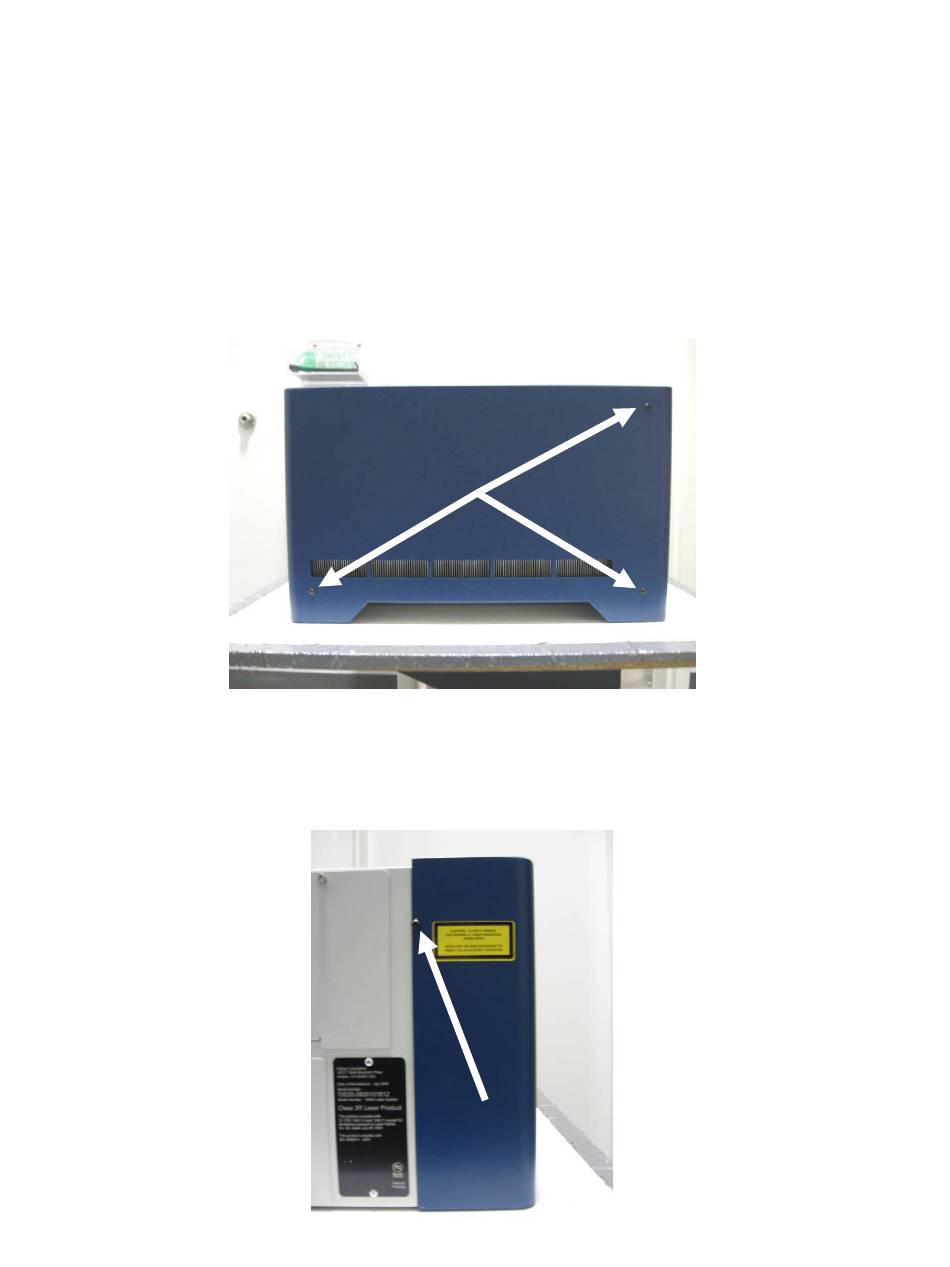

1. Remove the left hand side panel from the engraver. Do this by removing the 4 Phillips screws which
secure the panel in place. These screws are shown in pictures 2a and 2b.
Laser Alignment Procedure
Picture 2a
