Adjusting The Lower Mirror (Mirror 1) - Epilog Laser FiberMark Manual

9. Turn on the engraver
10. Turn on the Red Dot pointer.
11. Depress the "X-Y Off" button on the control panel.
12. Depress the Go button, the carriage can now be moved around the table.
13. Move the X-Axis rail to the rear and the lens carriage to the far left hand side of the
engraver.
14. Visually inspect the position of the red dot as it relates to the center of the target. Adjust the
lower mirror (mirror 1) in the "periscope" until the red dot is centered in the alignment target.
See the Diagram below for correct Red Dot position on Alignment Target.
NOTE: The Red Dot pointer on the Fiber Laser is quiet large, roughly 3/8 of an inch when it is
projected on to the surface of the target.

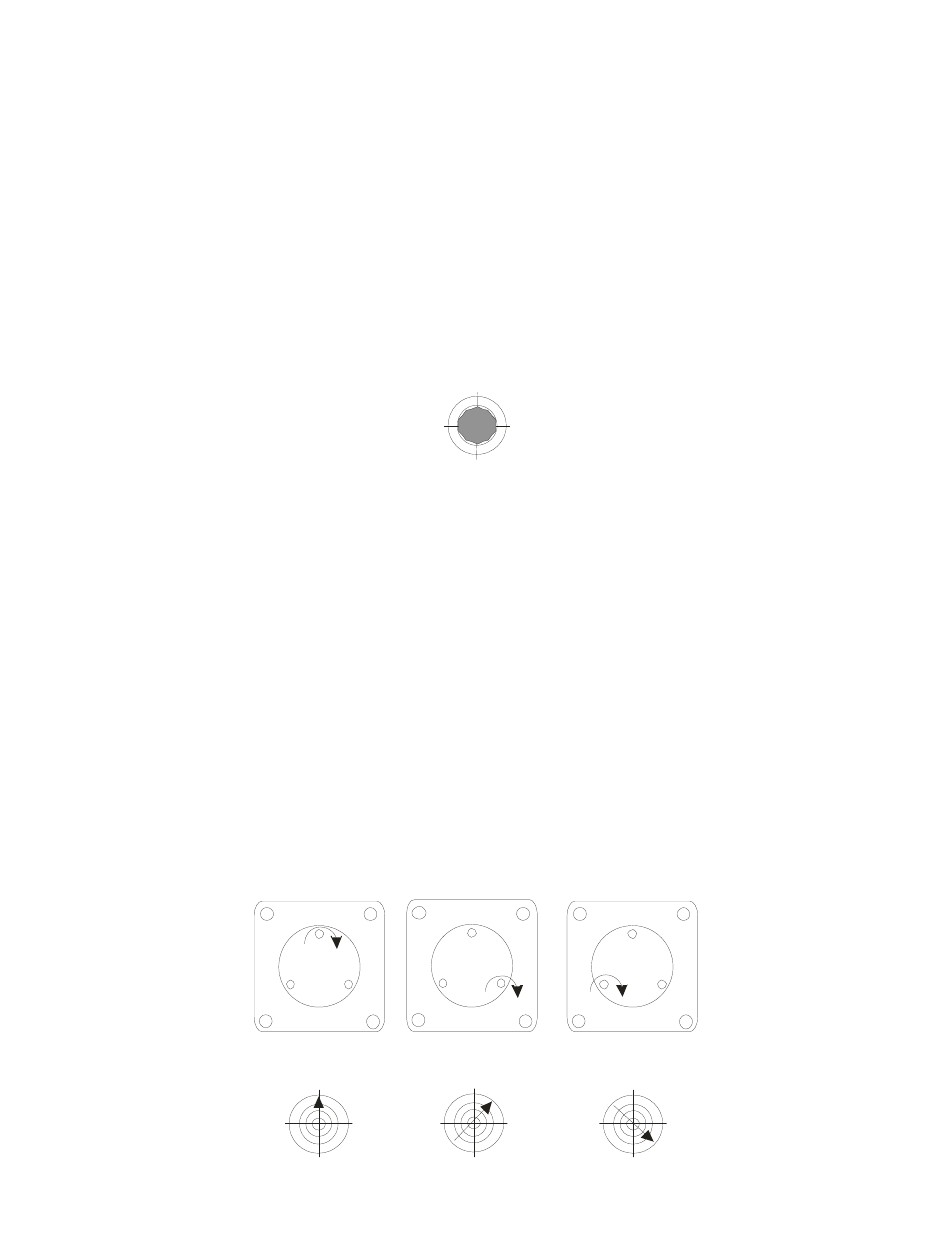

The diagram below illustrates the direction the Red Dot can be expected to move when the
indicated mirror adjustment screw is turned.
Proper Red
Dot position
on alignment
target
Top Allen Lower right
screw turned Allen screw
clockwise turned clockwise
Mirror 1 adjustment diagram
Lower left
Allen screw
turned clockwise
