LED RF WiFi Controller RGBW - 6 Zone Remote
1. Product Introduction
The LED RF WiFi RGBW remote controller has 6 different zones. It can get Red/ Green/ Blue/ White
color directly. The remote controller can save up to 6 colors or 6 modes into corresponding buttons
(1-6 positions) for each zone. You can choose any color through color wheel. you can set the system
as RGB 3-channeloutput, or RGBW 4- channel output
2. Performance Parameter
Remote LC-012-006:
Operation Voltage: 4,5VDC Lithiumbattery, Operation Frequency: 434MHZ / 868 MHZ

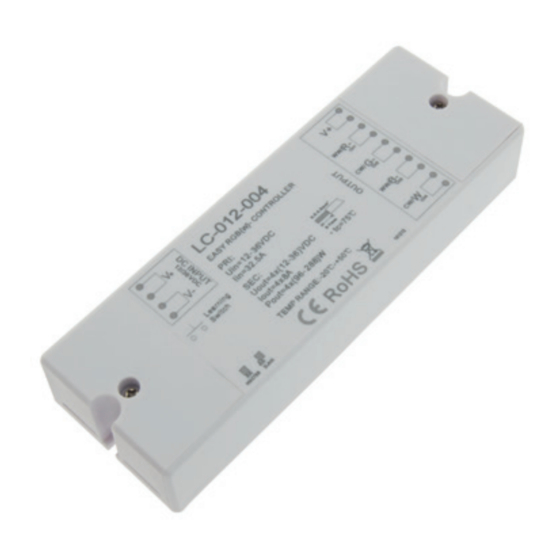

Important: With the remote control the receiver LC 012-004 can be controlled .
Thus, the receiver can be controlled by software and remote control.

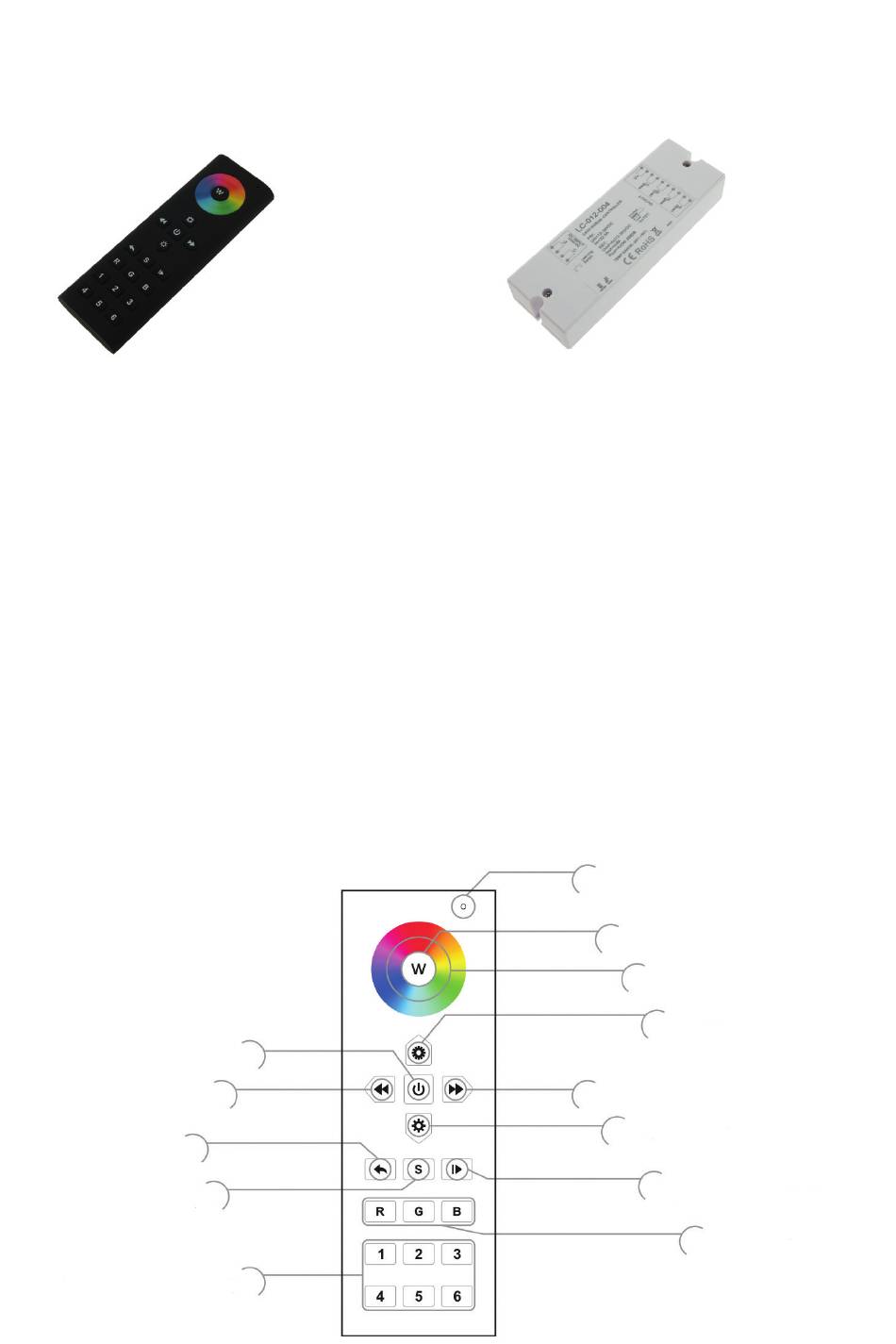

3. Brief Indoduction of Buttons
ON/OFF of all zones
Speed down under
dynamic mode
Return button
Save button: save up to
6 colors or modes into 6
positions (6-zone buttons)
6 zones: each zone can
save 6 color or modes
Remote: LC-012-006
Receiver: LC-012-004
Indicator: Indicate the state of the
remotre control
White channel: the 4th channel
Touch color wheel
Brightness: dim up
Speed up under dynamic mode
Brightness: dim down
Pause/Run button: 10
modes built-in
R/G/B channels
Advertisement
Table of Contents
Related Manuals for AUTLED LC-012-006
Summary of Contents for AUTLED LC-012-006
- Page 1 LED RF WiFi Controller RGBW - 6 Zone Remote Remote: LC-012-006 Receiver: LC-012-004 1. Product Introduction The LED RF WiFi RGBW remote controller has 6 different zones. It can get Red/ Green/ Blue/ White color directly. The remote controller can save up to 6 colors or 6 modes into corresponding buttons (1-6 positions) for each zone.
- Page 2 4. Wiring Diagram 5. Dimensions...
- Page 3 6. Operation 1. Do Wiring according to connection diagram 2. Learning (Matching) a. Wake up the remote control by touching ON/OFF button. b. Press learning button on the receiver. c. Touch any zone button on the remote control. d. Then touch the color wheel. e.
- Page 4 9. How to save color into different position per zone ? Press any zone button you want. Touch the color wheel for select an ideal color or select R/G/(B/W color by press . Long press button (the blue indicator will be on) for saving. Choose position (any button to save color.
