AUTLED LC-002-015 User Manual

Led rf controller mono-double push button module

LED RF Controller Mono - Double push button module

1. Product Description

The RF Converter Module, is a converter which convert a push switch to be a RF remote dimmer

switch

2.1 Double push button module LC-002-015:

Operation Voltage: 3VDC Battery, RF Wireless

2.2 Receiver LC-002-010:

12-36VDC Input Power, 4 channels x 5A, contant voltage, 4 channels x (60-120)W

Controller: LC-002-015

Receiver: LC-002-010

Table of Contents

Do you have a question about the LC-002-015 and is the answer not in the manual?

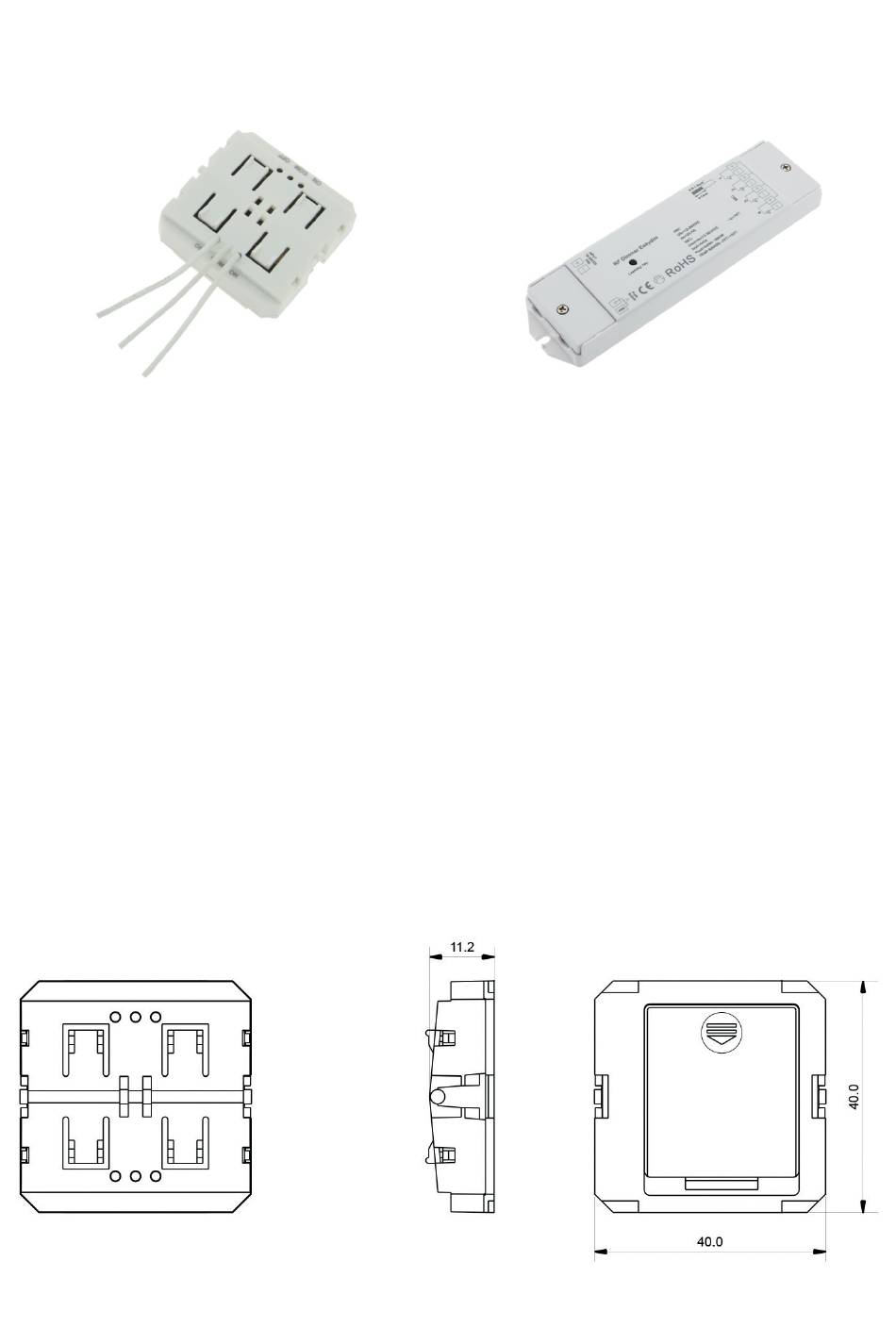

Page 1 The RF Converter Module, is a converter which convert a push switch to be a RF remote dimmer switch 2. Specification 2.1 Double push button module LC-002-015: Operation Voltage: 3VDC Battery, RF Wireless 2.2 Receiver LC-002-010: 12-36VDC Input Power, 4 channels x 5A, contant voltage, 4 channels x (60-120)W...
Page 2 4. Wiring Diagram 5. Safety Warnings The product shall be installedc and serviced by a qualified person. Please avoid directly sun and rain/wet conditions. Always be sure to mount this unit in an area with proper ventilation to avoid overhaeting. Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
Page 3 6. Instructions Connect the RF module with either of the below two kinds of push switch, once the connection is correct,the push switch will become a RF remote. Pair the connected push switch with RF receiver short press learning key on RF receiver, then immediately press the push switch.

Lc-002-010
