AUTLED LC-012-004 User Manual

Led rf wifi interface - 8 zones
Hide thumbs Also See for LC-012-004:

Advertisement

Quick Links

Download this manual

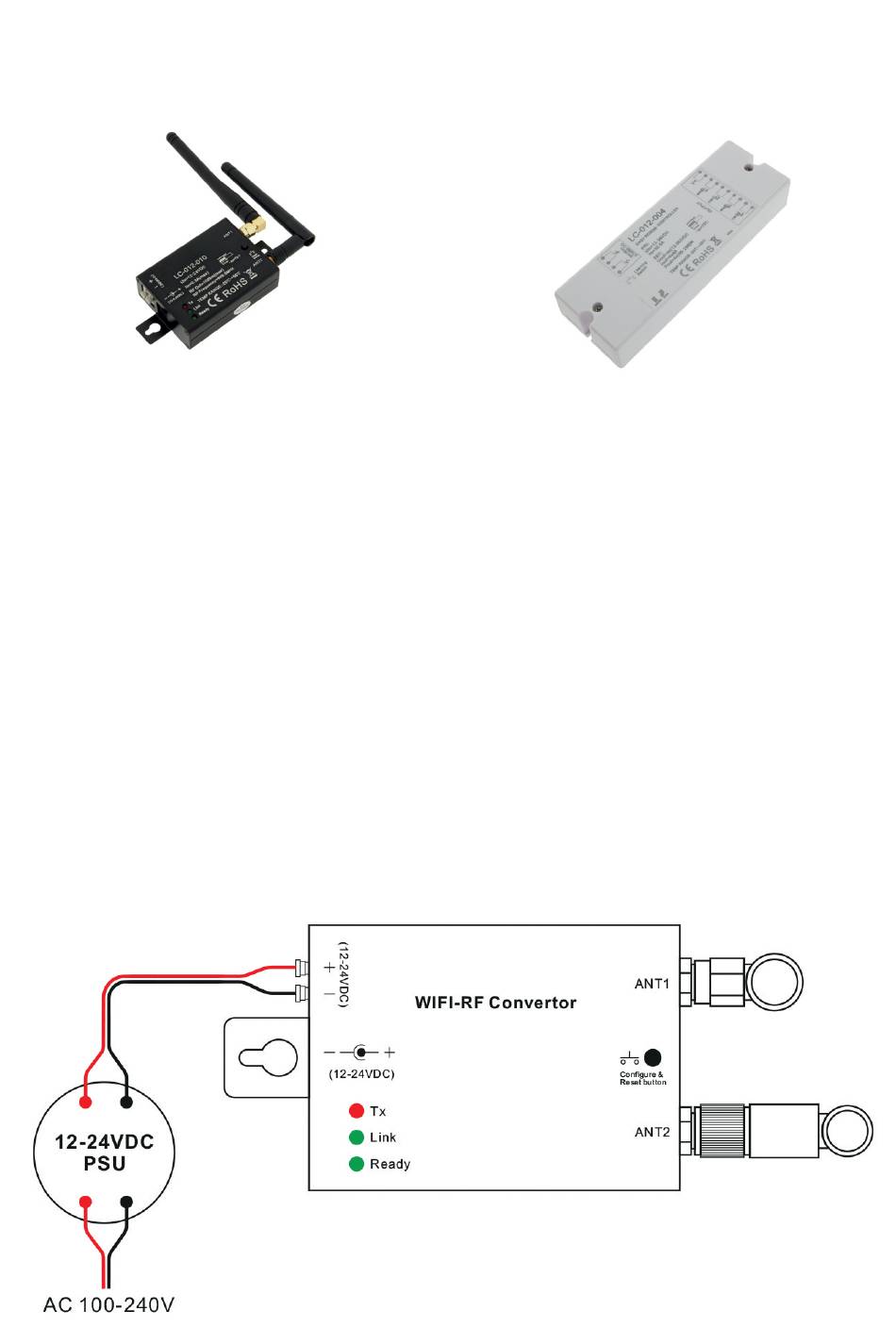

LED RF WiFi Interface - 8 Zones - User Manual
1. Product Description
The RF Wifi Interface is a Converter which works with receiver LC-012-004 to be controlled by
iOS or Android system via WiFi. With the Interface you can control upto 8 different zones.
2. Specification
2.1 Interface LC-012-010:
Operation Voltage: 12-24VDC, RF Signal, Operation Frequenz 2.4G

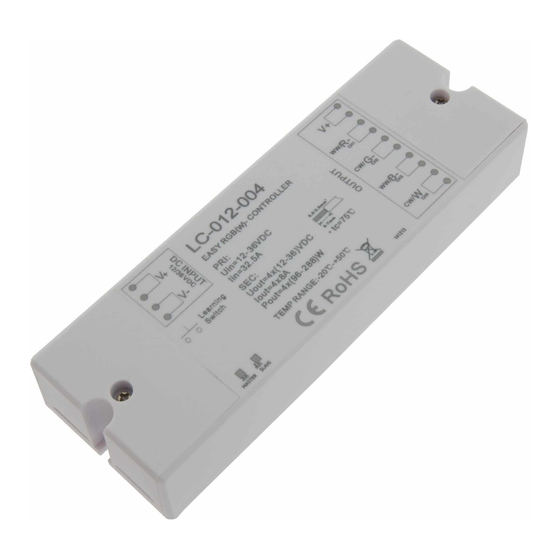

2.2 Receiver LC-012-004:
12-36VDC Operation Voltag, 4 channels x 8A, constant voltage, 4 channels x (96-192)W
3. Wiring Diagram
WiFi Interface: LC-012-010
Receiver: LC-012-004

Advertisement

loading
Need help?

Need help?

Do you have a question about the LC-012-004 and is the answer not in the manual?

Questions and answers

Related Manuals for AUTLED LC-012-004

Summary of Contents for AUTLED LC-012-004

  • Page 1 WiFi Interface: LC-012-010 Receiver: LC-012-004 1. Product Description The RF Wifi Interface is a Converter which works with receiver LC-012-004 to be controlled by iOS or Android system via WiFi. With the Interface you can control upto 8 different zones. 2. Specification 2.1 Interface LC-012-010:...
  • Page 2 4. Introduction of Buttons 6. User Manual There are three different ways to configure smart phone connect to convertor: 1. Easylink to router 2.Autolink to router 3.Directly connected to WIFI controller We just need choose any one according different situation. Three different ways to configure smart phone connect to convertor: 1.Easylink to router...
  • Page 3 1. Easylink to Router Mostly be used when convertor installing place is easy to be accessed and need to control LED lighting by own house‘s WiFi. 1. Install the App „Easylighting“ on your smartphone or tablet 2. Smartphone or Tablet connect to house‘s WiFi 3.
  • Page 4 8. Enter the password from the router and then press „OK“ Button (P6) 9. There will be a interface indicate successful, then press „OK“ 2. Autolink to Router Most popular way when need to control LED lighting by own house‘s WIFI. 1.
  • Page 5 6. Press yes, it will search all the router around automatically (P11.P12) 6. Choose router we want connect 7. Enter password and then press OK (P13.P14)
  • Page 6 3. Directly connect to WIFI controller Be used without house‘s wifi 1. Search and connect the Easylighting (WIFI controller default password 0123456789) 2. Enter easy lighting application 3. Short press setting button. 4. Press „directly connected to WiFi controller“ (P15) 5.
  • Page 7 Edit room/zone name 1. Press Edit button (P20) 2. Click the words (”bedroom” for example) 3. Delete the old name and enter a new name (zone 1 for example) 4. Press save button (P21)
  • Page 8 Change picture for the room 1. Press Edit button (P20) 2. Short press the middle of the room picture(P22) 3. Camera will be opened automatically, Take a picture and Click use photo (P23) 4. Press save button (P22) Edit color wheel for corresponding LED lighting 1.
  • Page 9 2. Cancel the mark for other three color wheels and keep one (take single color as example) (P25) 3. Press save 4. Choose this zone there will be one directly enter corresponding color wheel Learning (pairing) a) Normal learning way 1.
  • Page 10 Room Button (P27, P28) 1. Choose Room button 2. Short press middle of zone picture 3. Mark on the upper right side of room picture to indicate choose successfully, multiple rooms can be choose at same time 4. Press room button again be confirm the rooms’ selection 5.
  • Page 11 Color Wheel There will be four different color wheels we can select if we did not edit the room: RGBW, RGB, DW and Single color. 1. Slide the upper areas from top to down to choose color wheel from one to one. (P29,P30) Or fast press twice to enter the color wheel selec- tion interface to choose color wheel (P31)
  • Page 12 Pause & Run Button (P32) Running button exist in RGB, CDW color wheel interface. Press pause&run button, mode will run. Press it once, it runs one mode. Press button again, it stops, then press one more time, it will enter next mode.
  • Page 13 RGB/CDW brightness level line This button exist in RGB/CDW interface. 1. Short press the button 2. Brightness level can be adjusted from 0-255 to an accurate color. Attention Before adjust the color by color line, LED might in already in an existing color, so we need zero clearing each channel first: moving each channel in any level between 1-225, then move it back to zero, then RGB...
  • Page 14 Brightness Button Brightness button exist in RGBW, RGB and DW color wheel interface. In RGBW color wheel interface, it only adjusts R, G and B three channels brightness, and cannot adjusts W channel. We need use W button to adjust W channel brightness independently.

  • Page 15: Safety Warnings

    7. Safety warnings The product shall be installedc and serviced by a qualified person. Please avoid directly sun and rain/wet conditions. Always be sure to mount this unit in an area with proper ventilation to avoid overhaeting. Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
