LED RF Controller Mono - Single Remote - User Manual

1. Product Description

One zone controlled, but can be set endless receivers, each receiver can be controlled by 8 different

remotes. Enable be dimmed and ON/OFF by push button after connecting receivers.

2.1 Remote LC-002-022:

Operation Voltage: 3VDC Battery, RF Wireless, Frequenz 434MHz/868MHz

2.2 Receiver LC-002-010:

12-36VDC Input Powre, 4 channels x 5A, constant voltage, 4 channels x (60-120)W

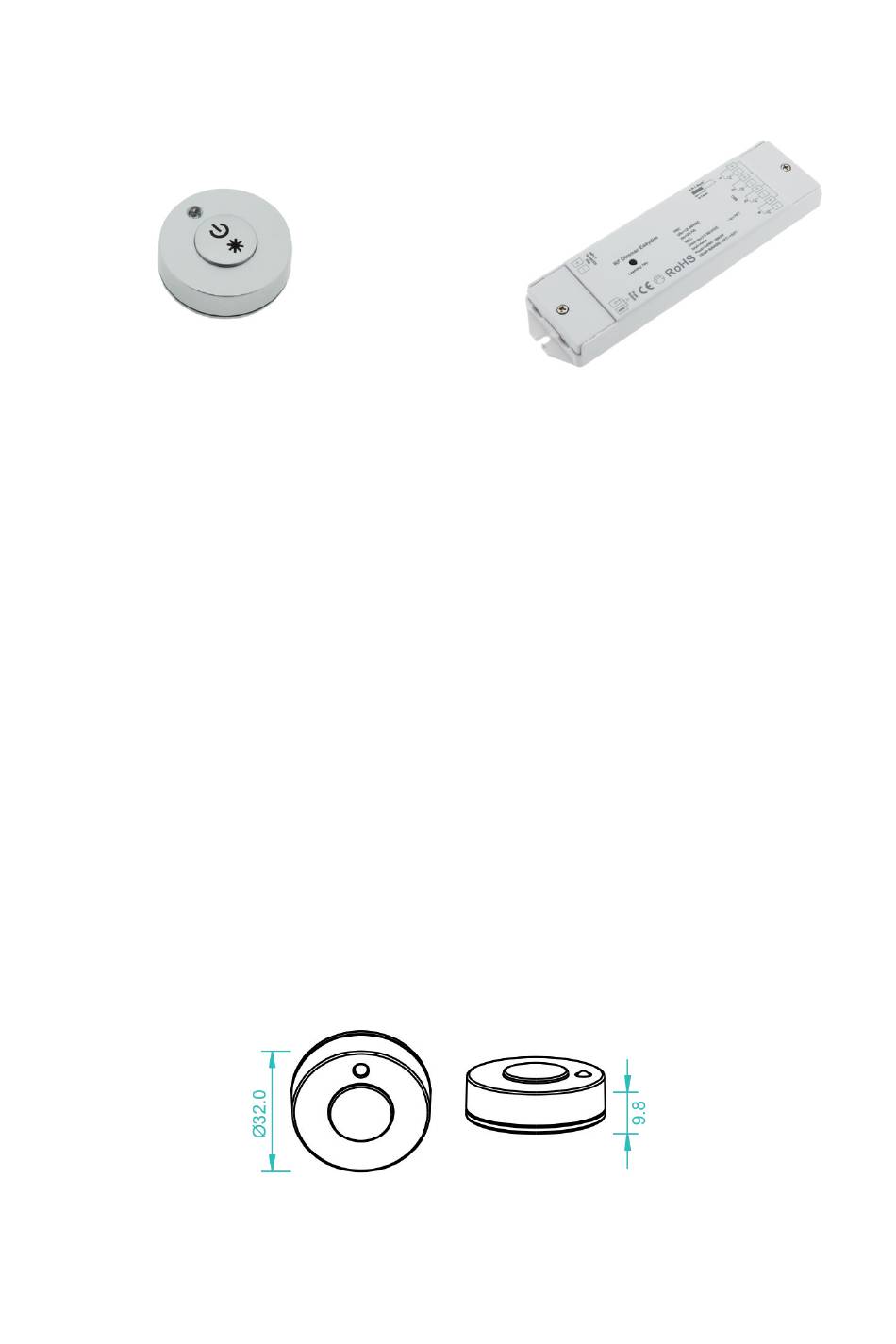

Remote: LC-002-022

Receiver: LC-002-010

Table of Contents

Do you have a question about the LC-002-022 and is the answer not in the manual?

Page 1 One zone controlled, but can be set endless receivers, each receiver can be controlled by 8 different remotes. Enable be dimmed and ON/OFF by push button after connecting receivers. 2. Specification 2.1 Remote LC-002-022: Operation Voltage: 3VDC Battery, RF Wireless, Frequenz 434MHz/868MHz 2.2 Receiver LC-002-010: 12-36VDC Input Powre, 4 channels x 5A, constant voltage, 4 channels x (60-120)W 3.
Page 2 4. Wiring Diagram short press for ON/OFF long press is dimming UP/DOWN 5. Operation Manual After you have wired all the receivers according to Figure illustration you need to do the following: 1. Pull off the plastic film cover of the battery at the back of remote. 2.
