LED RF Controller Mono - 2 Zone Push Button - User Manual

1. Product Description

The RF 2 Zone wireless push button with glass edging can be mounted on any wall or be stuck with

an adheshive pad ant any point.

2.1 Wireless Push Button LC-002-017:

supply voltage: 3VDC Battery, RF Wireless, Frequenz 434MHz/868MHz

2.2 Receiver LC-002-010:

12-36VDC Power Input, 4 Channels x 5A, constant voltage, 4 channels x (60-120)W

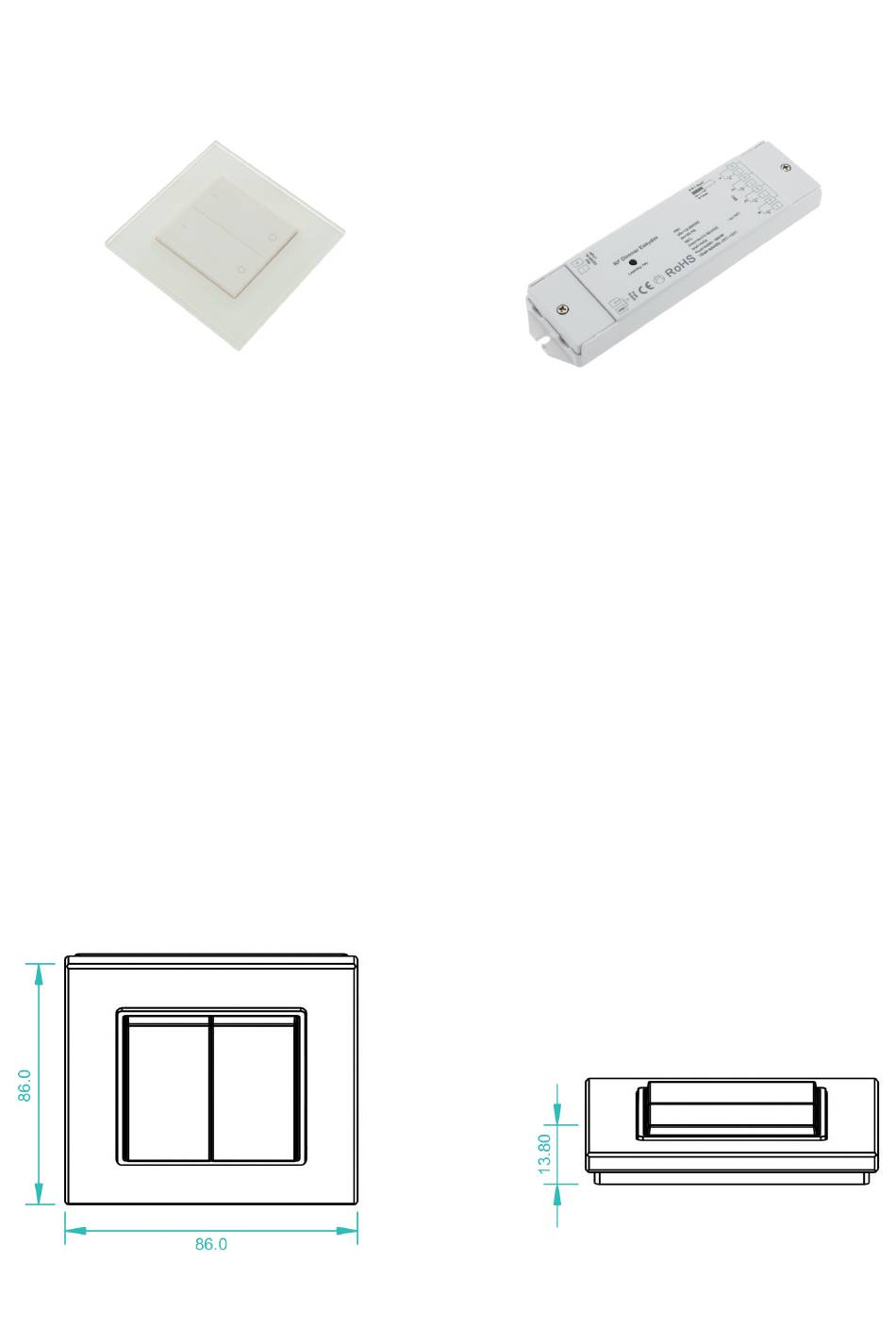

Push Button: LC-002-017

Receiver: LC-002-010

Table of Contents

Do you have a question about the LC-002-017 and is the answer not in the manual?

Page 1 The RF 2 Zone wireless push button with glass edging can be mounted on any wall or be stuck with an adheshive pad ant any point. 2. Specification 2.1 Wireless Push Button LC-002-017: supply voltage: 3VDC Battery, RF Wireless, Frequenz 434MHz/868MHz 2.2 Receiver LC-002-010: 12-36VDC Power Input, 4 Channels x 5A, constant voltage, 4 channels x (60-120)W 3.
Page 2 4. Wiring Diagram 5. Safety warnings 1. To avoid installed the product in minefield, strong magnetic field and high voltage area. 2. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause fire. 3. Please install the product in a well ventilated area to ensure appropriate temperature environment.
Page 3 6. User Manual The key part of this controller is a universal, extremely rotary standard switch element that can be integrated in numerous frames by different manufactures as below list: BEKER S1, B1, B3, B7 glass GIRA Standard55, E2, Event, Esprit JUNG A500, Aplus MERTEN M-smart, M-Arc, M-Plan 1.

Lc-002-010
