LED RF WiFi Controller Touch Mono - 4 Zones
User Manual
1. Product Description

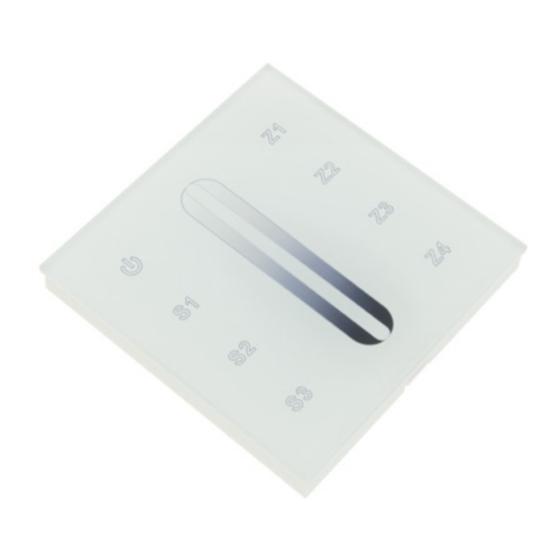

The RF wireless controller Mono is a touch panel with highly sensitive glass touch front.
The controller can control 4 different zones. The glass touch panel, it is possible to switch the
LED Mono light on,- and off and dimming via touch slider. Also it its possible, idividually or
together to save 3 deifferent lighting scenes for all zones.
2. Specifications
2.1. Controller LC-002-011:
Operation Voltage: 12-24VDC, Frequency: 434MHZ/868 MHZ
2.2 Receiver LC-012-004:
12-36VDC Input Power, 4 channels x 8A, constant voltage, 4 channels x (96-192)W
Important: With the Controller, the receiver LC-012-004 can be controlled. Thus, the receivers are
controlled by software and controller.
3. Installation

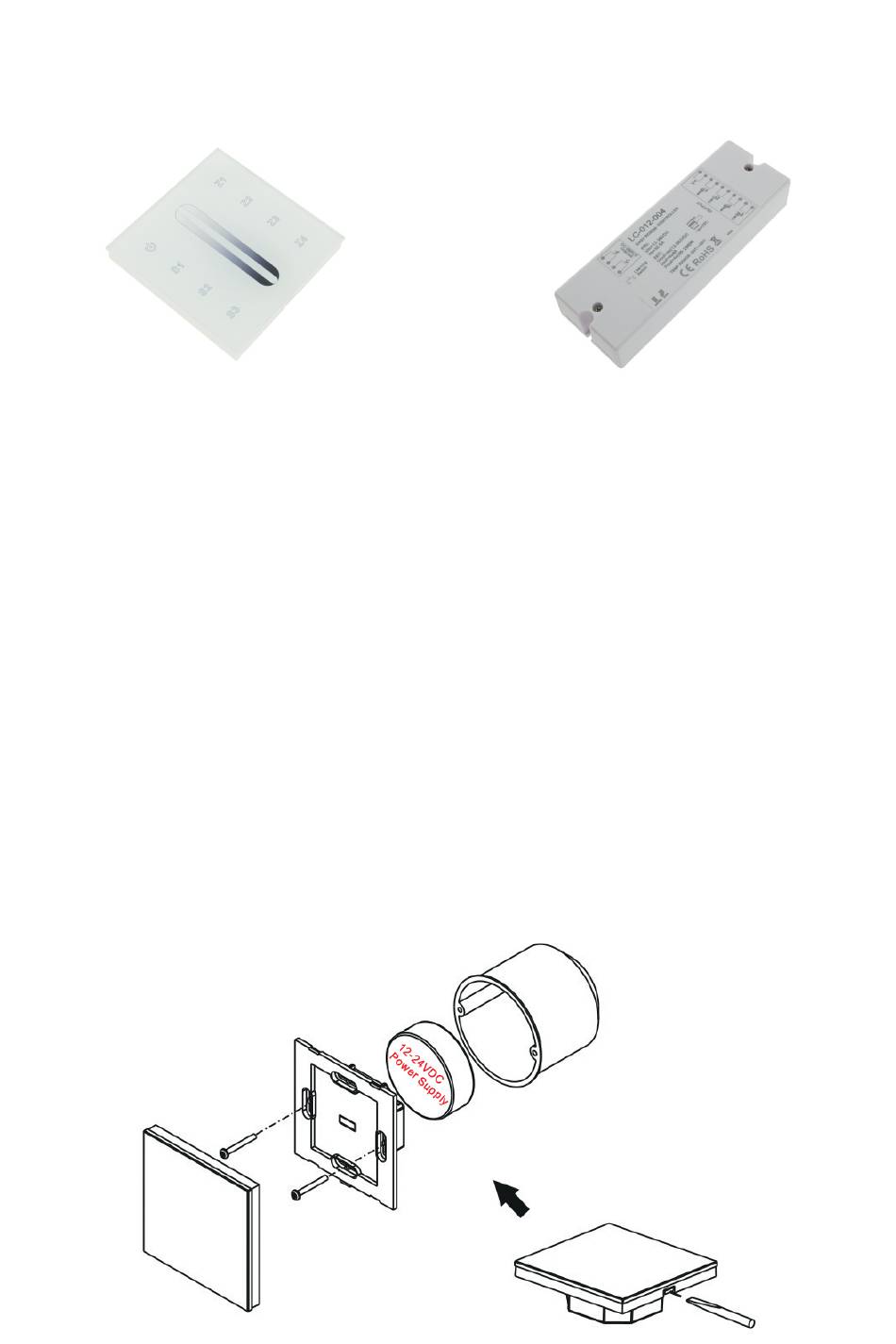

Controller: LC-012-011
Receiver: LC-012-004
