AUTLED LC-012-009 User Manual

Led rf wifi controller mono remote 4 zones

LED RF WiFi Controller Mono Remote 4 Zones - User Manual

1. Product Description

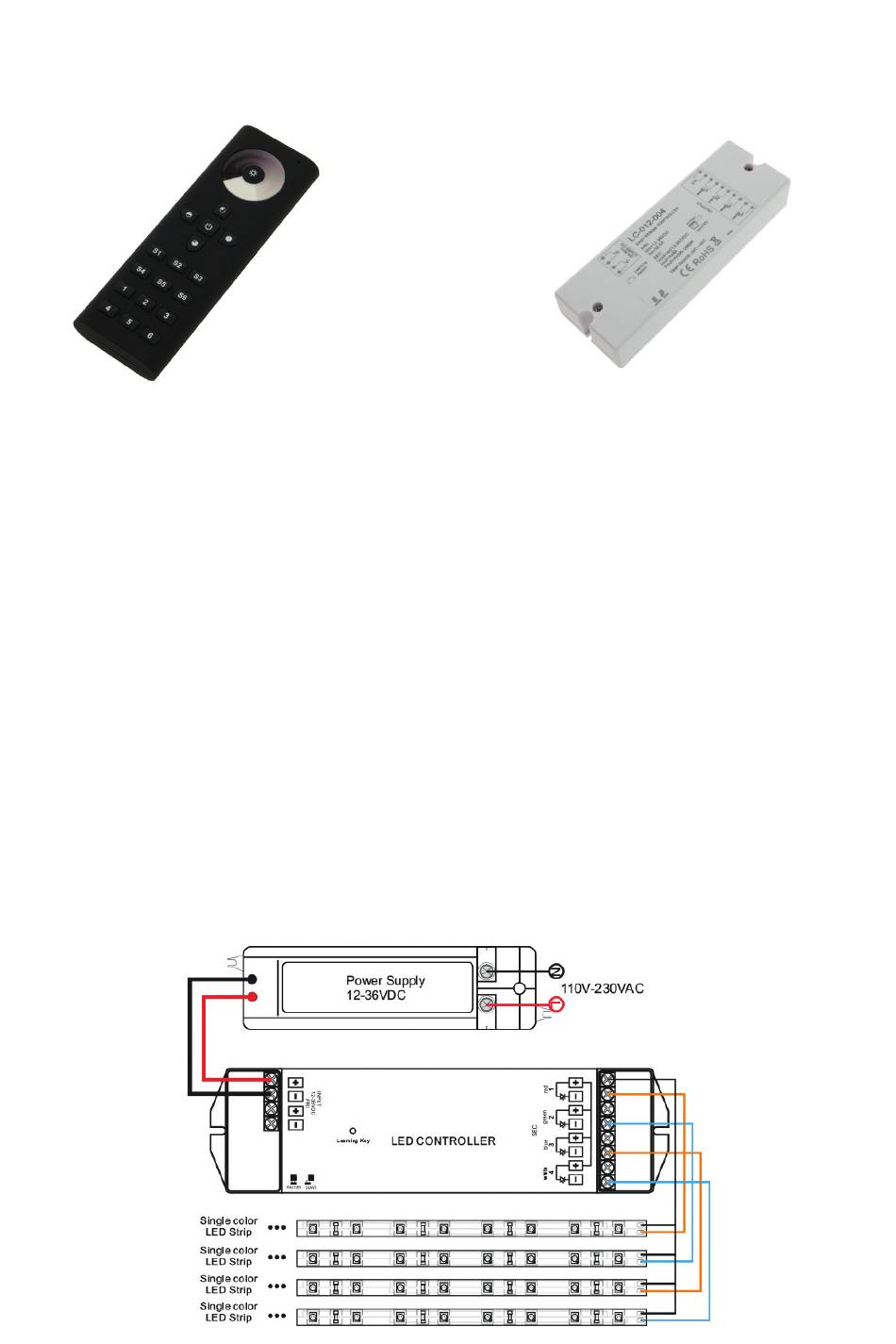

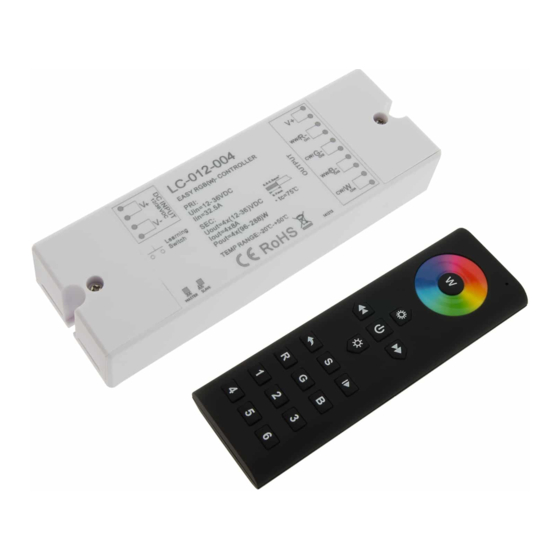

The RF WiFi Mono Remote can control 6 different zones. Each zone (Button 1-6) can store upto

6 different lighting moods. Brightness can be adjust over the brightness wheel.

2.1 Remote LC-012-009:

Operation Voltage: 4,5VDC Battery, RF Wireless, Frequenz 434MHz/869,5MHz/916,5MHz

2.2 Receiver LC-012-004:

12-36VDC Input Power, 4 channels x 8A, constant voltage, 4 channels x (96-192)W

Important: With the Remote you can control the receiver LC-012-004. Thus, the receiver can be

controlled by software and remote control.

Remote: LC-012-009

Receiver: LC-012-004

Table of Contents

Do you have a question about the LC-012-009 and is the answer not in the manual?

Page 1 The RF WiFi Mono Remote can control 6 different zones. Each zone (Button 1-6) can store upto 6 different lighting moods. Brightness can be adjust over the brightness wheel. 2. Specification 2.1 Remote LC-012-009: Operation Voltage: 4,5VDC Battery, RF Wireless, Frequenz 434MHz/869,5MHz/916,5MHz 2.2 Receiver LC-012-004: 12-36VDC Input Power, 4 channels x 8A, constant voltage, 4 channels x (96-192)W Important: With the Remote you can control the receiver LC-012-004.
Page 2 4. Introduction of Buttons Indicator Dimming Button Brightness wheel 25% Brightness ON/OFF for all zones 50% Brightness 100% Brightness 75% Brightness Save Buttons Zone Buttons 5. Operation Instructions 1. Do wiring according to connection diagram 2. Pairing of Remote and Receiver: a.
Page 3 4. brightness up/down button Long press brightness button to dim down/up the brightness, the dimming direction will change every time after pressing switch. For example, the first long press is brigthness up, it will be dimmed down when long press again. 5.
