LED RF Controller Mono - User Manual

1. Product Description

The RF Controller Mono is a wall rotary RF dimer with 256 levels logarithmic dimming from

1-100%. simple and friendly use for diming and switching ON/OFF for 1 zone.

2.1. Controller LC-002-012:

input power: 3VDC Cr2032 & Cr2025 Battery,

PWM frequency: 434MHZ / 868 MHZ

2.2. Receiver LC-002-010:

12-24VDC input power, 4 channels x 5A, constant voltage, 4 channels x (60-120)W

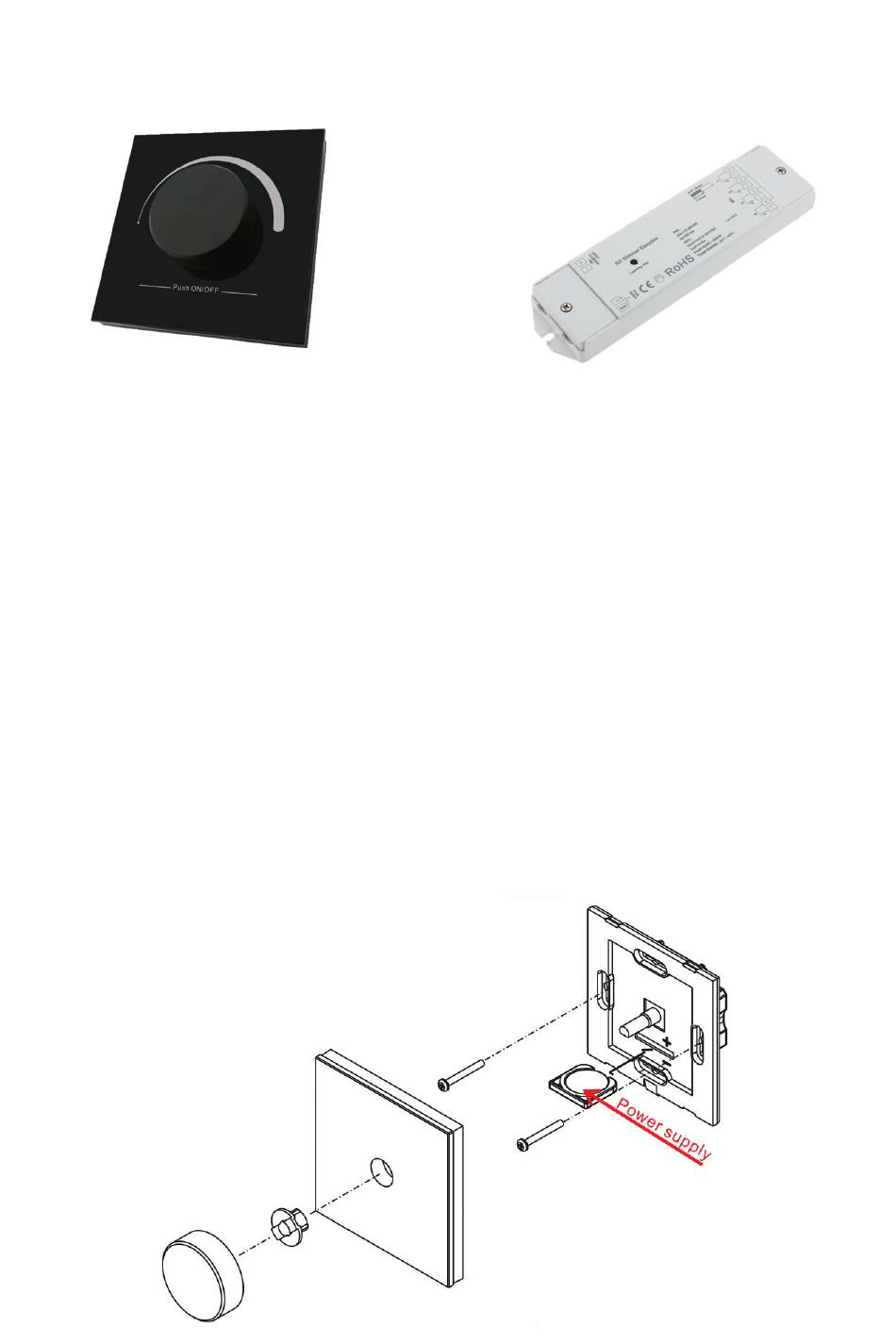

Controller: LC-002-012

Receiver: LC-002-010

Table of Contents

Do you have a question about the LC-002-012 and is the answer not in the manual?

Page 1 The RF Controller Mono is a wall rotary RF dimer with 256 levels logarithmic dimming from 1-100%. simple and friendly use for diming and switching ON/OFF for 1 zone. 2. Specification 2.1. Controller LC-002-012: input power: 3VDC Cr2032 & Cr2025 Battery, PWM frequency: 434MHZ / 868 MHZ 2.2.
Page 2 4. Wiring Diagram 5. Instructions Pls connect as per point 4. Connection Diagram the LED lights on the receiver, insert the battery in the receiver and then connect controller and receiver. 5.1. Press the Learning Key-Button on the receiver, and thereafter press the rotary button on the controller.

Lc-002-010
