LED RF Controller RGB Set - User Manual

1. Product Introduction

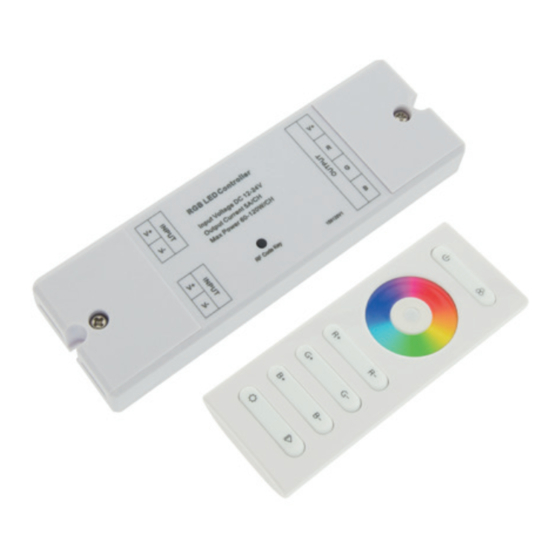

The remote and it's receiver is a one zone RF wireless RGB Controller. The Controller can also
work with data repeater to expand output unlimitedly.

2. Performance Parameter

Remote:
Operation Voltage
Operation Frequency
Dimensions (L x W x H)
Operation mode:
Receiver:
Input Voltage
Max. Output Power
Dimensions (L x W x H)
Weight

3. Features

1. Power on and power off
2. Activate a desired colour by the colour wheel
3. Activation of fixed-stored colour gradients
4. Activation of 3 fixed stored RGB white colours
5. Dimming of desired colours and colour gradients
6. Speed changing and freeze of colour gradients
7. Switch on/off and dimming of the 3 channels RGB
Item No.: LC-002-060
3x 1,5 VDC Batteries
434MHz/868MHz
120x 47,9 x 17,6mm
RF Wireless
DC12V-DC24VDC, constant voltage
3 x 5A (180W/12V) or (360W/24V)
144 x 46 x 17mm
75g

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-002-060 and is the answer not in the manual?

Questions and answers

Related Manuals for AUTLED LC-002-060

Summary of Contents for AUTLED LC-002-060

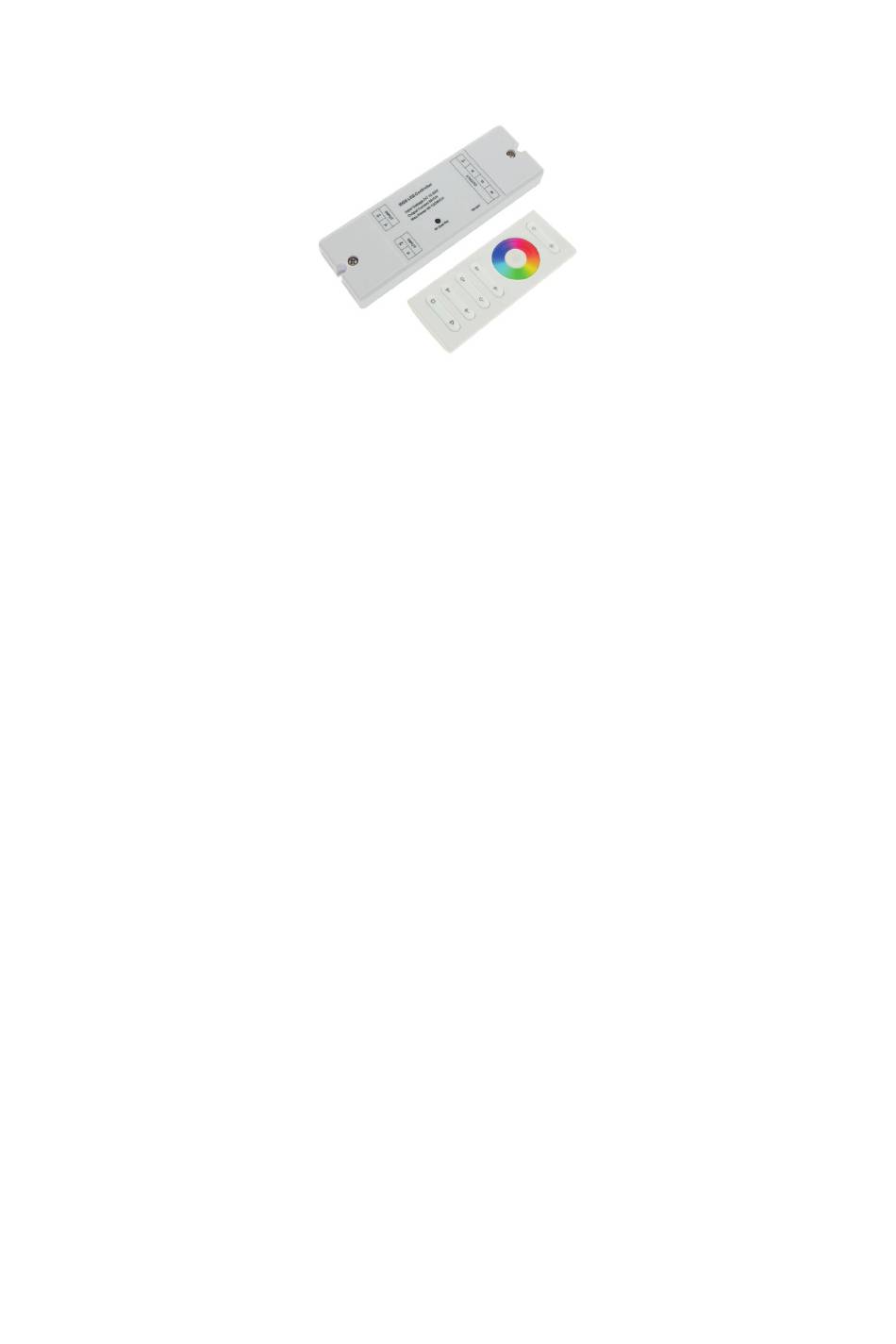

  • Page 1 LED RF Controller RGB Set - User Manual Item No.: LC-002-060 1. Product Introduction The remote and it‘s receiver is a one zone RF wireless RGB Controller. The Controller can also work with data repeater to expand output unlimitedly. 2. Performance Parameter...
  • Page 2 4. Operation Manual 4.1.Connection of Remote with the Receiver: a) Do wiring according to connection diagram b) Wake up the remote control by touching ON/OFF button. c) Press the „RF Code Key“ Button on the Receiver. d) Touch the control wheel on the remote. e) Connected LED light will blink to confirm matching successfully.
  • Page 3 6. Conjuction Diagram 7. Remarks 7.1. Power source must be DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of total, so please select at least 20% higher output power supply than the consumption of LED lights.
