AUTLED LC-002-014 User Manual

Led rf controller mono- 4 channel remote

LED RF Controller Mono - 4 Channel Remote

1. Product Introduction

The RF Controller Mono 4 Channel Remote and its receiver is a RF Wireless LED Dimmer.

With the remote you can individually control 4 channels independently.

2.1 Remote LC-002-014:

Operation Voltage: 3VDC Battery, Operation Frequency: 434MHZ / 868 MHZ

2.2 Receiver LC-002-010:

12-36VDC Input Voltage, 4 channels x 5A, constant voltage, 4 channels x (60-120)W

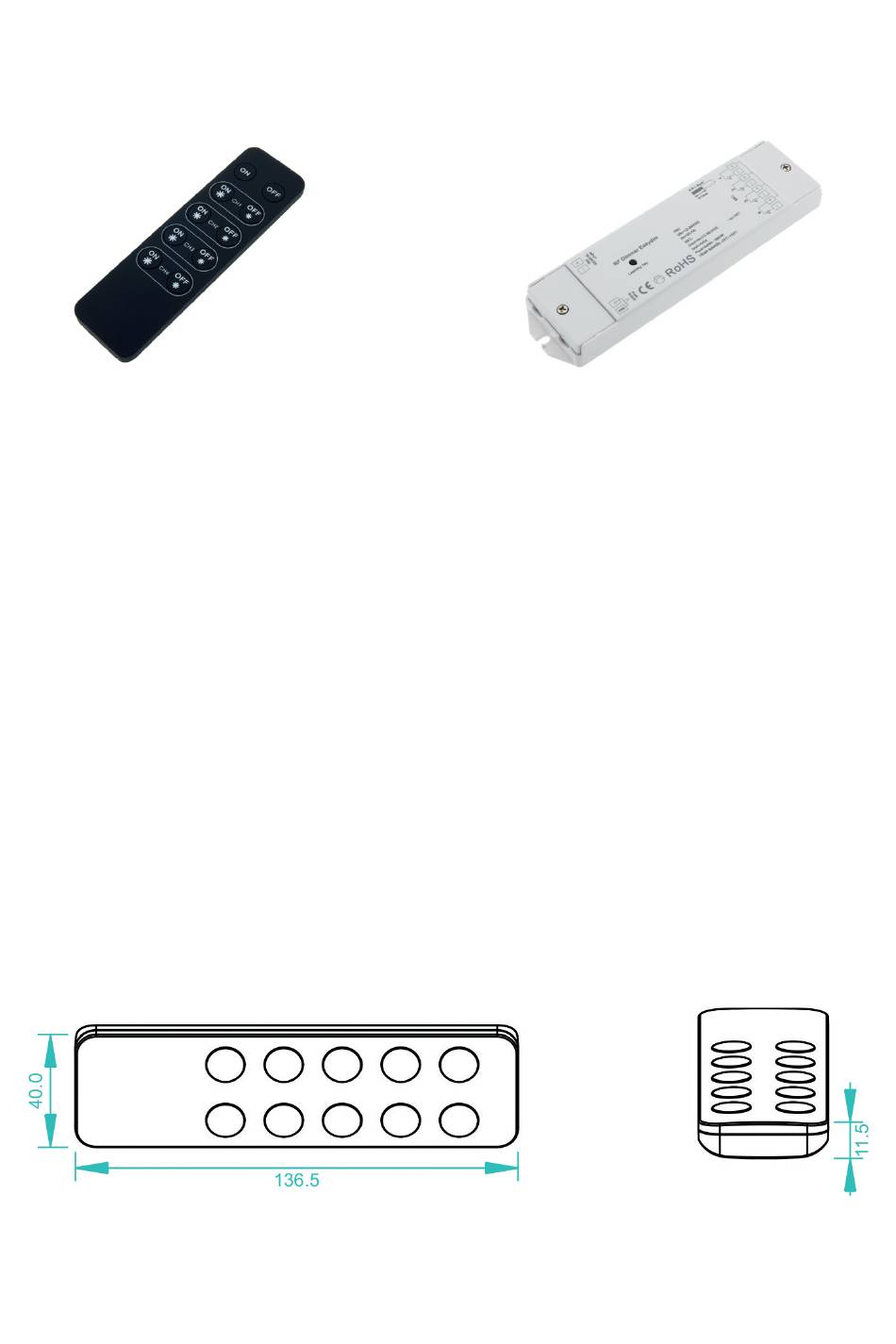

Remote: LC-002-014

Receiver: LC-002-010

Table of Contents

Do you have a question about the LC-002-014 and is the answer not in the manual?

Page 1 The RF Controller Mono 4 Channel Remote and its receiver is a RF Wireless LED Dimmer. With the remote you can individually control 4 channels independently. 2. Parameter 2.1 Remote LC-002-014: Operation Voltage: 3VDC Battery, Operation Frequency: 434MHZ / 868 MHZ 2.2 Receiver LC-002-010: 12-36VDC Input Voltage, 4 channels x 5A, constant voltage, 4 channels x (60-120)W 3.
Page 2 4. Wiring Diagram Receiver Connection Diagram for Single Unit Channel 1 Channel 2 Channel 3 Channel 4 Receiver Connection Diagram for Multiple Units Channel 1 Channel 2 Channel 3 Channel 4 Channel 1 Channel 2 Channel 3 Channel 4 ON/OFF Button to turn on/off a.
Page 3 5. Operation After you have wired all the receivers according to figure illustration you need to do the following: 5.1. Pull off the plastic film cover of the battery at the back of remote. 5.2. To pair remote and receiver pls do as follows: short press the learning key on the receiver, then immediately short press the ON or OFF-Button.

Lc-002-010
