AUTLED LC-006-001 User Manual

LED DMX & PWM Controller RGB - User Manual

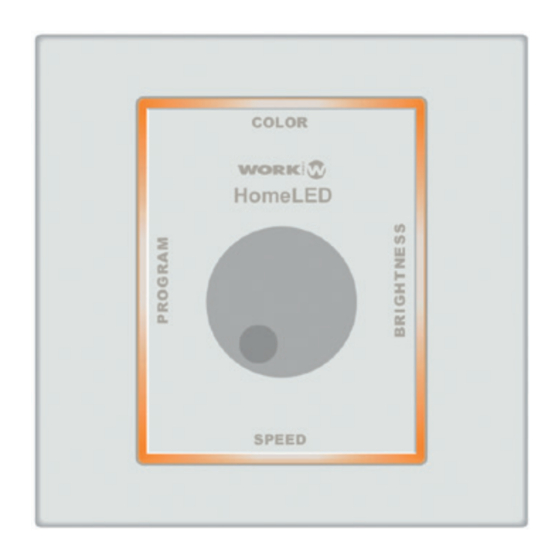

1. Product Description

The controller is a simple LED controller sending DMX 512 signals and PWM signals. Thus, LEDs can

be driven directly or via DMX. The controller have color selection, brightness of color graduation rate

and the selection of predefined gradients to be set. The controller is suitable for any RGB LED light.

Mounting on delivered surface mount box.

Power Rating Controller

Output Signal

Product Dimensions (L x W x H in mm)

Weight

1. On/Off Switch

Press the toggle and hold it down for about 3 seconds, the output will be turned off.

Rotating the toggle or pressing the toggle once resumes the output setting.

2. USITT DMX-512 Standard Signal

3. Built-in 10 patterns to control RGB fixtures, Assignable fade settin in Automode

4. Manually adjust RGB color saturation in Manual Mode

5. RGB indicator on the panel to view on the output state in a realtime

Two Modes as follows:

6a. AUTO MODE

Choosing PROGRAM menu will activate AUTOMODE automatically.

In this mode, the brightness and speed can be adjusted.

6b. MANUEL MODE

Select COLOR menu, totate the toggle to activate the manual mode and adjust the color manually

*via DMX-512: red color (1st channel), green color (2nd channel), blue color (3rd channel)

Item no.: LC-006-001

3x2A (72W/12V) od. (144w/24V)

DMX512

L 86 x W 86 x H 24 mm

75 g

Table of Contents

Do you have a question about the LC-006-001 and is the answer not in the manual?

Page 1 LED DMX & PWM Controller RGB - User Manual Item no.: LC-006-001 1. Product Description The controller is a simple LED controller sending DMX 512 signals and PWM signals. Thus, LEDs can be driven directly or via DMX. The controller have color selection, brightness of color graduation rate and the selection of predefined gradients to be set.
Page 2 Four Menus as follows: Pressing the toggle once will activate one menu. The indicated LED of chosen menu displays the fixed color while the colors of the other three sides vary with the variety of output values. Menu PROGRAM: 1. Rotate the toogle to the Menu PROGRAM and press the toggle short. 2.
Page 3 4. Dimension 5. Conjunction Diagram 5a. Connection example directly to control LED Line via PWM Signal: (Master/Slave): 5b. Connection example via DMX Signal:...
Page 4 6. Safety Warnings: 1. To avoid installed the product in minefield, strong magnetic field and high voltage area. 2. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause fire. 3. Please install the product in a well ventilated area to ensure appropriate temperature environment.
