LED RF Controller Mono - User Manual
1. Product Description

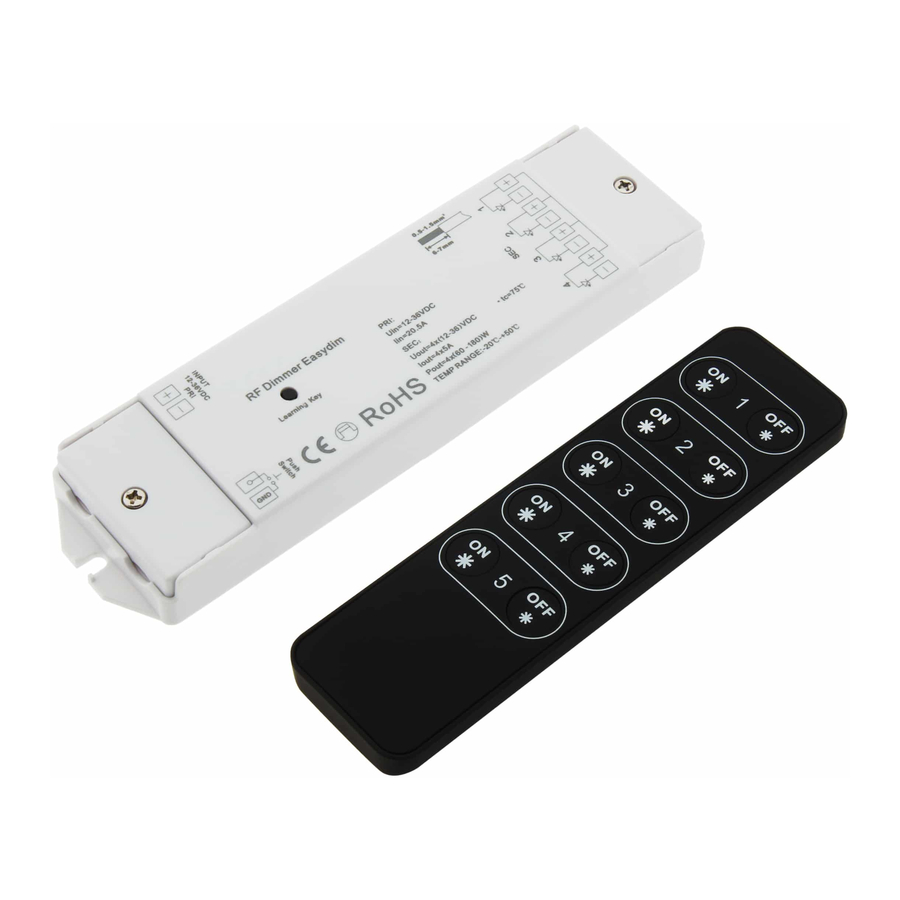

The LED RF Controller Mono is for on/off and dimming of Mono-LED's. Connection with various
remote controls are possible and it can multiple recipients simultaneously controlled with the
remote control. In addition, the controller can be controlled by standard switch push button.
2. Specification
input power
max. output power
PWM frequency
max. wire cross-section
Dimensions (L x W x H) in mm
weight
3. Description
1. Compatible with various remote controls for mono applications
2. Push / Dim function possible with a simple connection of a standard pushbutton
3. Each Receiver can be controlled by max. 8 different remotes
Artikel Nr.: LC-002-010
12-24VDC
4x5A (240W/12V) oder (480W/24V)
1500Hz
1,5 mm2
178 x 46 x 19 mm
100g
Advertisement
Table of Contents
Related Manuals for AUTLED LC-002-010
Summary of Contents for AUTLED LC-002-010

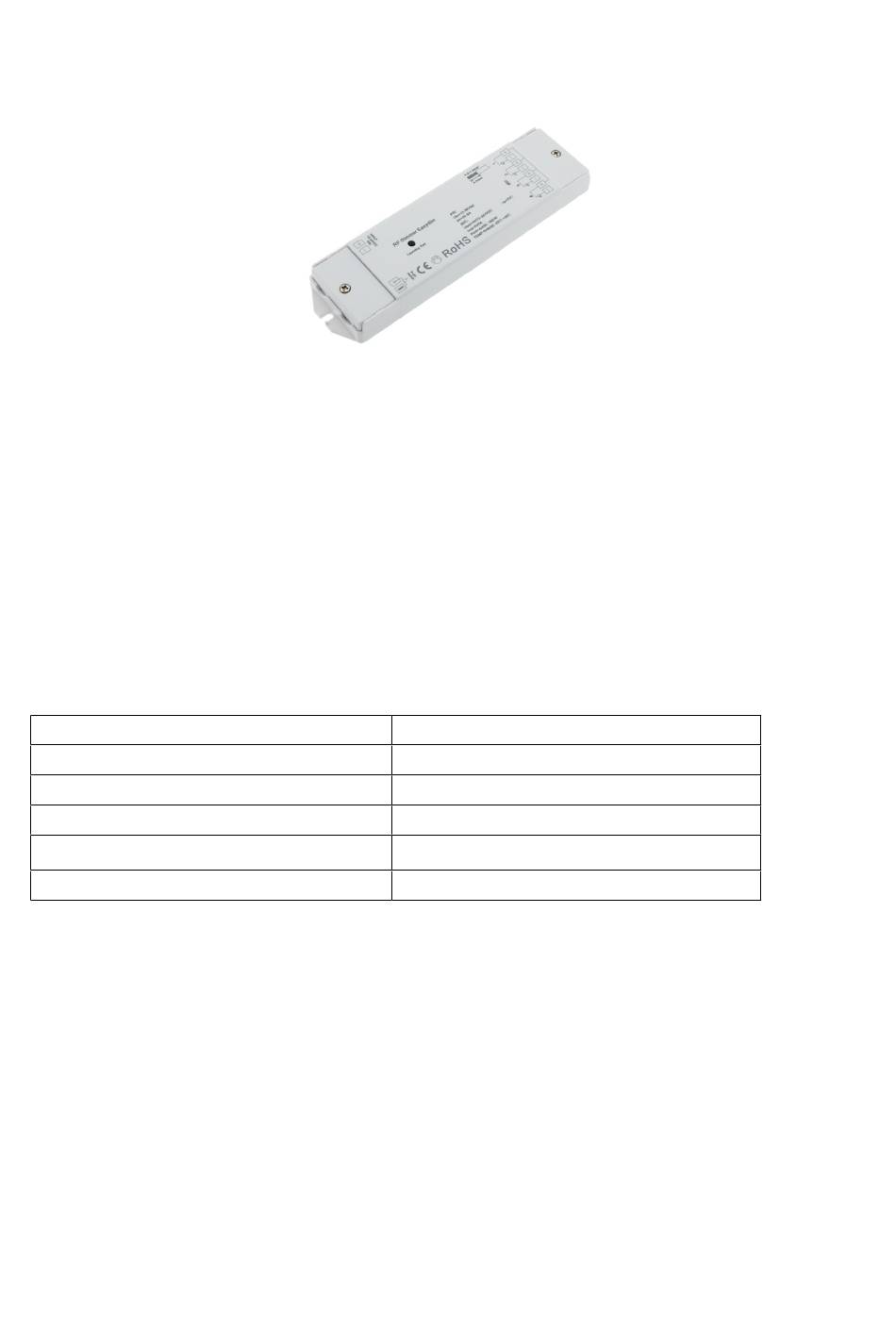

- Page 1 LED RF Controller Mono - User Manual Artikel Nr.: LC-002-010 1. Product Description The LED RF Controller Mono is for on/off and dimming of Mono-LED‘s. Connection with various remote controls are possible and it can multiple recipients simultaneously controlled with the remote control.
- Page 2 4. Dimensions 5. Connection and Button Introduction Learning Key Button Power Input 12/24VDC Connection for single color LED Connection Push/Switch Do wiring according to connection diagram: 1. Short press on the learning key on receiver is when you pair with a remote and short press of On/Off of the connecting remote.
- Page 3 LED RF Controller Mono - CH3– Empfänger | Receiver PUSH TASTER Output: max. 4x5A BUTTON LC-002-010 CH4– – LED Flexstrip MONO | max. 5m – LED RF Controller Mono LED RF Controller Mono LED RF Controller Mono LED RF Controller Mono LED Flexstrip MONO | max.
